MK Fork Hook Forklift Lifting Attachment

Description

Product Overview

The MK Fork Hook (internationally specified in warehouse logistics as the Forklift Lifting Attachment, and imported across Latin American industrial nodes as Gancho para montacargas) is an engineered material handling solution designed to instantly expand the utility of standard warehouse machinery. This heavy-duty steel sleeve slip-on accessory converts a standard forklift into a mobile crane in seconds, allowing logistics teams, manufacturing plants, and rigging shops to perform overhead suspended lifts without investing in dedicated crane fleets.

Built with thick-walled structural steel and finished with a high-visibility corrosion-resistant coating, the MK forklift crane adapter slips directly onto the forklift tines. The unit features an adjustable mounting position along the length of the fork, enabling operators to modify the load center and balance point based on specific cargo configurations. Each attachment comes fully integrated with a heavy-duty drop-forged swivel hook with safety latch, ensuring full $360^{\circ}$ rotational freedom during suspended transit while strictly preventing accidental sling slippage.

 Technical Engineering & Secure Structural Mounting

Operating a heavy duty fork hoisting attachment in dense factory bays requires uncompromising mechanical stability. The MK product line achieves structural security through rigid hardware standards:

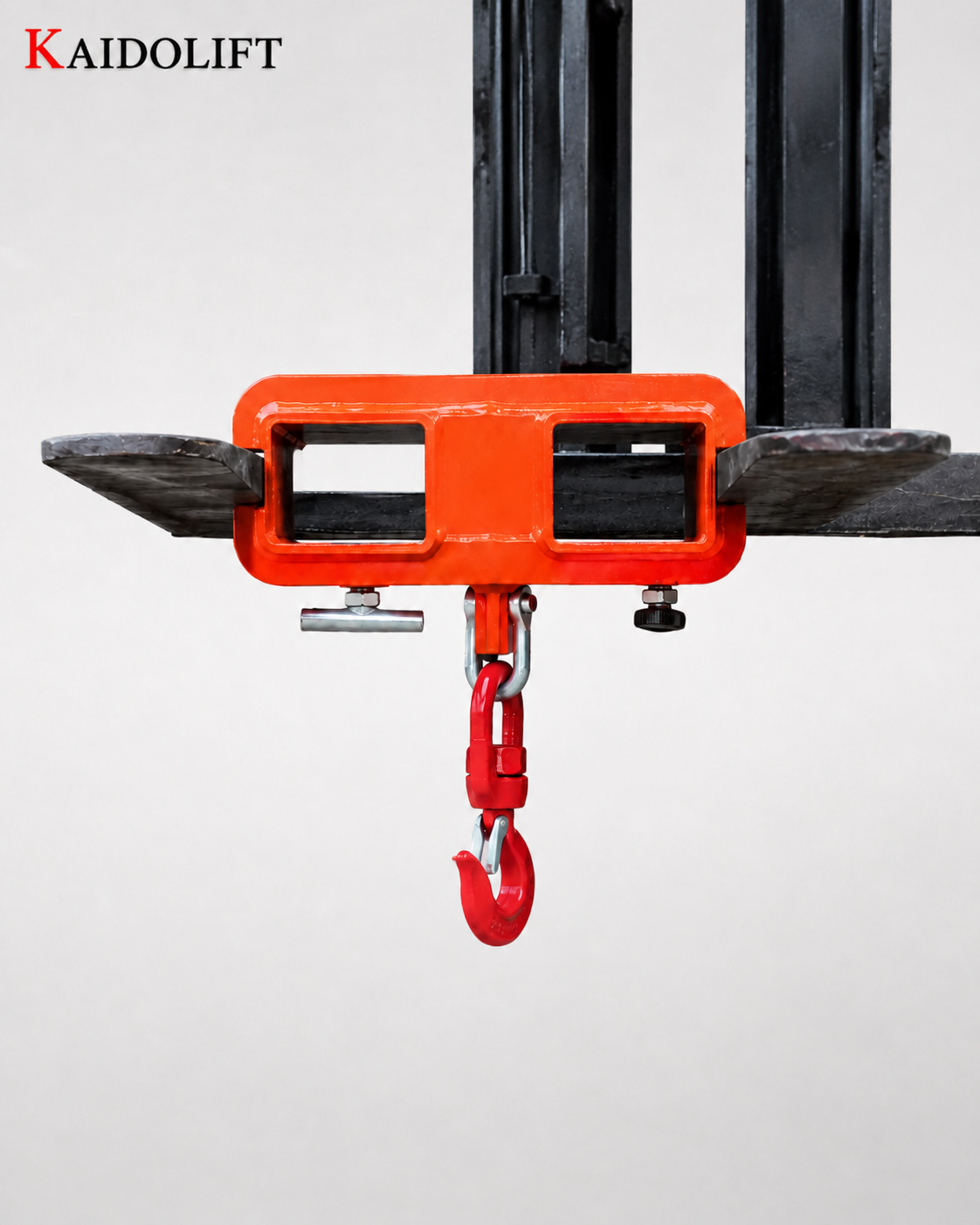

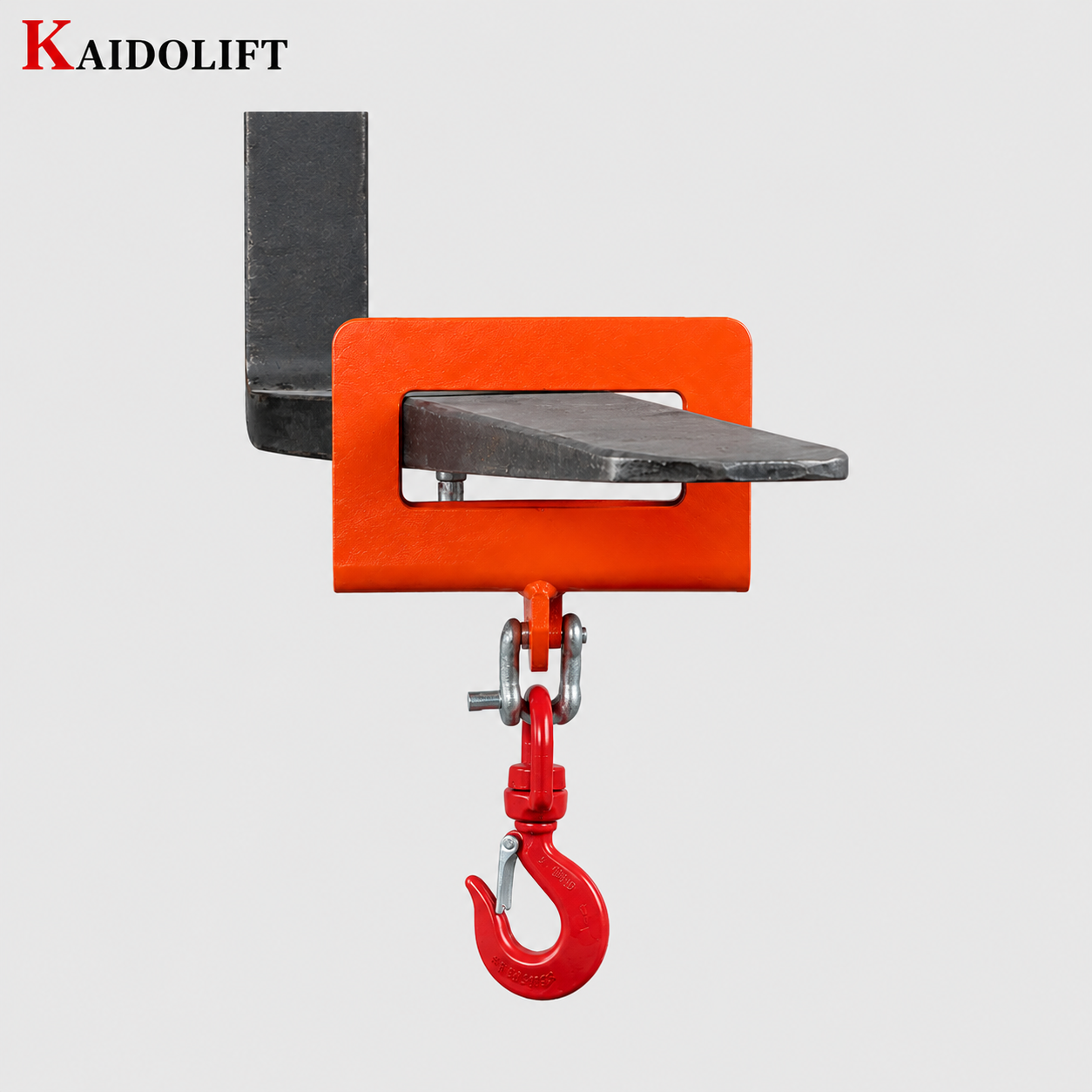

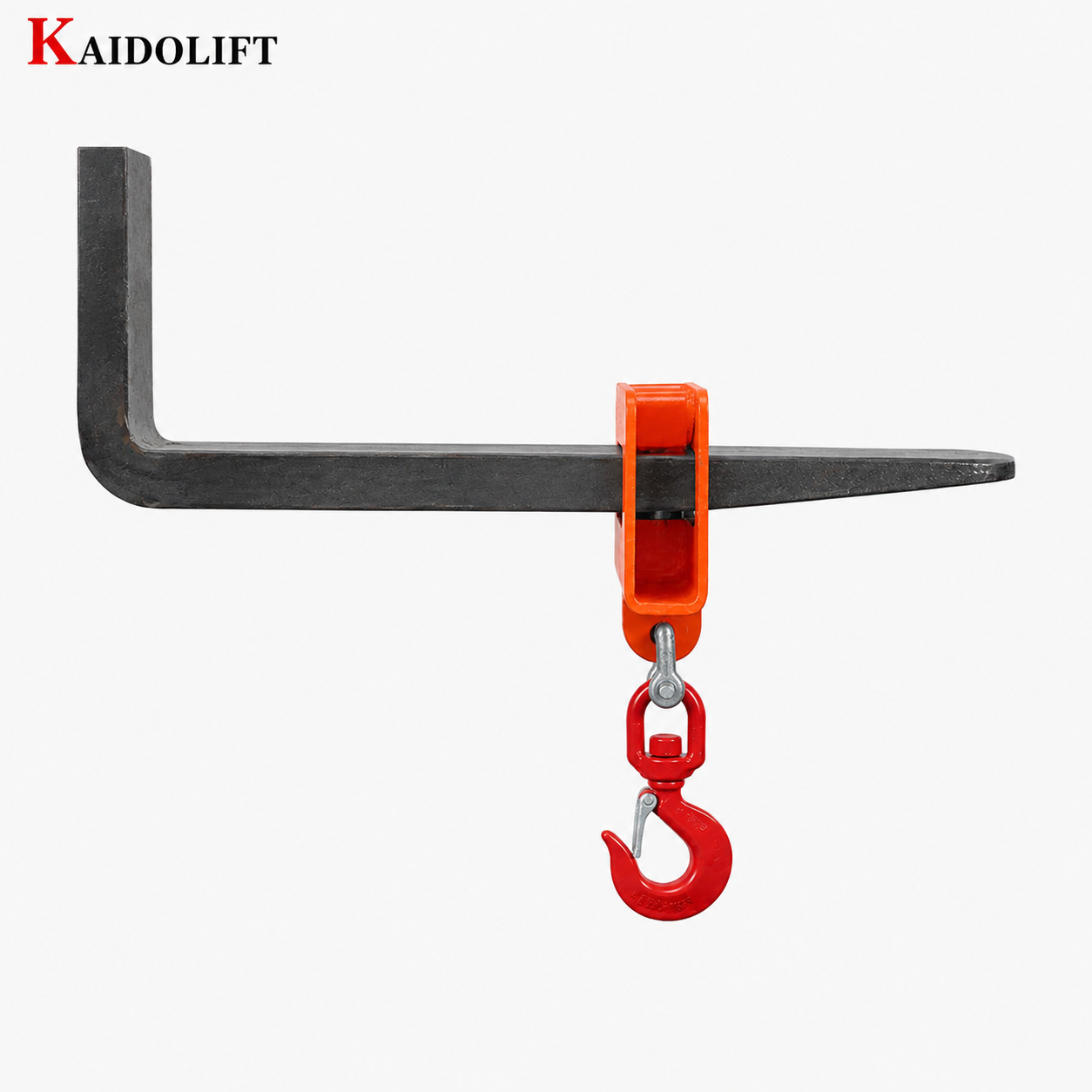

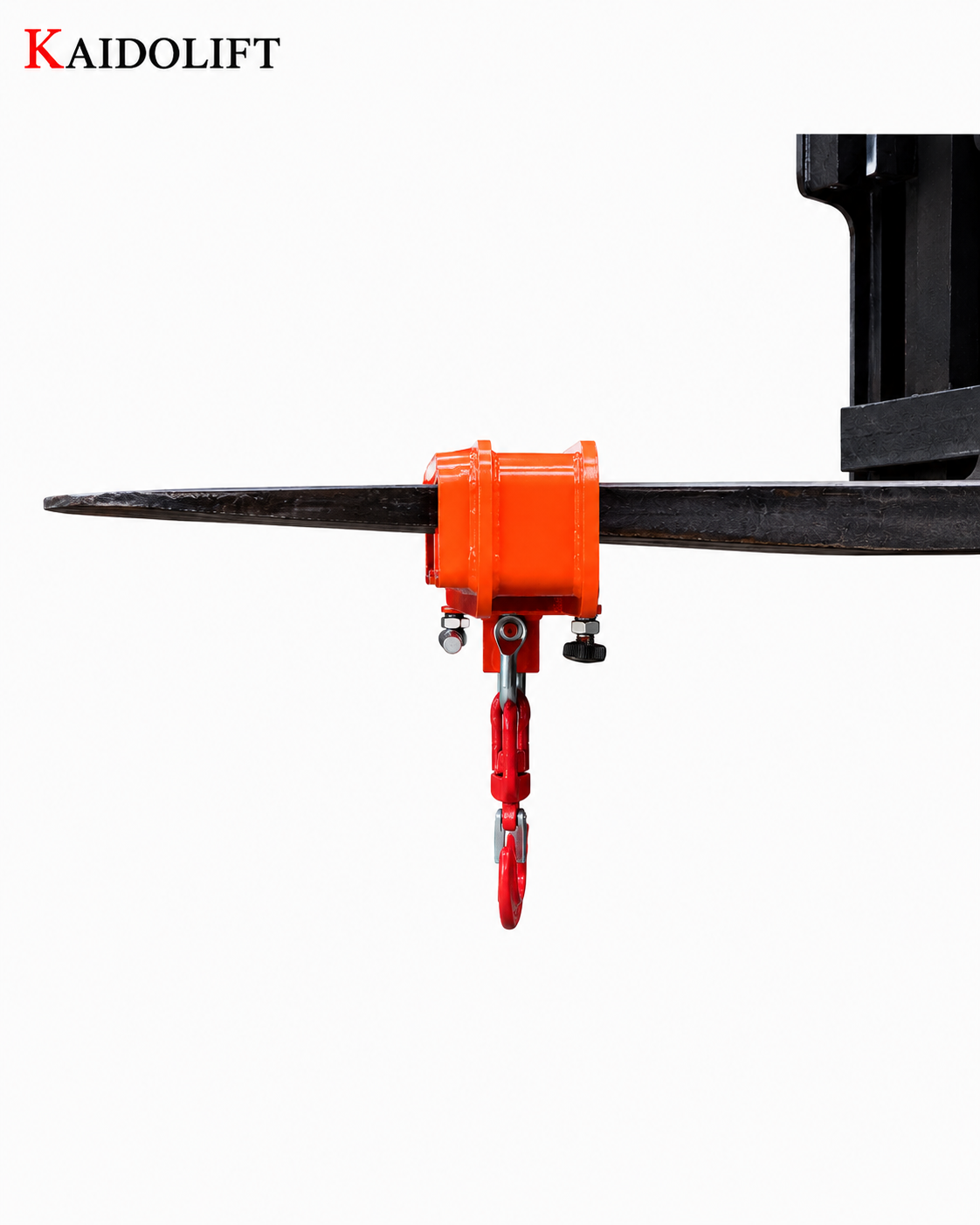

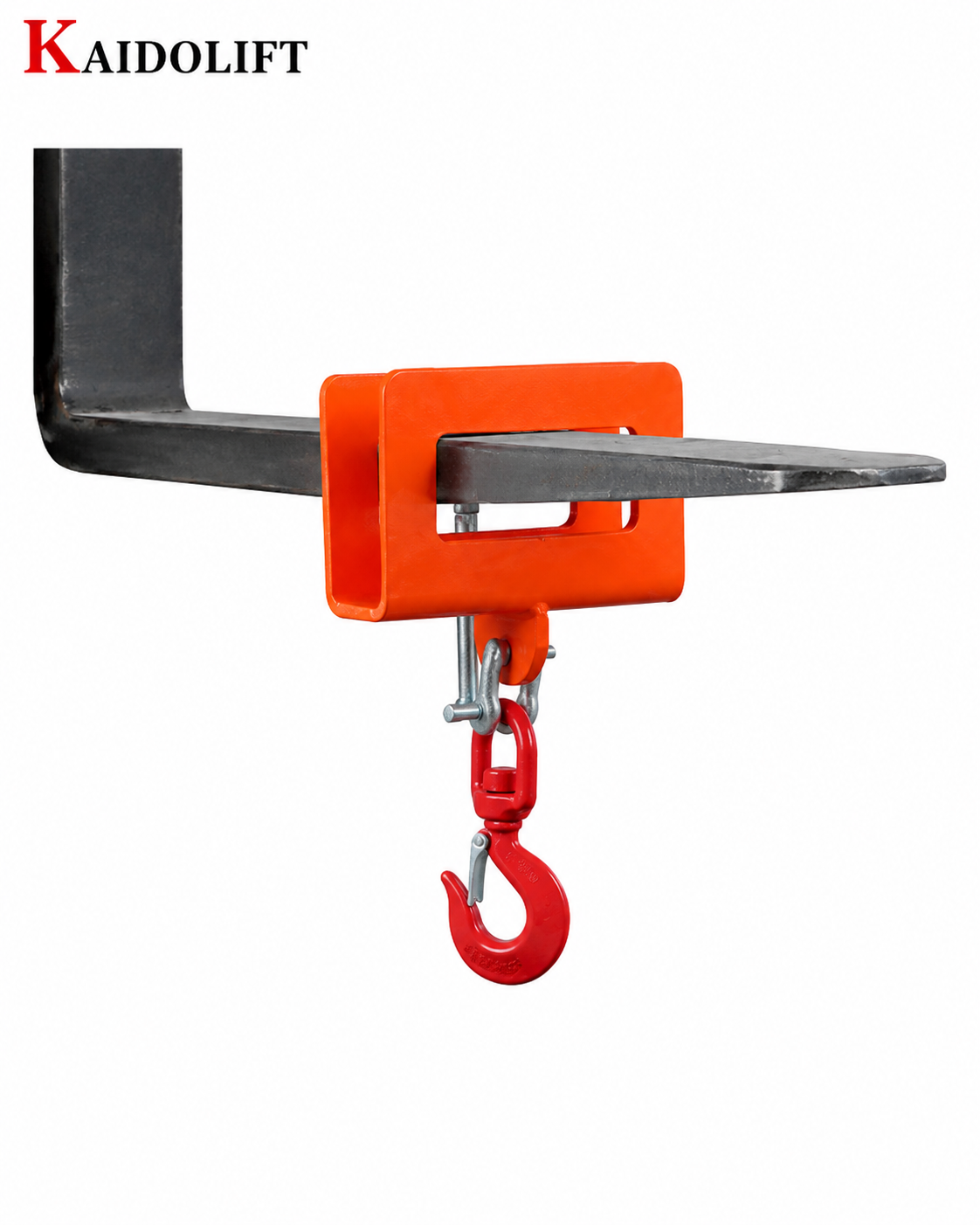

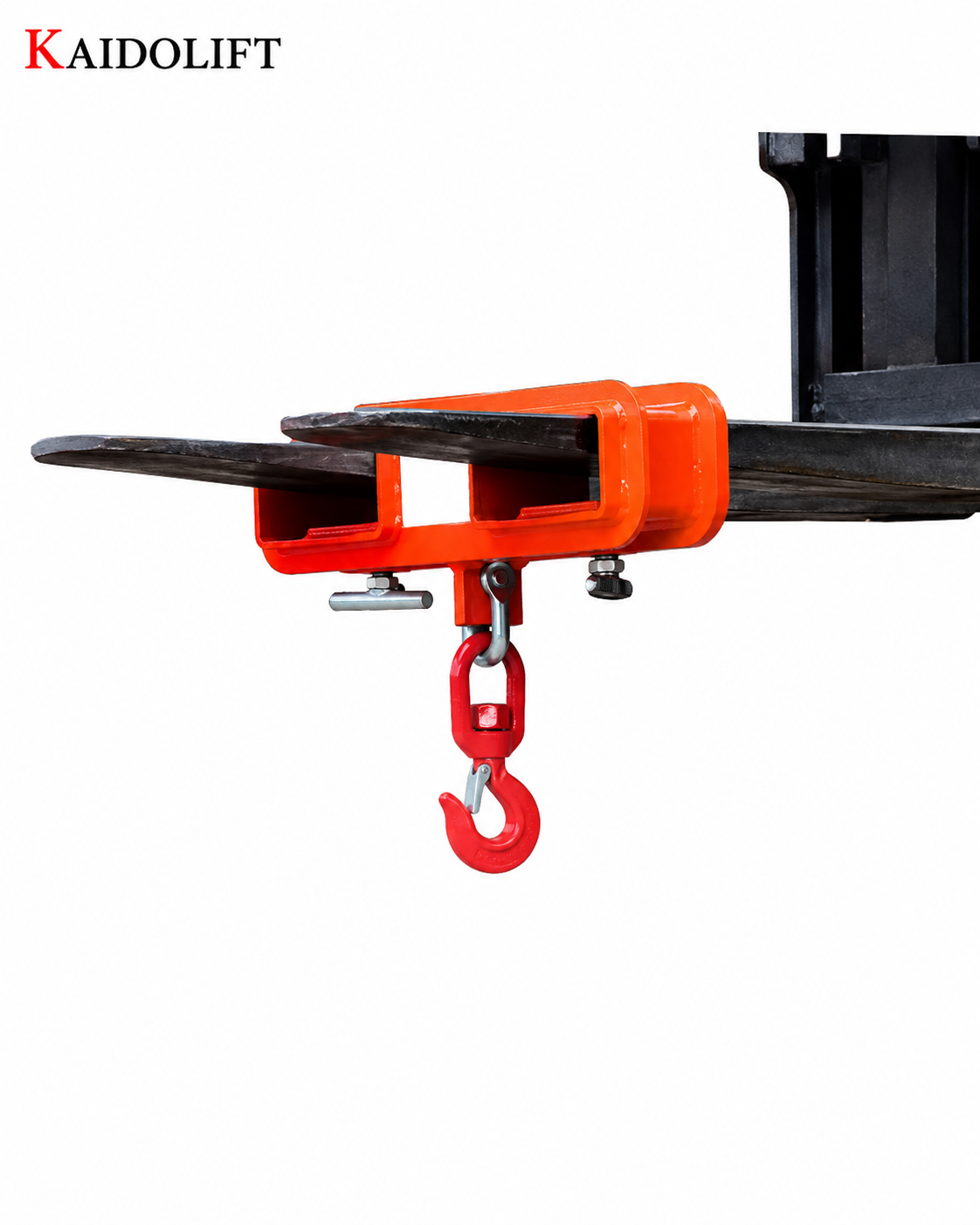

• Dual-Pocket and Single-Pocket Modality: Depending on the capacity rating, the design optimizes load distribution. Compact setups (MK5) utilize an ultra-efficient single-tine sleeve configuration, while intermediate to heavy-duty variants (MK10 through MK50) leverage a dual-pocket tine cross-beam matrix to balance the immense bending moments generated during max-load hauling.

• Mechanical Thumb Screw Retention: To prevent the attachment from sliding off the tines when accelerating, braking, or operating on inclined ramps, each sleeve is configured with a high-torque mechanical thumb screw clamping assembly. This creates a secured connect to forks by thumb screw friction, locking the heavy steel housing firmly onto the underlying blade steel.

• $360^{\circ}$ Load Management: The heavy industrial hoist shackle connected to the lower chassis houses a premium swivel hook with safety latch. This allows heavy machinery components, rigging straps, and wire rope slings to self-align dynamically during transport, avoiding dangerous torsional strain on the forklift mast.

Technical Specifications & Parameter Matrix

Certified engineering boundaries, physical tine pocket limits, and deadweight scaling metrics for the complete Fork Hook fleet:

B2B Procurement Note: The fork pocket dimensional layouts shown above (e.g., $160 \times 60$ mm for MK5 or 90 * 70 mm inner apertures) represent standard global steel fork profile clearances. Fleet procurement managers must verify their existing forklift tine width and thickness parameters prior to bulk factory dispatch to guarantee a precise slip-on fit.

Critical Capacity Management & Safe Lifting Dynamics

Rigging supervisors outfitting automated material handling hubs with the industrial fork lifting attachments 500kg-5000kg range must monitor specific handling limits:

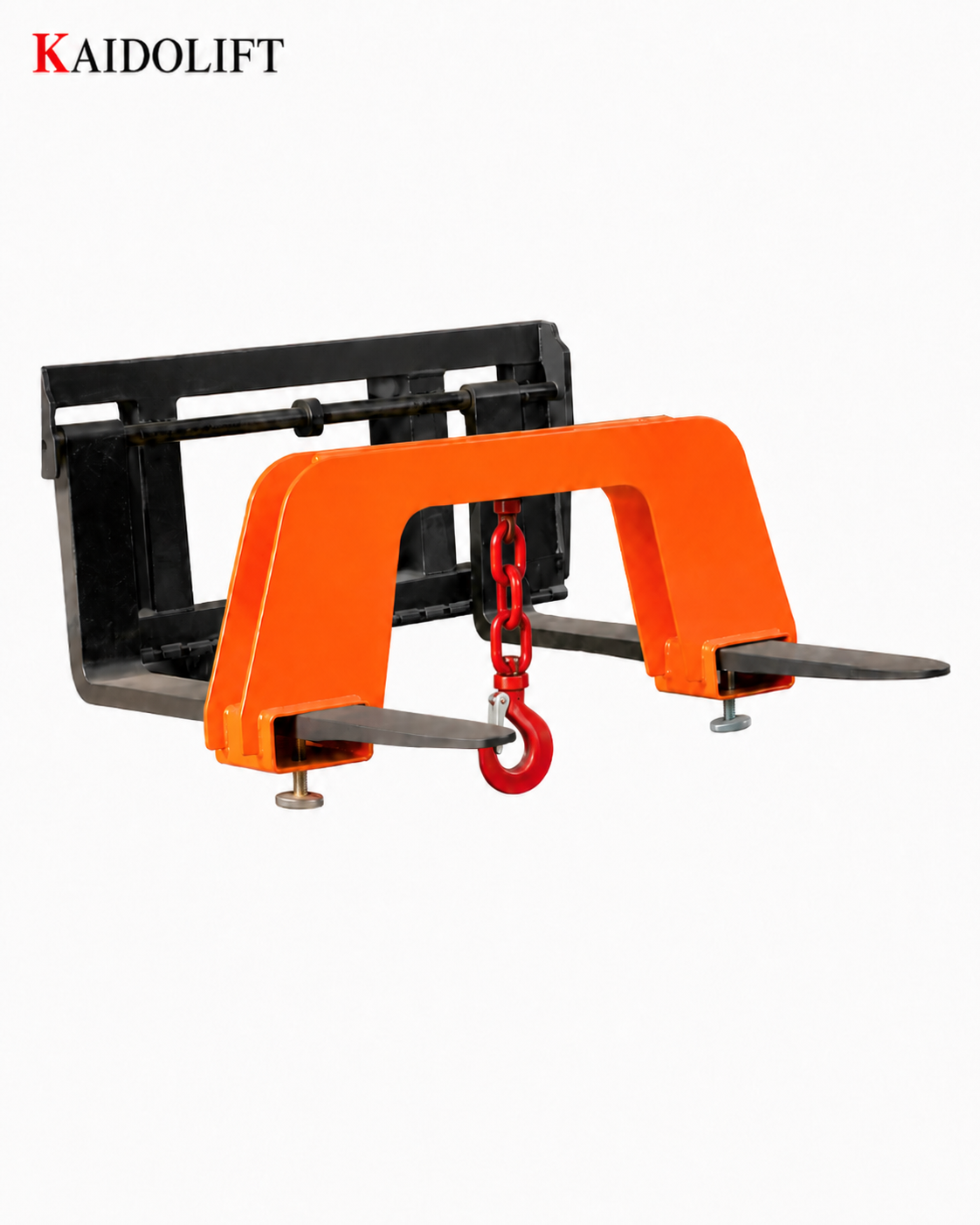

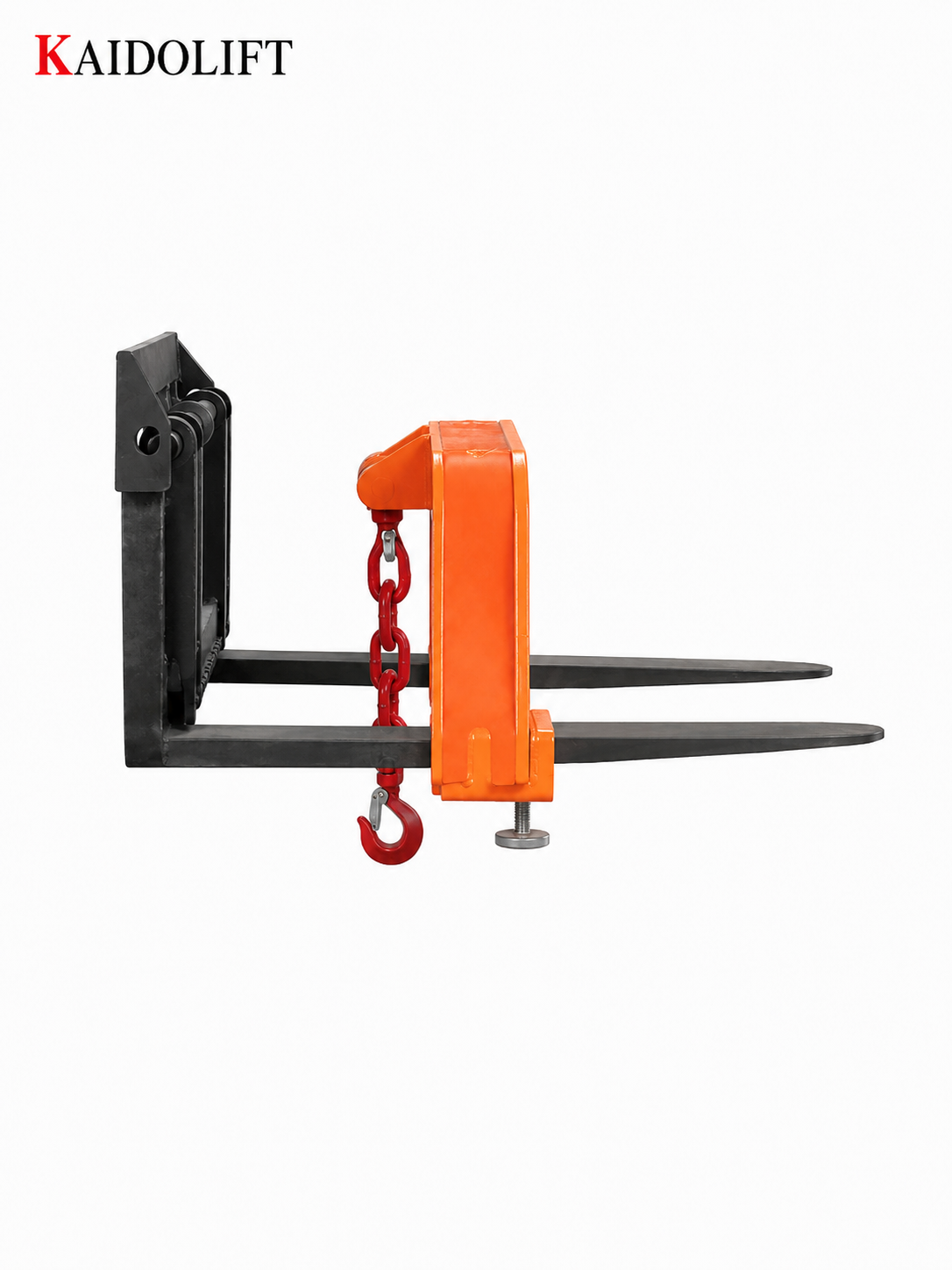

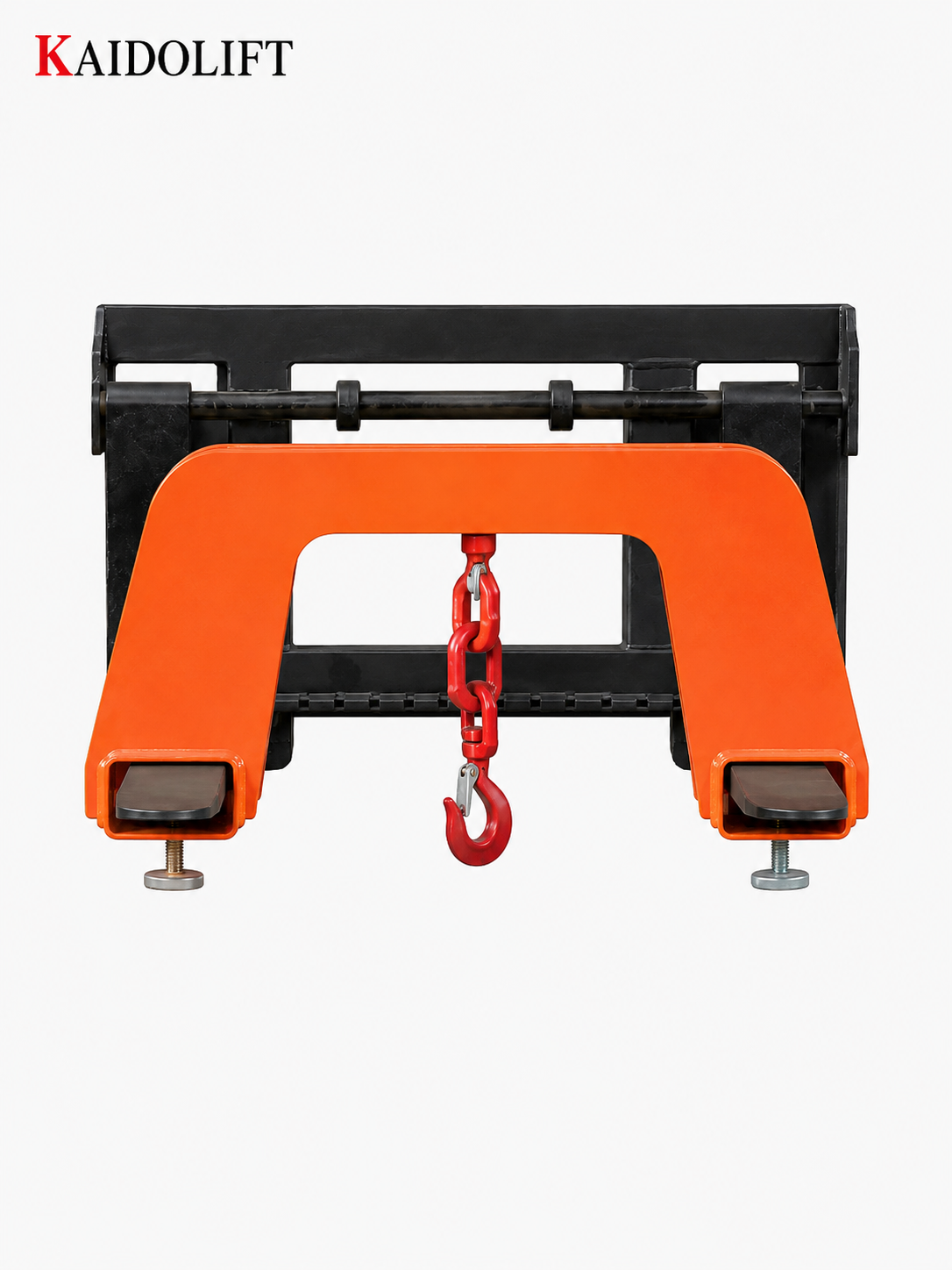

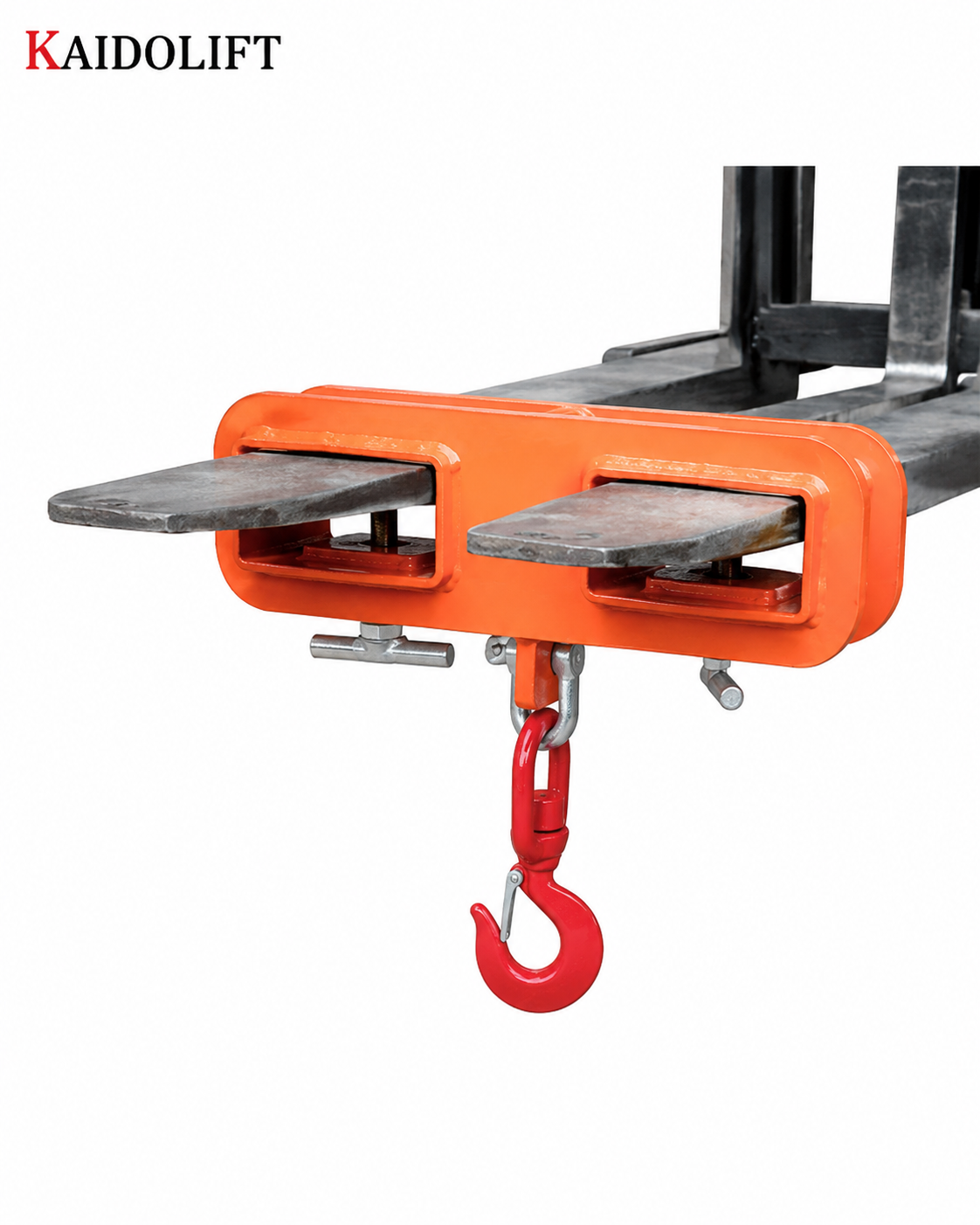

• Tine Sleeve Sizing Multipliers: Notice that as load capacity scales from the light-duty MK5 (500 kg) up to the infrastructure-grade MK50 (5000 kg), the structural footprint expands drastically to absorb overhead stresses. While the MK5 utilizes a compact single-sleeve structural width of 240mm, the high-capacity MK40 and MK50 variants scale out to an expansive dual-pocket chassis width profile spanning $590 \times 650$ mm to distribute the severe downforces safely across both fork blades.

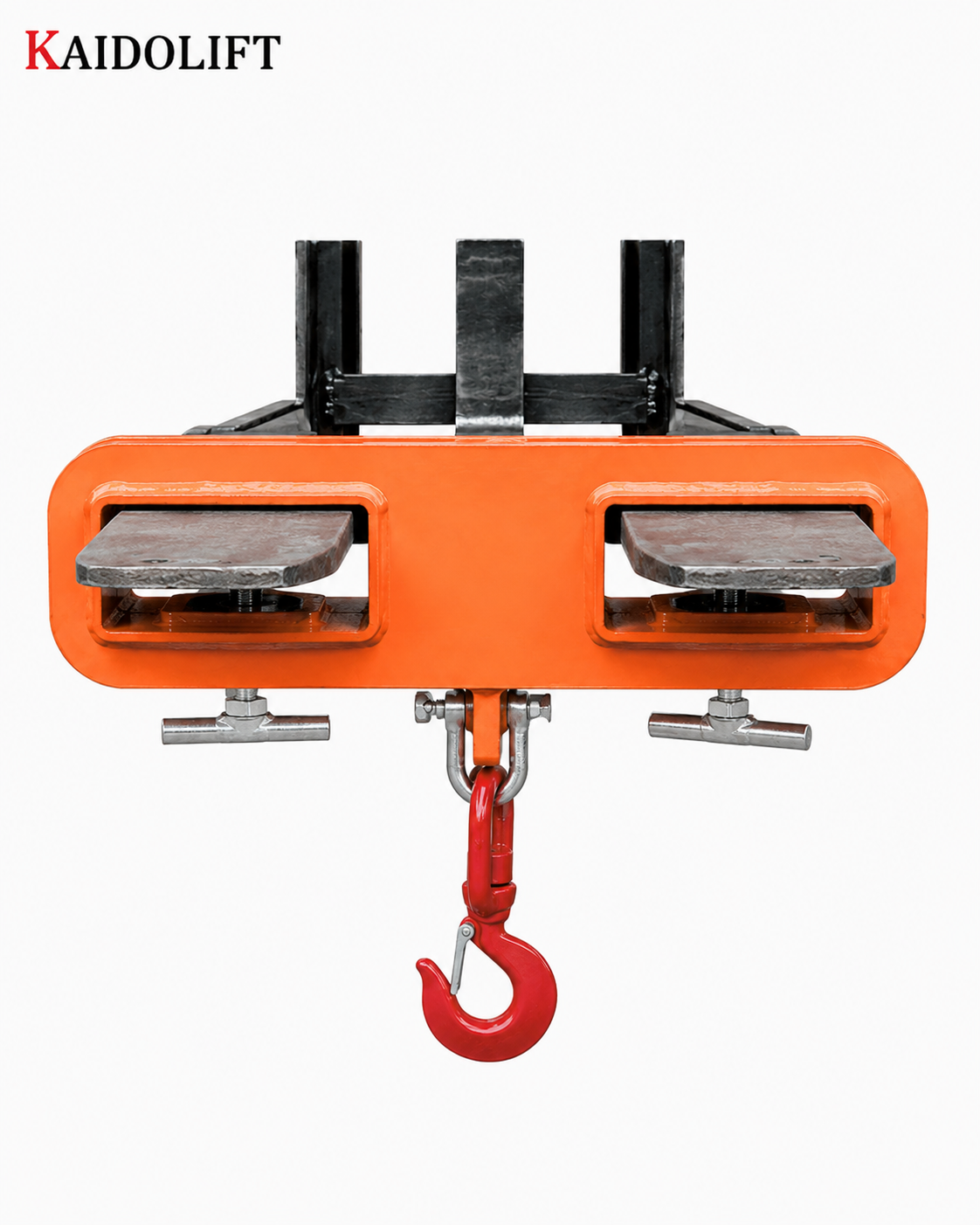

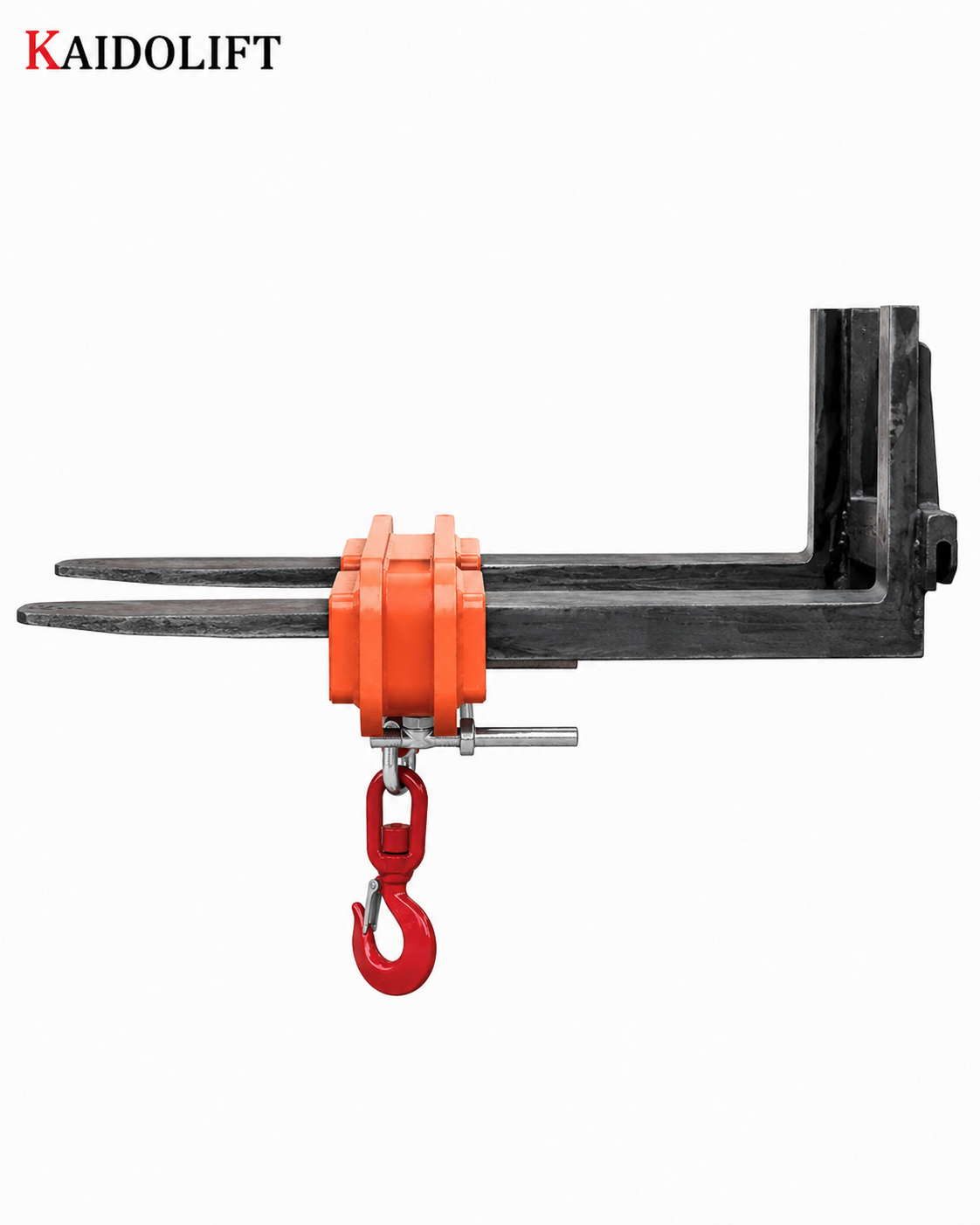

• Deadweight Overhead Adjustments: For fleet operations, the net tool weight must be deducted from the forklift’s net remaining lifting envelope. The entry-level MK5 weighs only 6.5 kg, making it easy for a single worker to mount manually. However, the industrial-tier MK50 adapter brings a 45 kg deadweight onto the tip of the forks, shifting the equipment’s load center forward and requiring strict adherence to the manufacturer’s master derating charts.

Industrial Applications (Campos de Aplicación)

• Machinery Assembly & Plant Maintenance Work: When plant engineers need to pull heavy electric motors, gearboxes, or precision CNC tooling dies out of enclosed machine frames where standard overhead building cranes cannot reach, the MK forklift crane adapter provides a quick solution. Slipping on an MK10 or MK25 lets the forklift reach inside a machine chassis and lift heavy components straight up safely.

• Logistics Hubs & Shipping Container Loading: Standard forklifts cannot easily lift non-palletized, awkwardly shaped industrial machinery or large rigging assemblies. Shipping hubs utilize the heavy-duty MK40 and MK50 models to transform yard forklifts into rigging cranes, allowing operators to pick up machinery using webbing slings or chains and load them directly into containers.

• Construction Sites & Outdoor Rigging Yards (Sector de Construcción): Construction contractors and infrastructure yards across LATAM utilize the heavy duty fork hoisting attachment to handle materials on rough-terrain forklifts. The mechanical thumb screw system ensures that even when traveling over gravel, mud, or unpaved site paths, the hook housing stays locked to the tines, preventing dynamic shifts.

• Steel Warehouses & Bulk Pipe Handling: Long structural pipe bundles and steel bars are difficult to handle on flat forks due to balance risks. By sliding an MK25 or MK40 adapter onto the forks, operators can suspend long loads using a balanced two-leg wire rope configuration, ensuring stable handling during warehouse transit.
