ORM Spring Balancer Industrial Tool Retractor

Description

Product Overview

The ORM Spring Balancer (internationally recognized across high-volume automotive lines as the Industrial Tool Retractor, and specified by manufacturing plants in Latin America as Balanceador de resorte) is an essential auxiliary rigging tool used together with heavy operation tools. By counterbalancing the weight of suspended tools with adjustable spring tension, this mechanical device makes the operational tools weightless and reduces the labor intensity of operators largely.

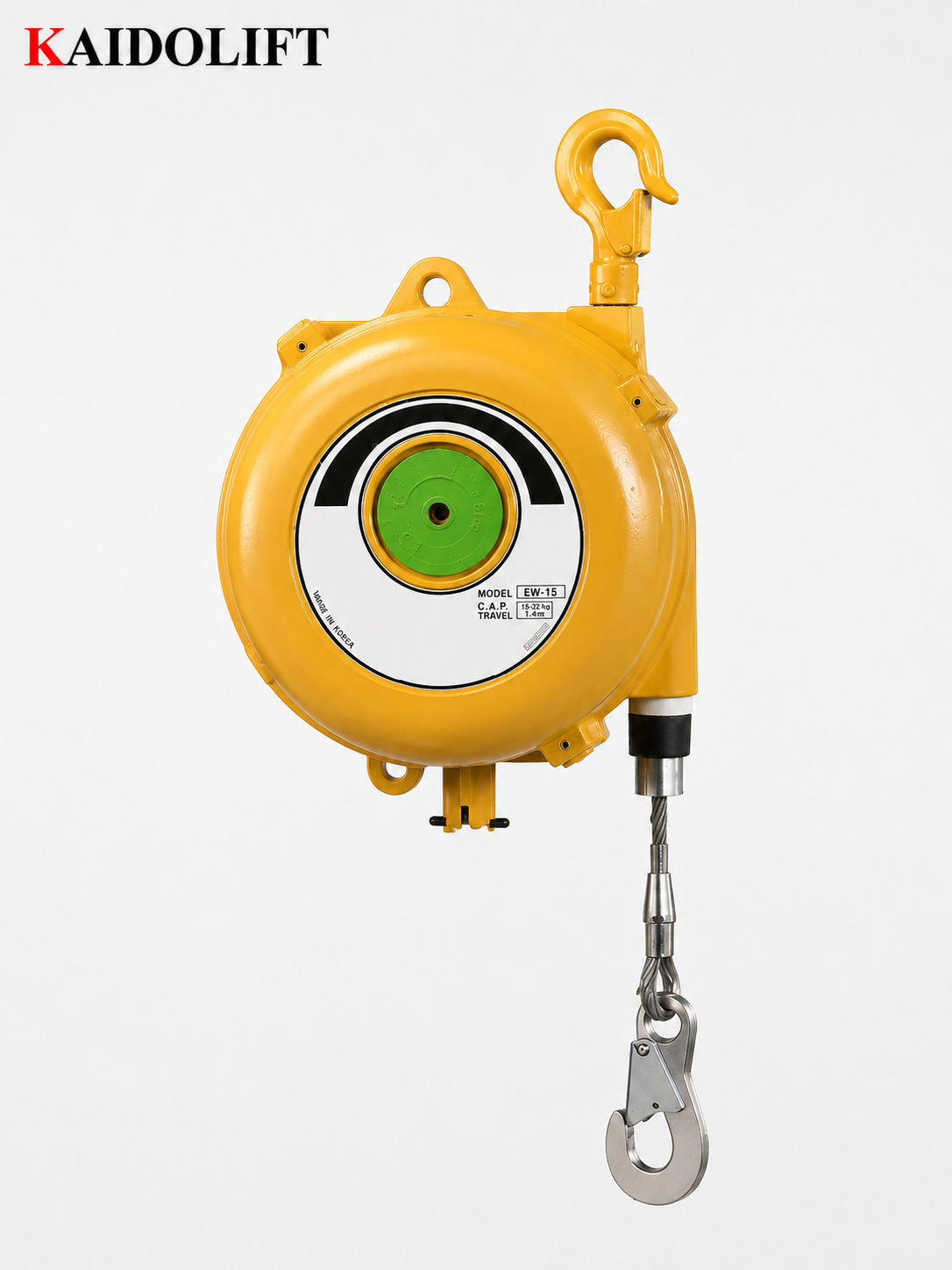

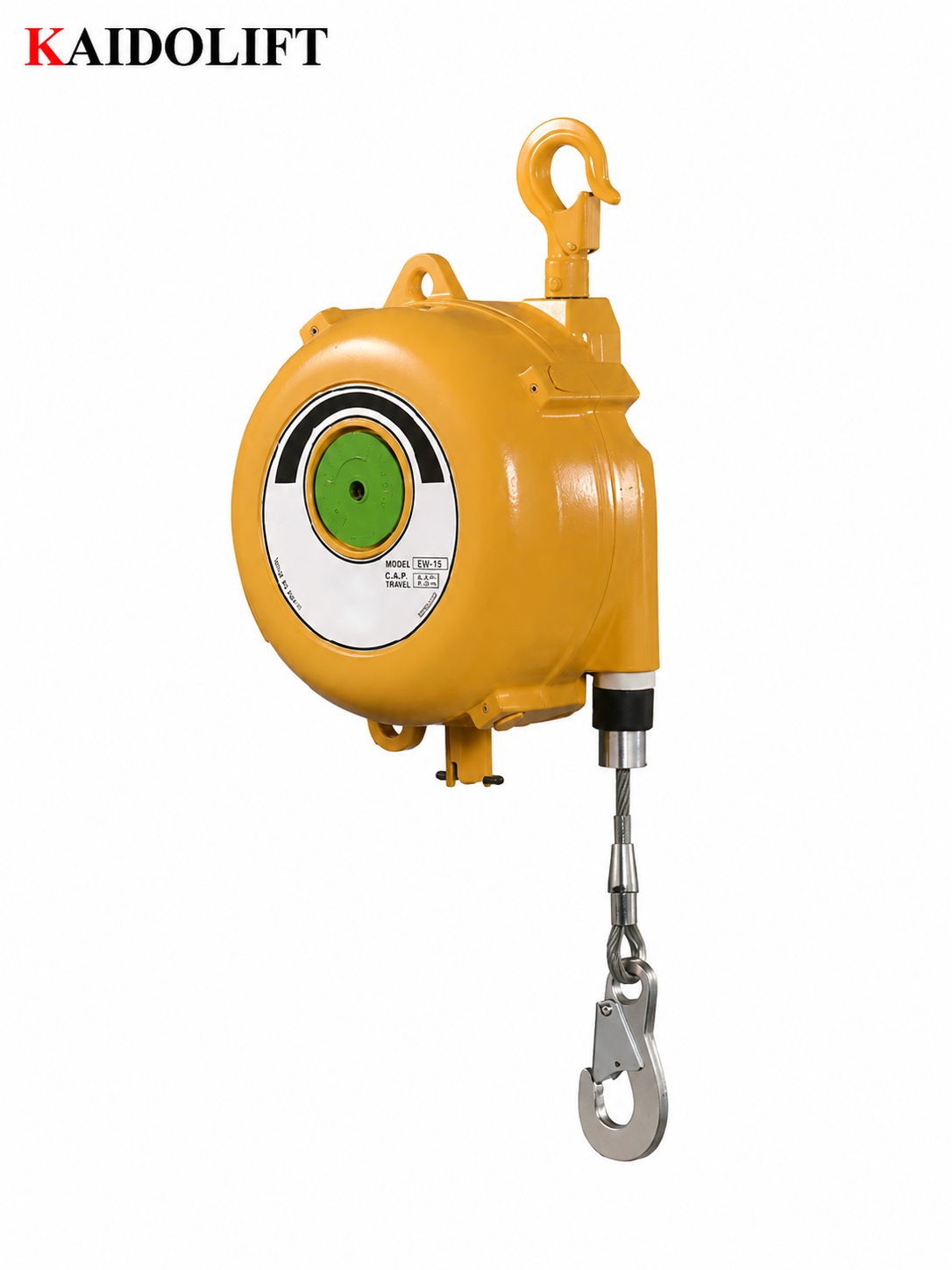

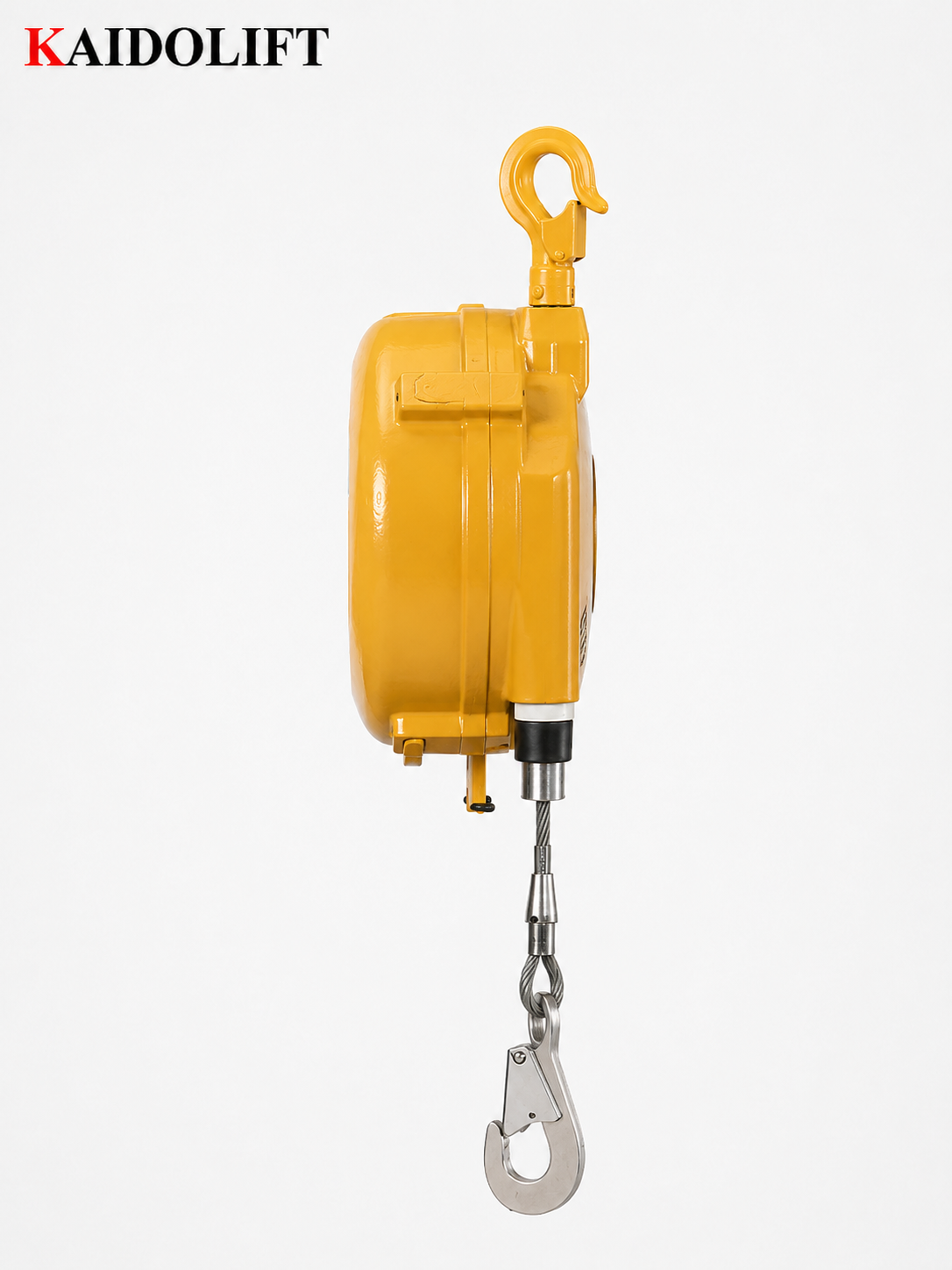

Manufactured with a rugged metal casing, a high-tensile steel wire rope cable, and an integrated safety locking mechanism, the ORM heavy duty tool balancer keeps pneumatic wrenches, welding guns, grinding tools, and torque drivers suspended at a constant height. This prevents operators from carrying heavy loads manually during long shifts, drastically improving ergonomics on industrial assembly lines, preventing accidental tool drops, and keeping production workstations organized and efficient.

Advanced Structural Design & Ergonomic Tensioning

Using an ergonomic spring tension crane hoist system in fast-paced production environments requires premium mechanical components and steady cable payout:

• High-Tensile Steel Wire Housing: The internal tapered drum design works together with a high-grade coiled steel clock spring to ensure that the retraction force remains perfectly balanced throughout the entire working stroke length.

• Secured Upper and Lower Hook Mounting: Equipped with a rugged top hook for rigid attachment to overhead crane rails, jib crane beams, or workstation gantries. The lower connection utilizes a smooth-turning swivel hook with a safety latch to secure various industrial tools.

• Adjustable Travel Distance: The flexible wire cable allows for an extensive stroke length up to 1.7 meters, giving assembly operators full operational range across large assembly fixtures without experiencing sudden tension drops.

Technical Specifications & Parameter Matrix

Certified engineering boundaries, physical stroke travel distances, and net equipment weights for the complete ORM Spring Balancer fleet:

B2B Procurement Note: The operational parameters shown above allow procurement teams to match specific heavy industrial tools perfectly. For tool weights falling exactly on model boundaries, always choose the heavier capacity model to allow for fine-tuning adjustment margin on the factory floor.

Critical Capacity Management & Safe Workstation Dynamics

Rigging engineers setting up workstations with the industrial assembly line balancer 1.5kg-160kg range must monitor specific weight and travel limits:

• Stroke Length Extensions: As model capacity scales from the light-duty ORM-3.0 (1.5 – 3.0 kg) up to the heavy-duty ORM-160 (140.0 – 160.0 kg), the internal adjustable cable stroke tool retractor scales its cable length. Light-capacity models utilize a 1.3 m stroke, intermediate models provide a 1.5 m working travel, and high-capacity units scale up to a 1.7 m travel span to accommodate deep workspace reaches.

• Deadweight Overhead Adjustments: The net device weight increases along with the heavy-duty casing sizes. An entry-level ORM-3.0 introduces a minor tool weight of 1.3 kg, making it easy to mount on light workshop rail tracks. However, a heavy-duty ORM-160 balancer introduces a permanent net tool weight of 22.0 kg, which must be added to structural calculations when designing tool gantries, overhead support rails, or workstation frames.

Industrial Applications

• Automotive Assembly & Body-in-White Lines: Car manufacturing plants install the Industrial Tool Retractor on overhead rail tracks to suspend heavy spot welding guns, pneumatic riveters, and large torque multi-multipliers. This enables assembly line workers to manipulate heavy equipment repeatedly without experiencing muscle strain.

• Machinery Fabrications & Grinding Workshops: Machinery facilities utilize the smooth movement of the Spring Balancer to hang heavy pneumatic grinders, sanders, and electric finishing tools. It holds the tool weight at the exact working level, allowing operators to focus entirely on finishing accuracy.

• Electronics Manufacturing & Precise Assembly: Electronics factories deploy light-capacity ORM-3.0 and ORM-4.5 balancers to hold electric screwdrivers above PCB assembly lines. This prevents tools from cluttering the workbench and protects delicate components from damage caused by dropped tools.

• Logistics Packaging & Bulk Crating Bays: Commercial logistics hubs hang industrial staplers, tape dispensers, and strapping machines from ORM heavy duty tool balancer housings above wrapping tables, allowing shipping clerks to pull tools down for rapid carton sealing and release them instantly to clear the workspace.
