JG Beam Clamp Rail Lifting Clamp

Description

Product Overview

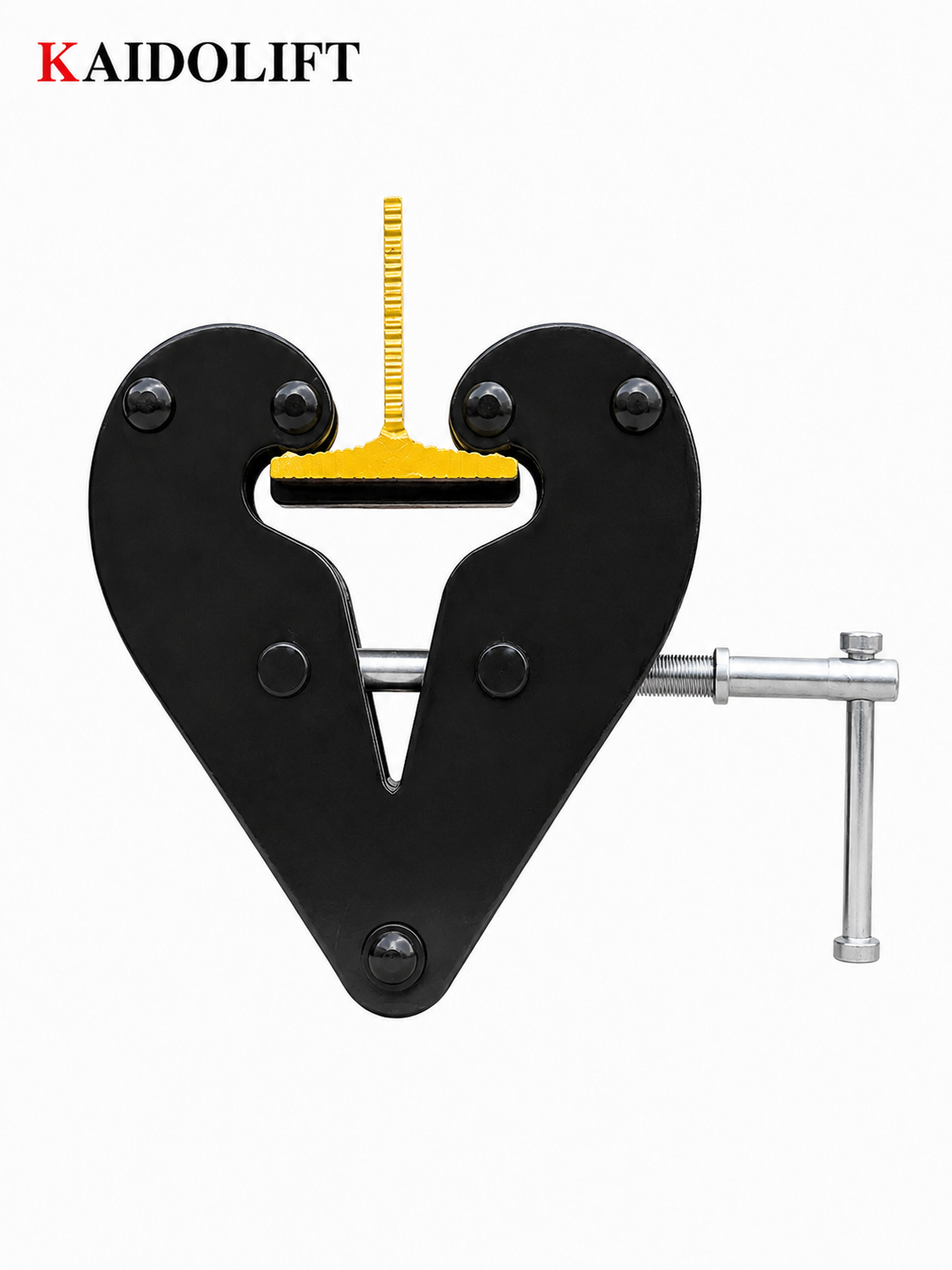

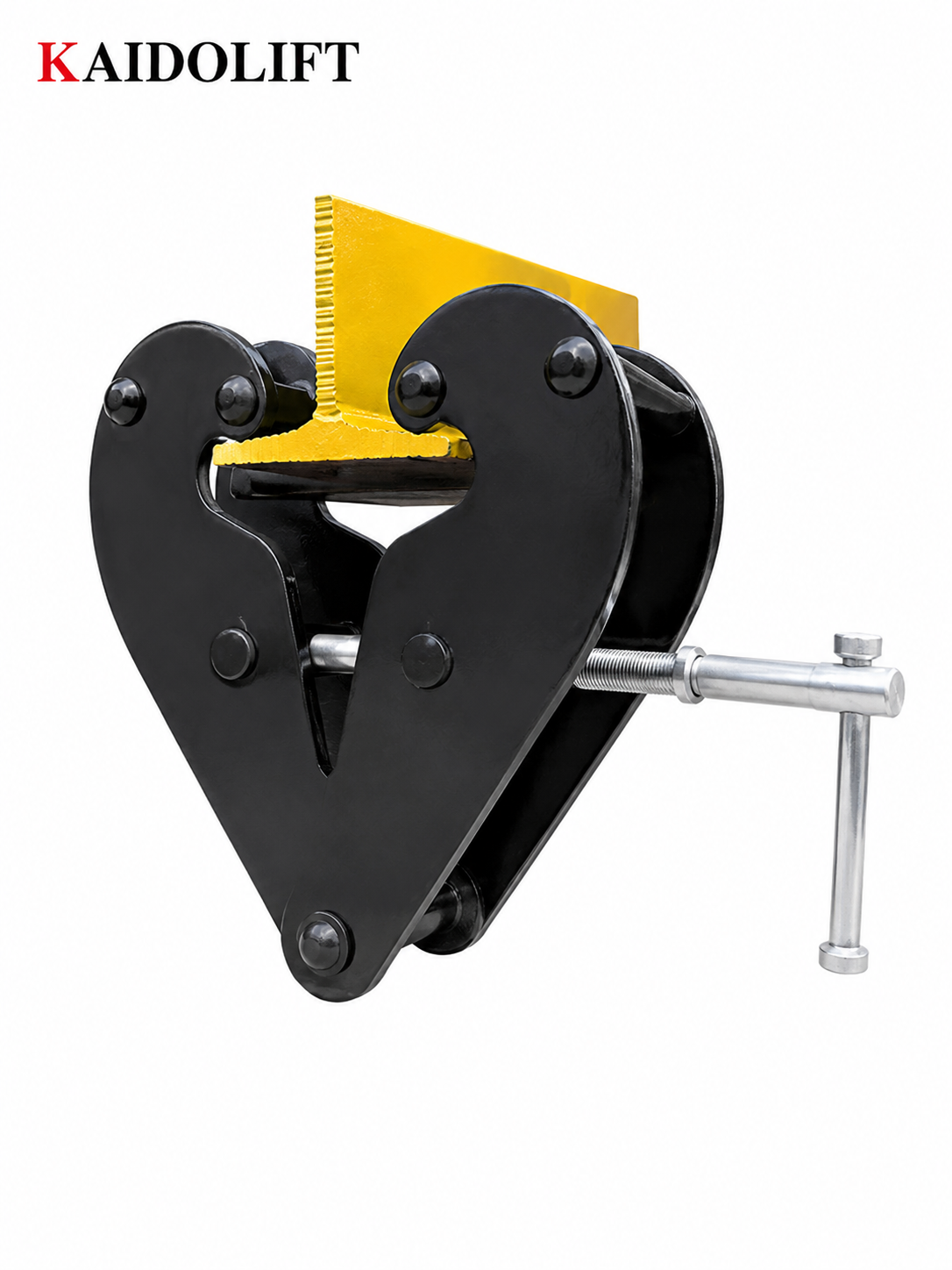

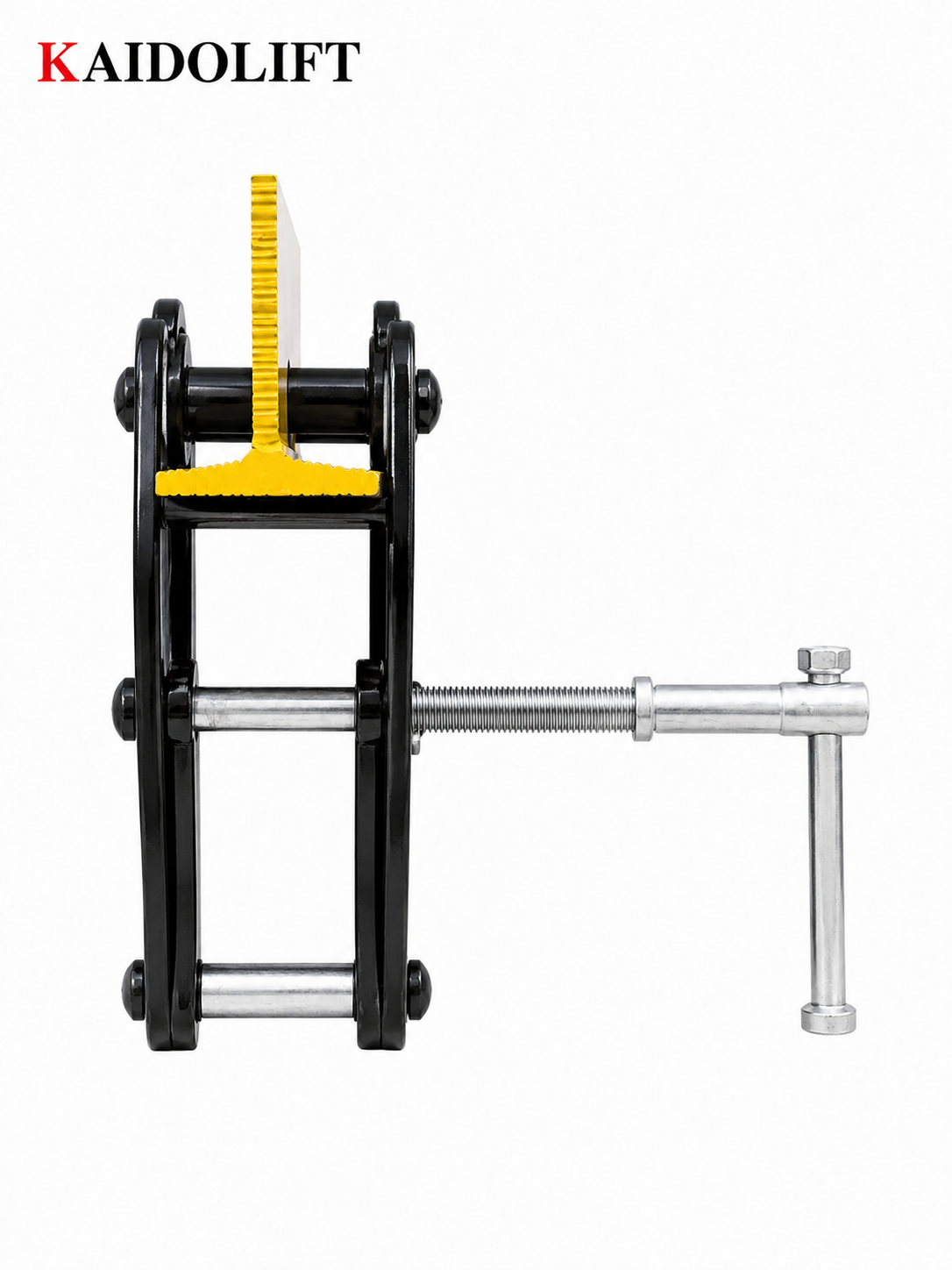

The JG Beam Clamp (internationally recognized across industrial transit lines as the Rail Lifting Clamp, and widely sourced by infrastructure networks in Latin America as Pinza para riel or Mordaza para riel) is an engineered, heavy-duty rigging solution. It is specifically built for the secure vertical lifting, suspension, and horizontal transferring of standard railroad tracks, heavy steel rails, structural H-beams, and I-steel profiles.

Manufactured from premium high-quality alloy steel and subjected to precise thermal heat treatment, this JG heavy duty beam gripper guarantees exceptional wear resistance and structural integrity under extreme material handling environments. The compact structure and easy-to-install design make it an ideal option for high-intensity B2B applications, including heavy mining railways, port terminal crane rail installations, and steel metallurgy logistics hubs.

Advanced Structural Design & Adjustable Jaw Mechanism

Operating an adjustable steel rail lifting tool requires absolute mechanical reliability and adaptability to various flange profiles:

• High-Safety Threaded Locking Bar: Engineered with a heavy-duty, manual threaded spindle mechanism equipped with a turning handle. This allows the integrated clamping jaws to adjust flawlessly to wide track width dimensions, maintaining a rigid hold on the beam flange before any hoist line tension is applied.

• Premium Alloy Steel Assembly: Drop-forged from high-density, wear-resistant alloy steel structural components to deliver a standard 4:1 safety design factor in full compliance with global heavy rigging regulations.

• Versatile Flange Compatibility: Features a simple adjustment mechanism that accommodates wide-range specifications of H-shaped steel, I-steel, and standard commercial rail tracks without requiring separate custom rigging adapters.

• Rigorous Proof Load Validation: Every factory batch is subjected to proof-load testing up to the rated test force capacity to eliminate structural deformation risks during extreme field operations.

Technical Specifications & Parameter Matrix

Certified engineering parameters and geometric dimension metrics for the complete JG product lineage:

B2B Procurement Note: The track width adjustment parameters shown above (ranging from 75mm to 320mm) allow these units to double as structural rigging points or crane hangers. Ensure your steel beam flange thickness aligns with the internal clearance jaw depth (Dimension C) prior to bulk factory dispatch.

Critical Capacity Management & Safe Lifting Dynamics

Rigging supervisors deploying this track width adjustable crane clamp lineup must account for specific dimensional tolerances and load profiles during heavy site lifts:

• Sleeve Opening and Width Range Expansion: Notice that as the capacity scales from the compact JG-1A (1 Ton) to the high-capacity JG-5A (5 Ton), the flange adjustment capability expands dramatically to distribute structural stress. While the 1T and 2T variants cap their track width adaptability at 208mm, the heavy-duty 3T and 5T models handle massive beams up to 320mm wide, backed by an increased body thickness (Dimension D) scaling up to 10mm of solid forged steel.

• Deadweight to Structural Load Ratio: For mobile railway maintenance or remote mining installations, tool deadweight dictates operator speed. The entry-level JG-1A features an ultra-portable net weight of only 3.2 kg, allowing a single trackman to manually align it. Conversely, the infrastructure-grade JG-5A introduces a 10.6 kg tool weight, requiring stable handling when clamping onto large overhead structural members.

Industrial Applications

• Railway Maintenance & Transit Infrastructure: This versatile Beam Clamp is highly critical for repairing, laying, and aligning heavy steel railway tracks. Maintenance crews utilize the adjustable jaw to drop replacement rail lines straight onto concrete ties smoothly.

• Port Terminal Crane Rail Installation: Marine terminals deploy the heavy industrial flange hoisting lock 1 ton to 5 ton range to secure and position heavy-duty crane gantry tracks along concrete pier headers, ensuring the long rails remain perfectly straight under extreme lateral forces.

• Heavy Mining Operations & Rail Logistics: Large-scale mining networks rely on the Rail Lifting Clamp to handle heavy structural materials in underground haulage tunnels and surface processing tracks, preventing slippage when moving parts over uneven terrain.

• Steel Metallurgy & Structural Framing Work: Metallurgical facilities and structural fabrication yards employ the JG system to lift large H-beams and I-steel columns into position for overhead welding or bolting, using the manual spindle to lock onto varied structural profiles in seconds.
