Hand Puller Ratchet Wire Rope Cable Winch
Buy heavy-duty Hand Pullers / Power Pullers. Single & double gear ratchet designs, galvanized steel cable, working capacities from 1000kg to 4000kg (1T to 4T). Get direct factory quotes!
Description
Product Overview

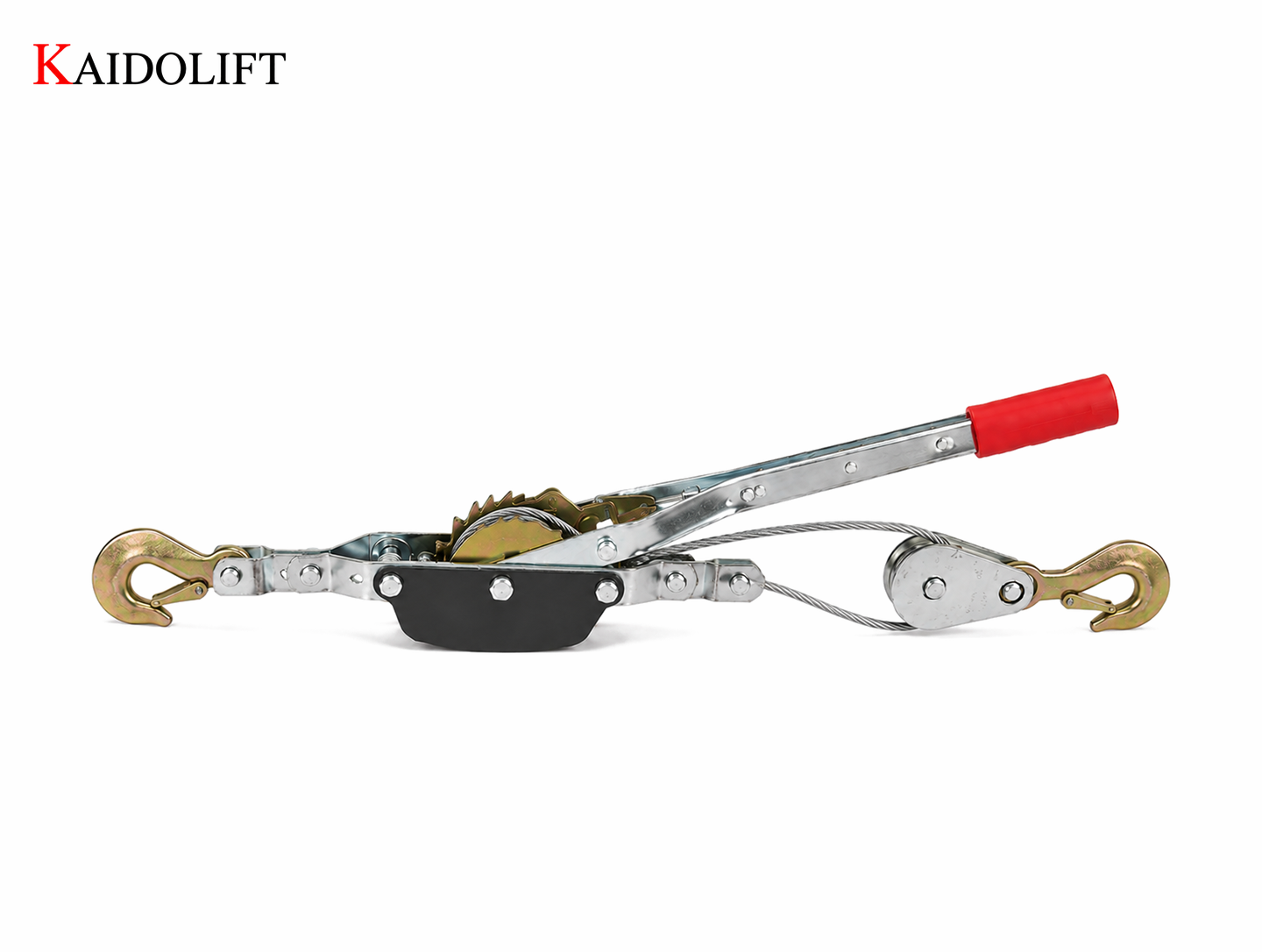

The Hand Puller (commonly referred to in international markets as the Power Puller Cable Winch or “Come Along”, and designated across Spanish-speaking industrial sectors as Tirfor manual de cable or Polipasto de palanca de cable) is a portable, manual ratchet-driven pulling and tensioning tool engineered for vehicle recovery, forestry logging, construction alignment, and heavy equipment positioning.
Built with high-strength zinc-plated steel frames, heavy-duty drop-forged safety hooks, and aircraft-grade galvanized steel cable, this series offers maximum durability and corrosion resistance in rugged outdoor conditions. Available in both single-gear and double-gear drive structures with single-line or double-line pulley hook setups, this portable manual ratchet cable puller 1t to 4t range delivers reliable leverage for horizontal pulling and tensioning operations without requiring external power.
Advanced Mechanical Engineering & Safety Innovations
Manual cable pulling demands reliable ratchet engagement, high mechanical leverage, and smooth cable spooling:
Dual-Drive Ratchet System (Single vs. Double Gear):
Single Gear Models: Provide light-to-medium tensioning performance with simple operation.
Double Gear Models: Utilize dual drive pawls and double ratchet wheels to distribute hand leverage evenly across both sides of the drum frame, eliminating frame twisting and providing smoother, higher-capacity pulling power.
Galvanized Aircraft-Grade Steel Cable: Equipped with high-tensile steel wire rope (diameter options ranging from $\phi 4.8\text{ mm}$ up to $\phi 6\text{ mm}$) to resist abrasion, fraying, and rust during outdoor operations.
Drop-Forged Steel Hooks with Safety Latches: Heavy-duty forged alloy hooks feature 360-degree rotation and spring-loaded safety latches to ensure secure attachment points during heavy pulling.
Non-Slip Ergonomic Handle Grip: Fitted with a contoured non-slip rubber grip that maximizes hand comfort and reduces operator fatigue during high-tension pulling cycles.
Technical Specifications & Parameter Matrix
Certified mechanical performance ratings, cable diameters, ratchet gear structures, and capacity specifications for the complete double gear ratchet wire rope puller lineup:
| Model | Hoisting Capacity | Working Capacity | Breaking Force | Gear, Line & Hook Configuration | Steel Cable Size |
| SY10-112 | 500 kg | 1,000 kg (1T) | 2,000 kg (2T) | Single Gear, Single Line, Double Hooks | $2.2\text{ m} \times \phi 4.8\text{ mm}$ |
| SY10-122 | 500 kg | 1,000 kg (1T) | 2,000 kg (2T) | Single Gear, Single Line, Double Hooks | $2.2\text{ m} \times \phi 4.8\text{ mm}$ |
| SY10-212 | 500 kg | 1,000 kg (1T) | 2,000 kg (2T) | Double Gear, Single Line, Double Hooks | $2.2\text{ m} \times \phi 4.8\text{ mm}$ |
| SY10-222 | 500 kg | 1,000 kg (1T) | 2,000 kg (2T) | Double Gear, Double Line, Double Hooks | $2.2\text{ m} \times \phi 4.8\text{ mm}$ |
| SY20-222 | 1,000 kg | 2,000 kg (2T) | 3,000 kg (3T) | Double Gear, Double Line, Double Hooks | $2.2\text{ m} \times \phi 5.0\text{ mm}$ |
| SY30-223 | 1,500 kg | 3,000 kg (3T) | 4,000 kg (4T) | Double Gear, Double Line, Double Hooks | $3.05\text{ m} \times \phi 5.5\text{ mm}$ |
| SY40-223 | 2,000 kg | 4,000 kg (4T) | 5,000 kg (5T) | Double Gear, Double Line, Double Hooks | $3.05\text{ m} \times \phi 6.0\text{ mm}$ |
B2B Procurement Note: The SY30-223 and SY40-223 models feature extended $3.05\text{ m}$ cable lengths with thicker steel cables ($\phi 5.5\text{ mm}$ and $\phi 6\text{ mm}$), engineered specifically for commercial vehicle extraction and heavy structural load alignment.
Critical Capacity Management & Safe Rigging Dynamics
Operators deploying the heavy duty come along hand winch puller series should maintain clear distinction between vertical lifting and horizontal pulling capacities:
Hoisting Capacity vs. Working Pulling Capacity:
Hoisting Capacity: Reflects direct vertical lifting capacity (e.g., 500 kg for SY10 up to 2000 kg for SY40).
Working Capacity (Horizontal Pulling): Reflects maximum horizontal rolling/pulling load capacity (e.g., 1000 kg for SY10 up to 4000 kg for SY40).
Double Gear Transmission Stability: Double gear models (SY10-212 through SY40-223) distribute drive force symmetrically through dual ratchet pawls, preventing cable binding and frame misalignment during peak loads.
Industrial Applications
Off-Road Vehicle Recovery & Agriculture: Off-roaders and farm workers deploy the Power Puller Cable Winch to extract stuck trucks, tractors, and trailers from mud, snow, or ditch inclines.
Forestry & Tree Service Operations: Arborists use the tirfor manual de cable to pull down hung tree branches and control tree falling direction during land clearing.
Construction & Structural Alignment: Steel erectors and builders utilize the single line double line hand cable puller to align steel beams, pull wall forms together, and tension temporary guy wires.
Fence Installation & Cable Tensioning: Utility crews and fencing contractors deploy the Hand Puller to stretch chain-link fencing, barbed wire, and overhead communication lines tight across posts.
