Pedal Hydraulic Drum Carrier Foot Pump Drum Caddy
Buy Pedal Hydraulic Drum Carriers. Features foot pump lifting, eagle-grip rim clamp, brake castors, and wide legs for spill pallet loading. Request factory direct pricing!
Product Overview
The Pedal Hydraulic Drum Carrier (known across factory floors and chemical distribution centers as the Foot Pump Hydraulic Drum Caddy, and specified across Latin American industrial plants as Transportador hidraulico de tambores a pedal) is an ergonomic, manual hydraulic handling truck designed for lifting, moving, and positioning 55-gallon rimmed steel drums and 200L rimmed plastic drums.
Engineered with a high-efficiency foot-actuated hydraulic pump, an automatic eagle-grip rim mechanism, and rear steering castors with locking brakes, this carrier allows a single operator to load and unload drums directly from standard Euro pallets or containment spill pallets without manual lifting. Featuring straddle leg configurations (DT350A, DT350B, DT350C) tailored for various pallet widths, this 350kg foot pump barrel handler range provides an essential safety solution for chemical, oil, and manufacturing facilities.
Advanced Mechanical Engineering & Innovations
Handling rimmed barrels over spill containment decks demands reliable rim clamping, stable base geometry, and effortless foot-pump hydraulics:
Ergonomic Foot-Actuated Hydraulic Pump: Allows smooth, controlled vertical lifting up to 300 mm with minimal foot pedal effort, reducing operator back strain.
Automatic Eagle-Grip Rim Clamping Mechanism: Heavy-duty steel jaws clamp onto the top chime of steel or plastic drums automatically as pressure is applied, securing the load during transport.
Spill Containment Pallet Accessibility: Specially shaped straddle legs permit the unit to approach and roll directly over containment spill pallets and standard wooden pallets for seamless drum placement.
Rear Brake Castor Assembly: High-grade polyurethane castors (Ø150 mm front rollers and Ø125 mm rear swivel casters) feature step-on parking brakes for secure stationary loading.
Technical Specifications & Parameter Matrix
Certified engineering parameters, leg widths, dimensional envelopes, and net weights for the complete spill pallet hydraulic drum lifter lineup:
| Model | Load Capacity | Acceptable Drums Type | Lifting Height | Inner Width of Supporting Legs | Wheel Dimension | Overall Size (L * W * H) | Net Weight |

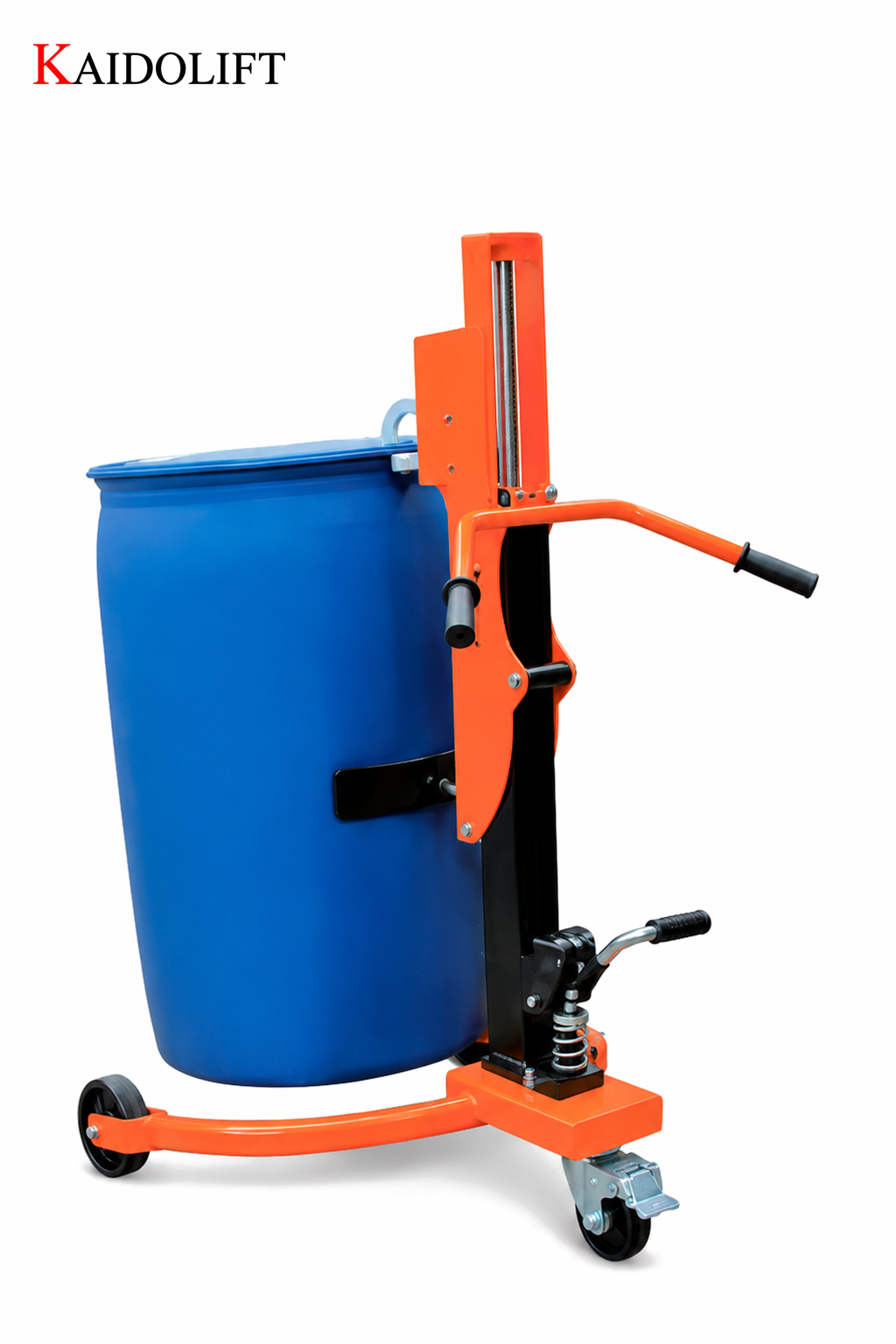

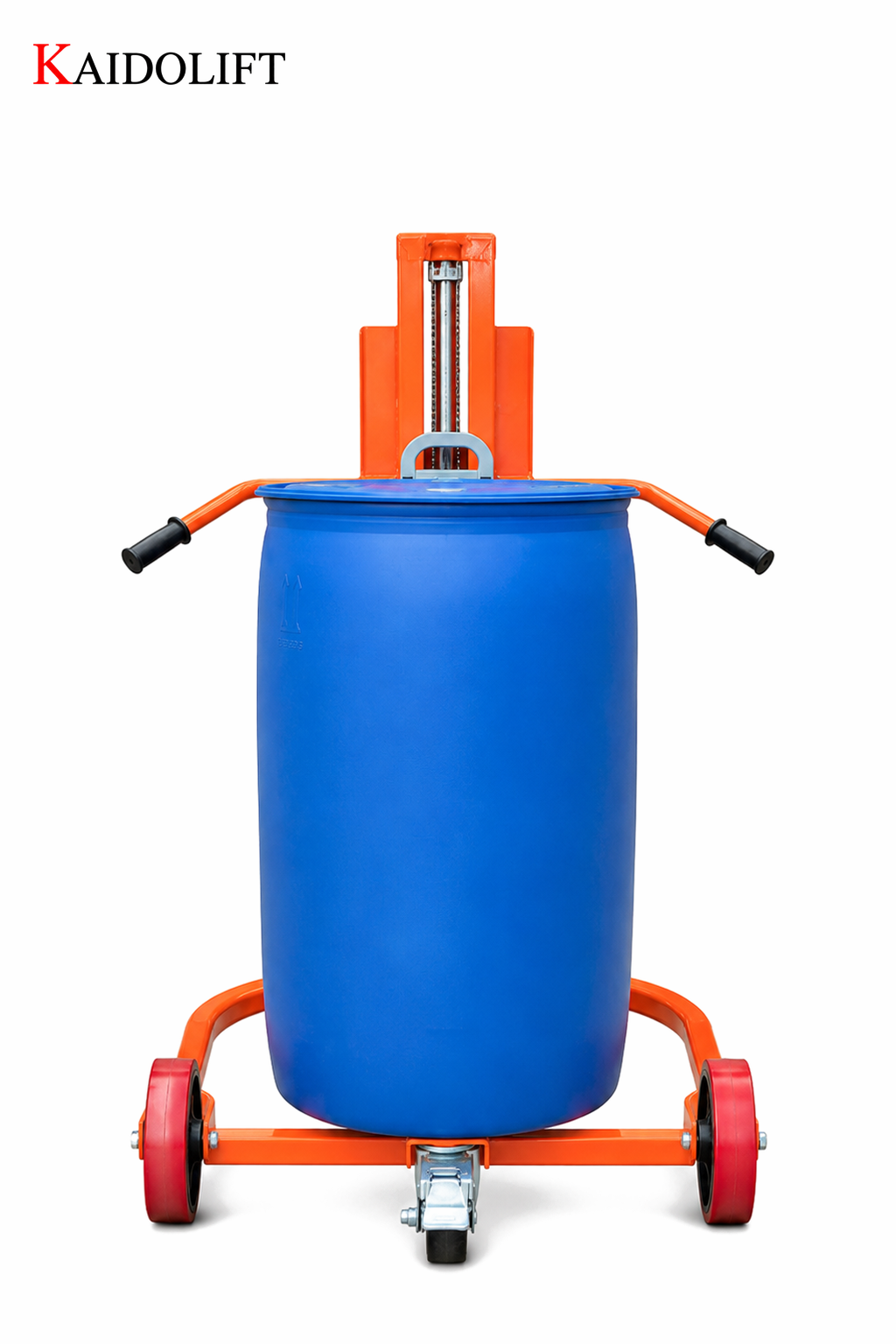

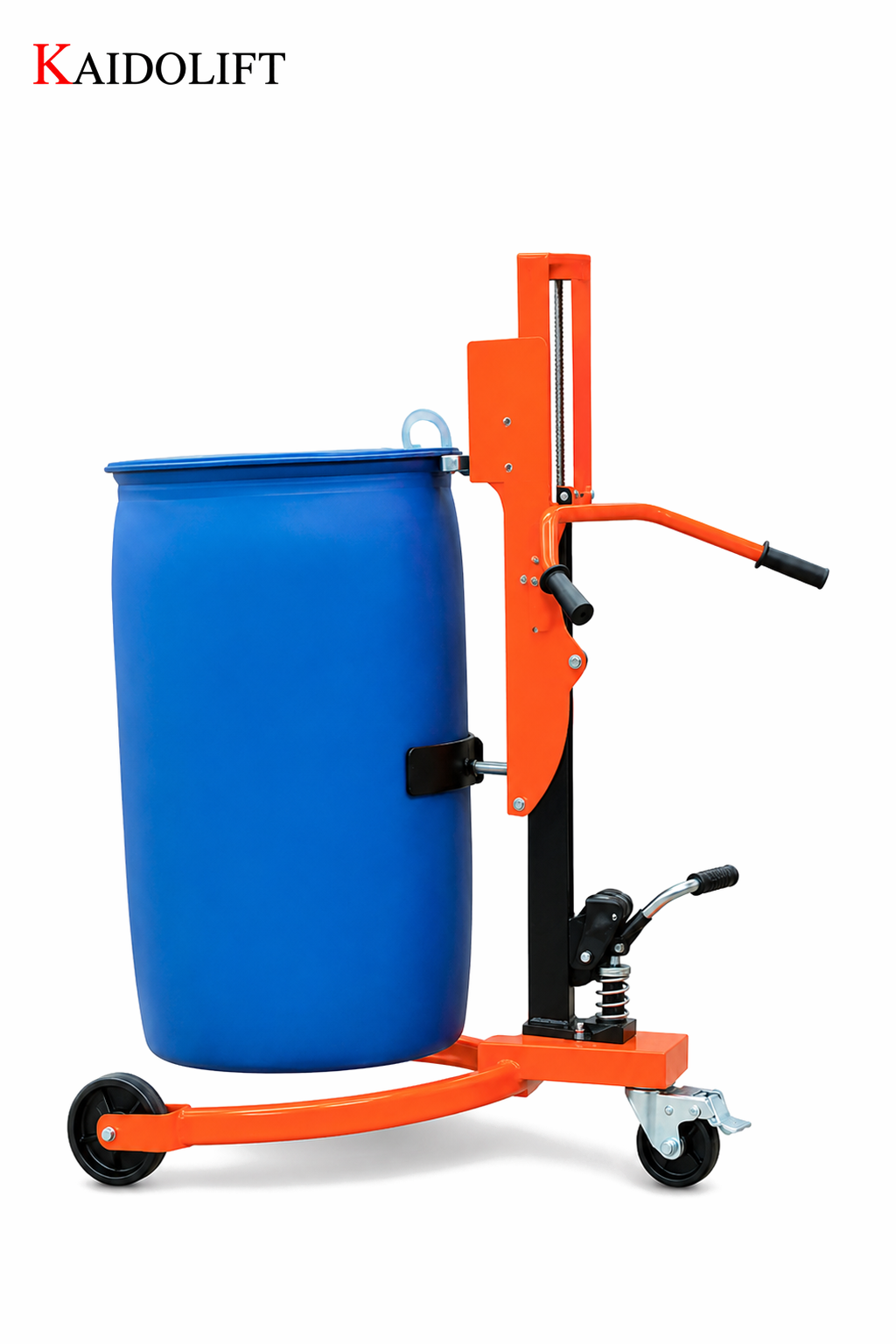

| DT350A | 350 kg | 55 Gallon steel drums & 200L plastic drums | 300 mm | 645 mm | Ø150 / Ø125 mm | 925 * 830 * 1116 mm | 50.6 kg |

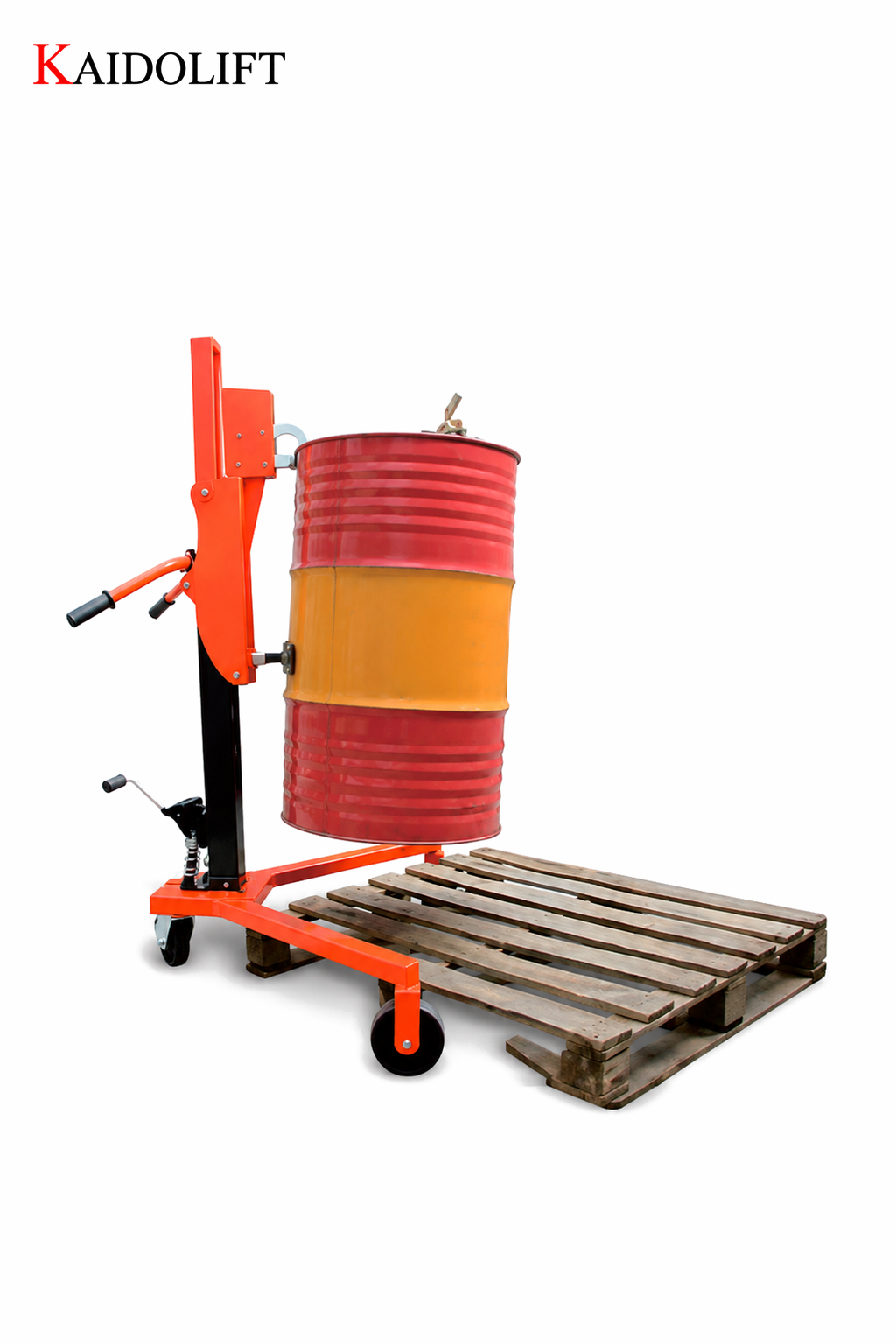

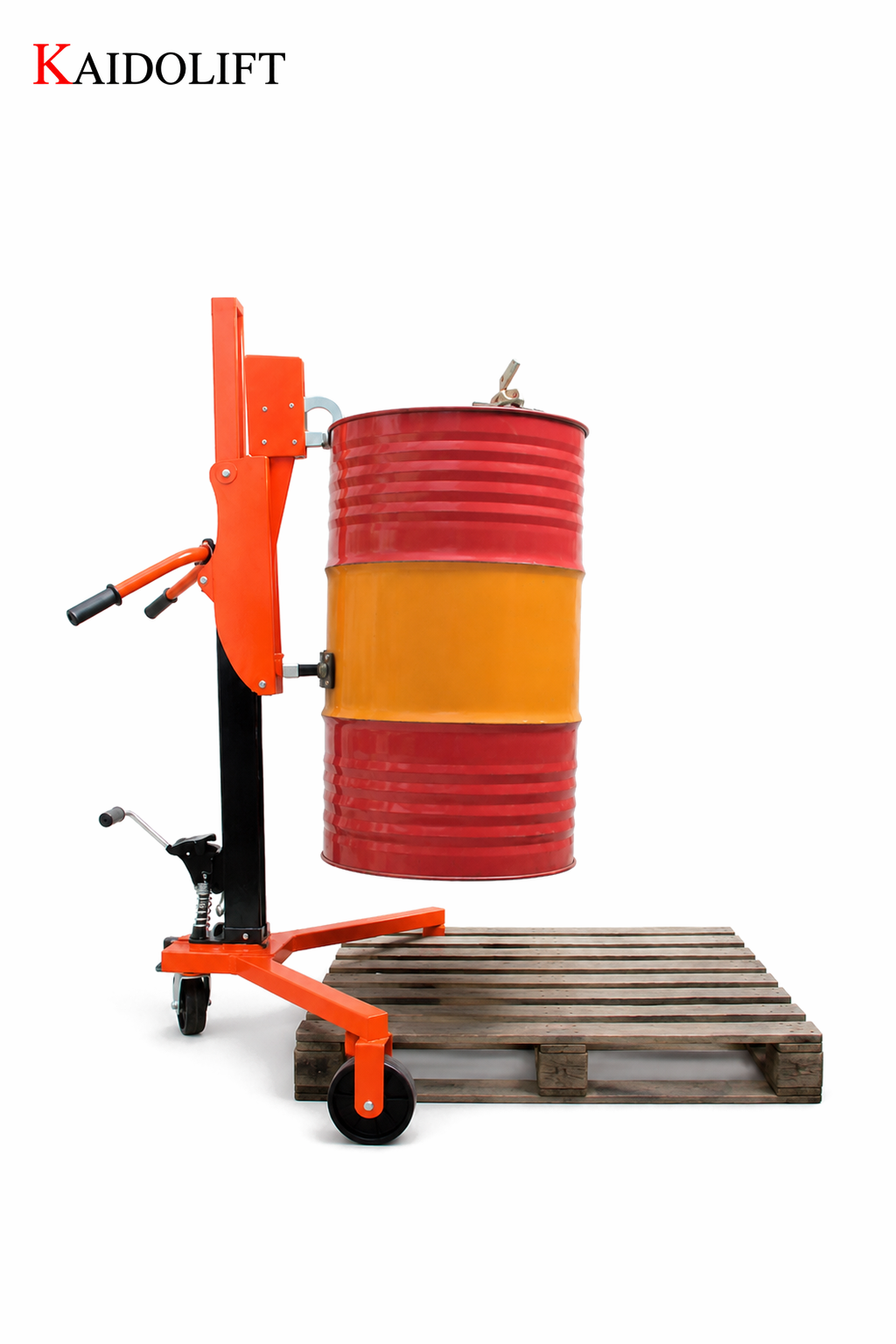

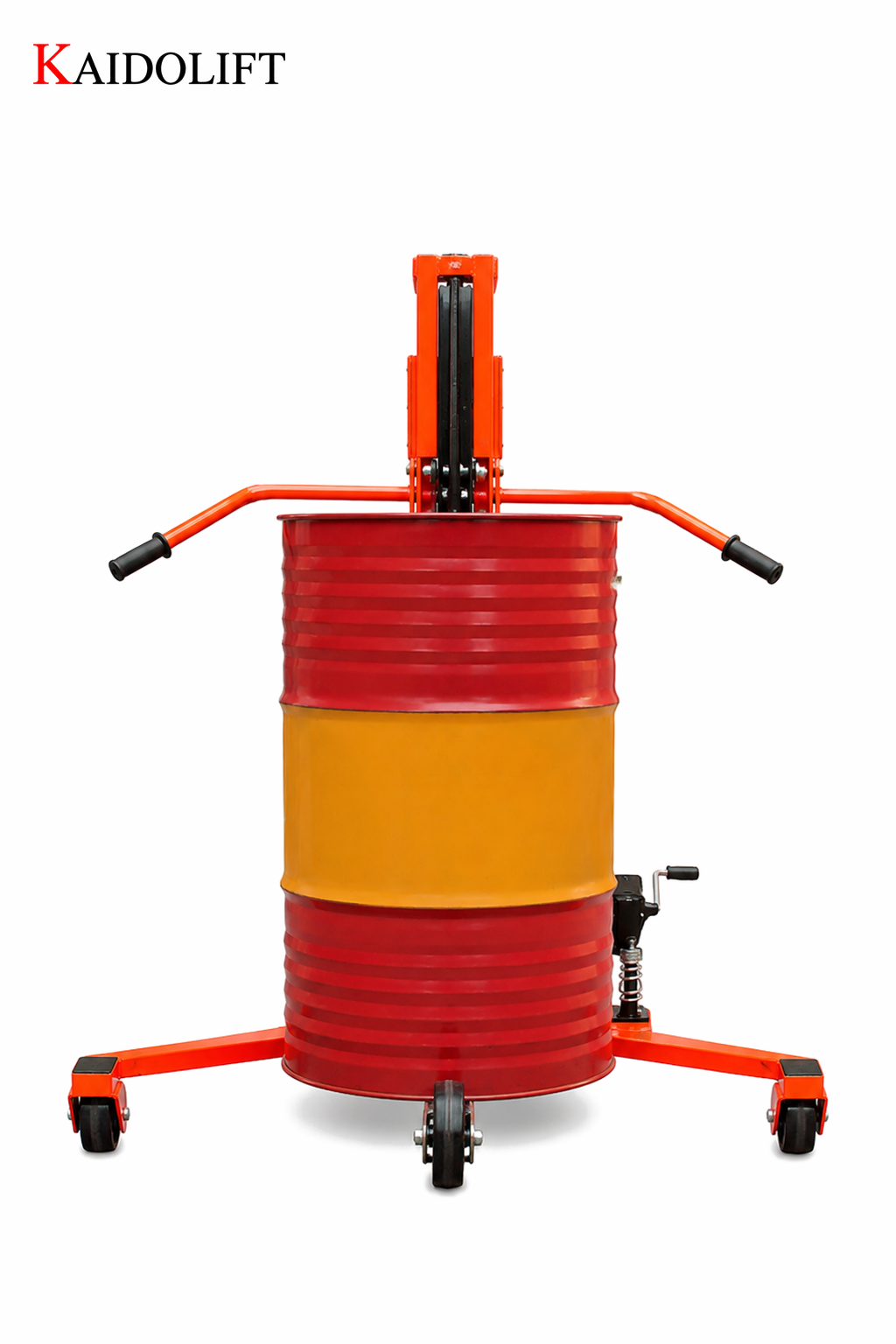

| DT350B | 350 kg | 55 Gallon steel drums & 200L plastic drums | 300 mm | 1085 mm | Ø150 / Ø125 mm | 905 * 1270 * 1116 mm | 50.8 kg |

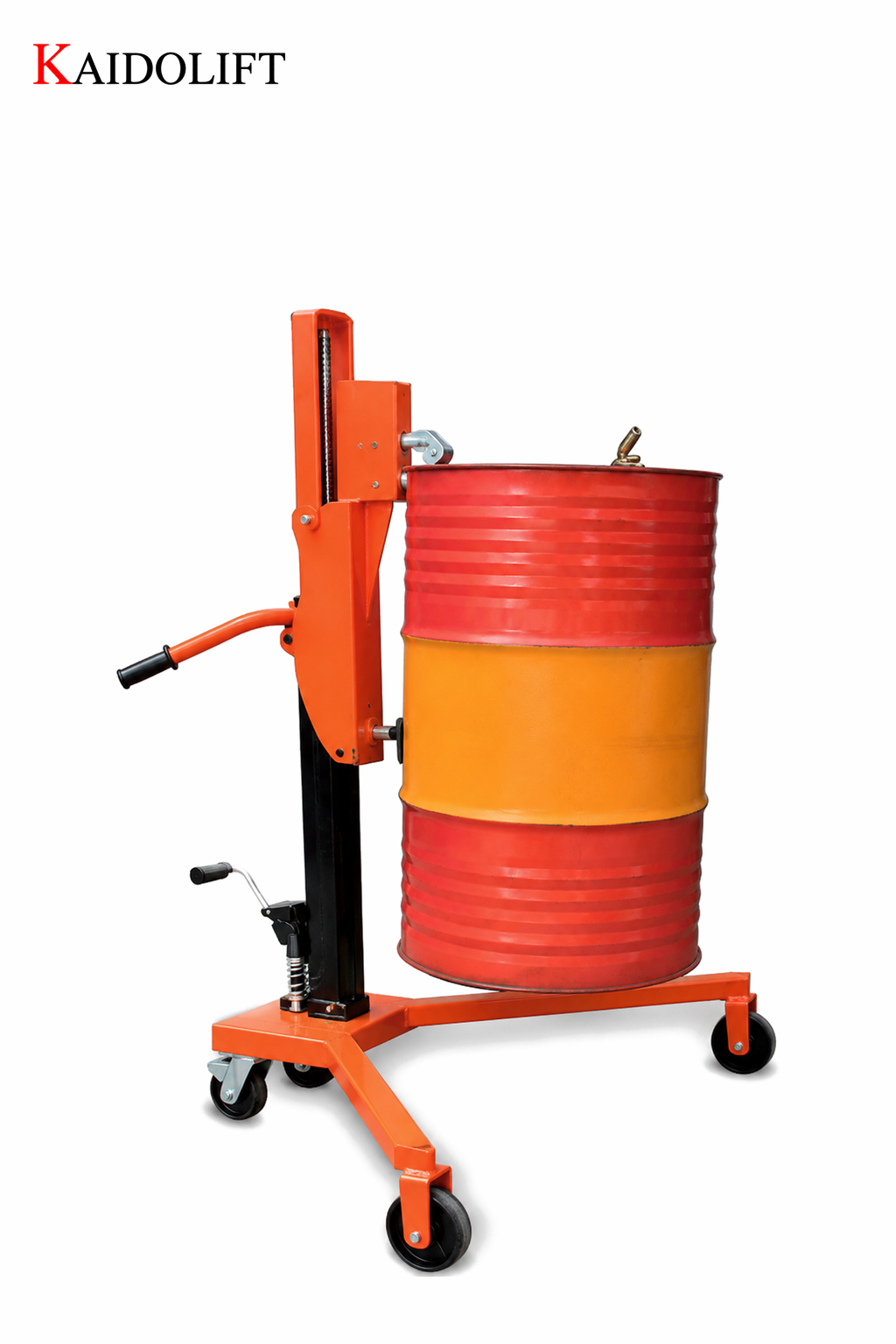

| DT350C | 350 kg | 55 Gallon steel drums & 200L plastic drums | 300 mm | 1195 mm | Ø150 / Ø125 mm | 1000 * 1380 * 1116 mm | 57.4 kg |
B2B Procurement Note: Selection depends primarily on pallet width. Model DT350A features an inner leg width of 645 mm for narrow spaces, while DT350B (1085 mm) and DT350C (1195 mm) straddle wide chemical spill containment pallets and 1200 mm wide standard industrial pallets.
Critical Capacity Management & Safe Rigging Dynamics
Facility managers specifying the eagle grip manual pedal drum trolley models should match leg dimensions to floor equipment geometry:
Leg Span vs. Pallet Compatibility:
DT350A (645 mm Inner Width): Ideal for standard floor transport, corner pickups, and narrow warehouse aisles.
DT350B (1085 mm Inner Width): Straddles standard 1000 * 1200 mm perimeter base pallets for direct drum unloading.
DT350C (1195 mm Inner Width): Designed specifically to straddle bulky, high-profile 4-drum spill containment pallets.
Load Rating: All models support a standard working capacity of 350 kg, fully rated for dense liquid chemical and lubricant drums.
Industrial Applications
Chemical Storage & Containment Areas: Operators use the Transportador hidraulico de tambores a pedal to move hazardous material drums onto elevated spill containment decks.
Petroleum & Lubricant Warehouses: Warehouse staff deploy the Foot Pump Hydraulic Drum Caddy to offload oil barrels from transport pallets to floor storage.
Paint & Coating Manufacturing: Plant technicians utilize the wide leg hydraulic drum positioning truck to carry resin and solvent drums directly to mixing station platforms.
Pharmaceutical & Food Processing Facilities: Production personnel use the Pedal Hydraulic Drum Carrier for clean, low-maintenance drum transfer across processing floors.
