Product Overview

The Semi Electric Drum Lifter Tilter (known across chemical, oil, and food processing facilities as the Electric Drum Handler Pourer Stacker, and designated across Latin American industrial markets as Volteador de tambores semielectrico) is a specialized motorized material handling truck designed for lifting, transporting, rotating, and pouring industrial drums.

Built with a special rolling technology C-frame steel mast and powered by a maintenance-free battery-driven hydraulic power unit, this stacker handles both 55 steel drums and PE plastic drums. Featuring a combined eagle-grip and anchor ear clamping mechanism, 180-degree drum rotation, and optional high-precision weighing scales, this 520kg 550kg semi electric drum dumper lineup provides safe, efficient, single-operator liquid dispensing and pallet stacking.

Advanced Mechanical Engineering & Innovations

Handling heavy chemical and oil drums requires smooth hydraulic elevation, secure clamp retention, and precise discharge angle control:

High Performance Hydraulic Power Unit: Powered by a 1.6 kW hydraulic pump motor and maintenance-free 100 Ah / 12 V battery, delivering smooth vertical lifting speeds up to 120 mm/s.
Special C-Frame Mast Rolling Construction: Engineered using heavy-duty C-channel steel profiles to ensure rigidity, mast stability, and safety during elevated drum tilting operations.
Universal Eagle-Grip & Anchor Ear Clamp: Combined clamping system firmly holds both standard steel drums and rimless or deformation-prone plastic drums without slipping during 180-degree tilt cycles.
Integrated Precision Weighing Scale (Models YL520-1 & YL520A-1): Features an optional digital scale with weighing accuracy up to $\pm 3\%$ , allowing real-time metering during batch mixing and drum pouring.
Electric vs. Manual Rotation Drive:
- YL520 / YL520-1 / YL550: Motorized electric lifting paired with motorized electric drum rotation.
- YL520A / YL520A-1: Motorized electric lifting paired with manual gear hand-crank drum rotation for precise control.

Technical Specifications & Parameter Matrix

Certified performance metrics, electrical power configurations, turning radii, and unit weights for the complete eagle grip steel plastic drum rotator lineup:

Model	Load Capacity	Net Weight	Wheel Dimension (Front / Rear)	Turning Radius	Pump Unit Power	Battery	Lifting Speed

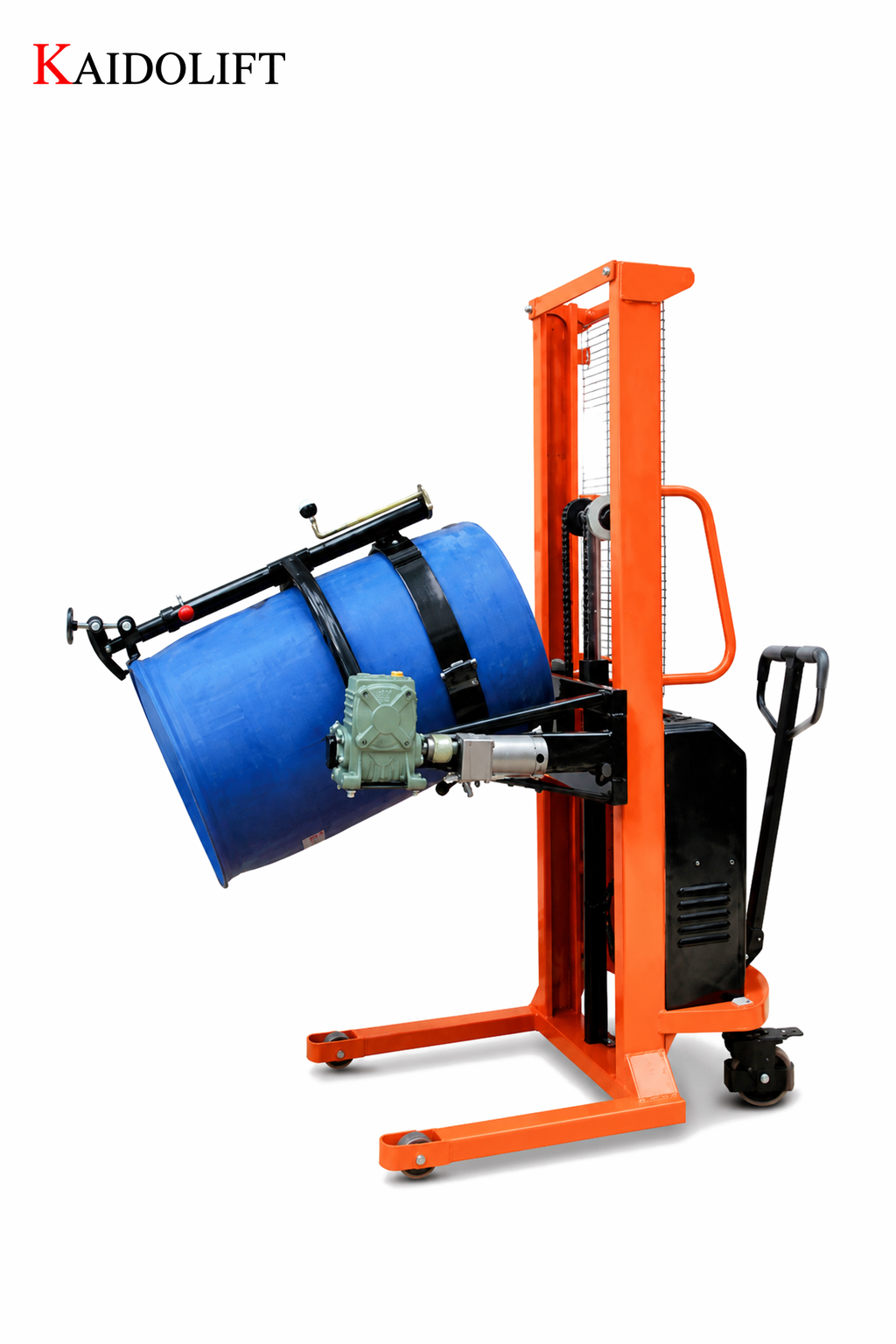

YL520	520 kg	280 kg	$\text{Ø}80 \times 55 / \text{Ø}150 \times 50\text{ mm}$	1620 mm	1.6 kW/h	100 Ah / 12 V	120 mm/s

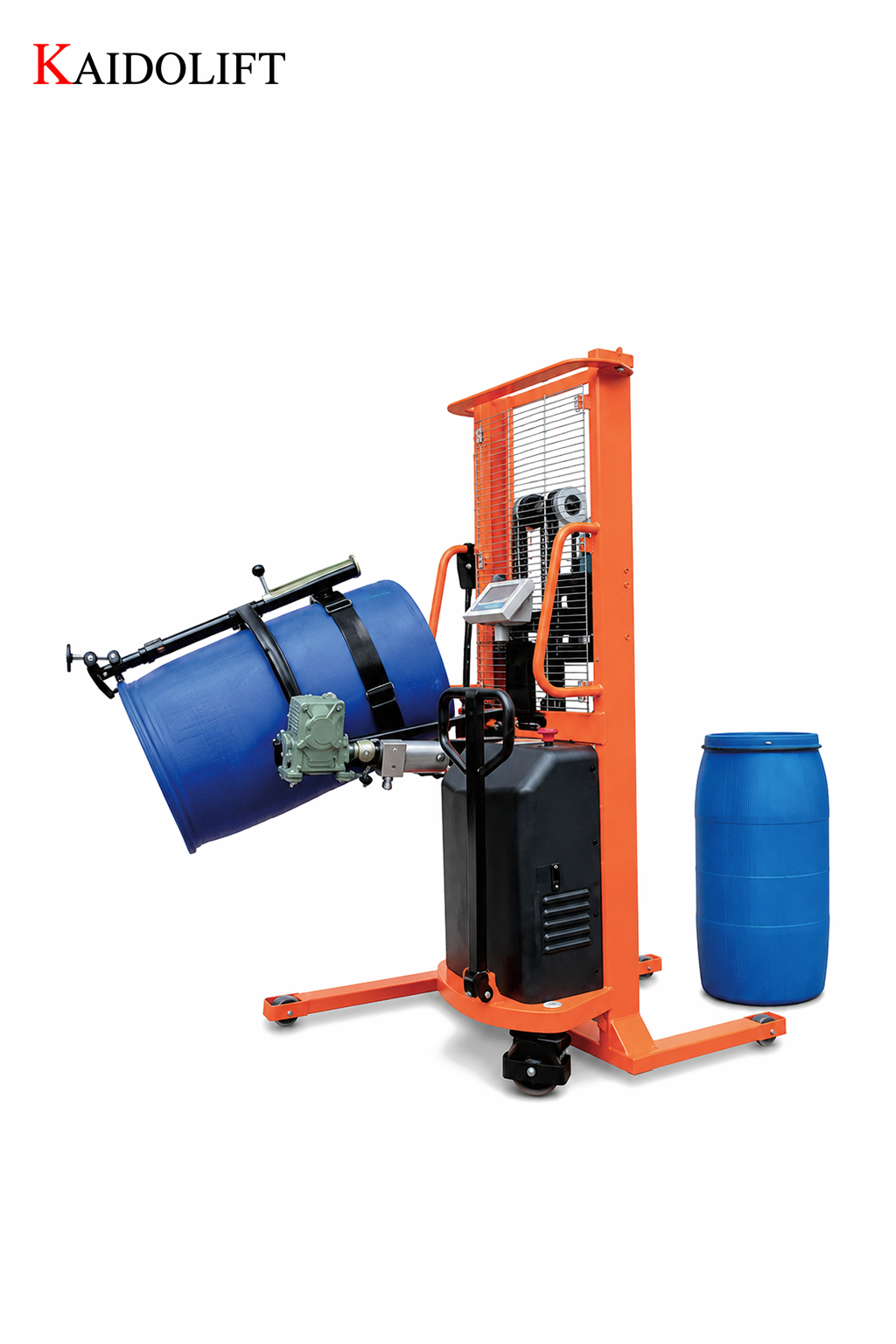

YL520-1 (with scale)	520 kg	308 kg	$\text{Ø}80 \times 55 / \text{Ø}150 \times 50\text{ mm}$	1620 mm	1.6 kW/h	100 Ah / 12 V	120 mm/s

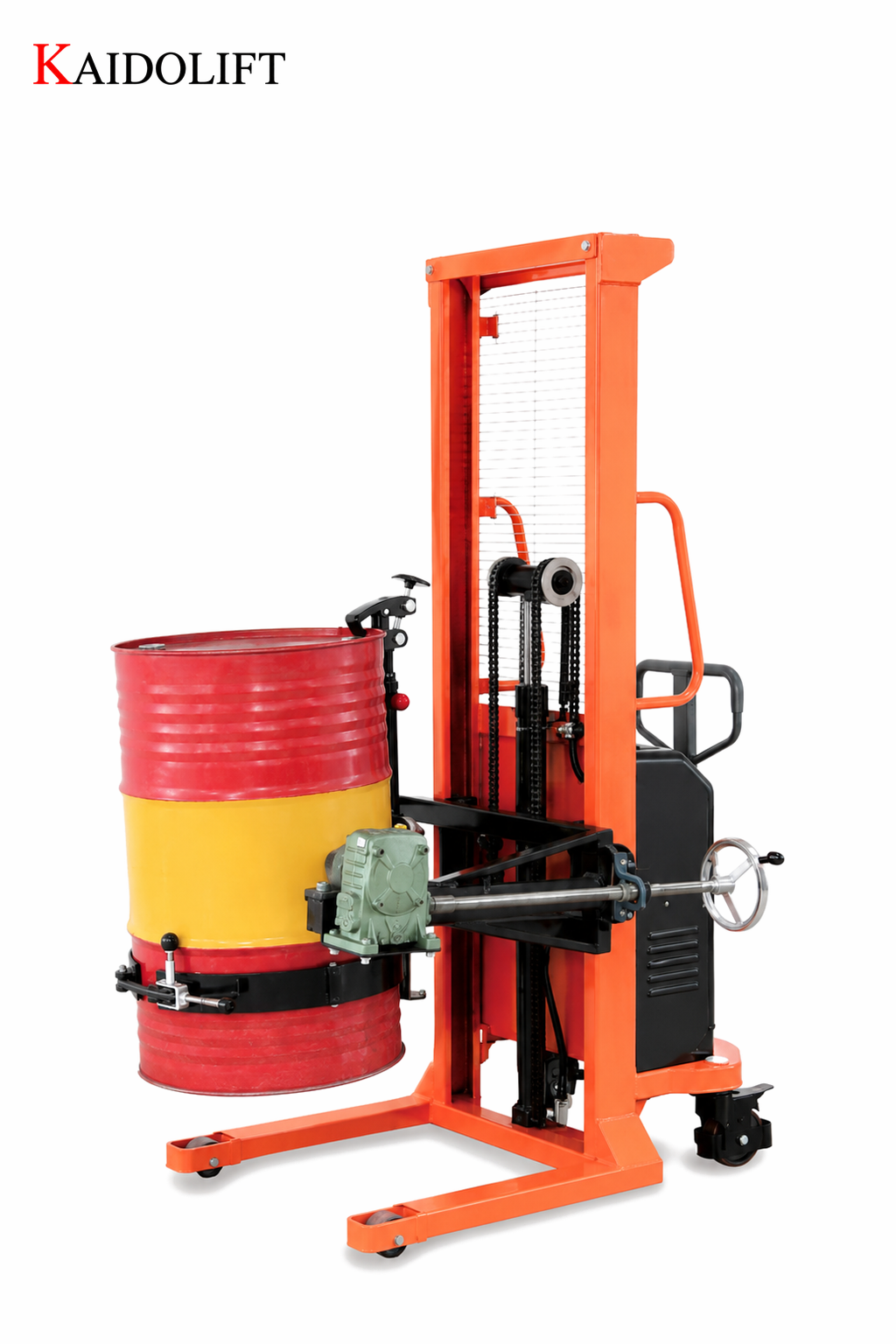

YL520A	520 kg	269 kg	$\text{Ø}80 \times 55 / \text{Ø}150 \times 50\text{ mm}$	1620 mm	1.6 kW/h	100 Ah / 12 V	120 mm/s
YL520A-1 (with scale)	520 kg	274 kg	$\text{Ø}80 \times 55 / \text{Ø}150 \times 50\text{ mm}$	1620 mm	1.6 kW/h	100 Ah / 12 V	120 mm/s

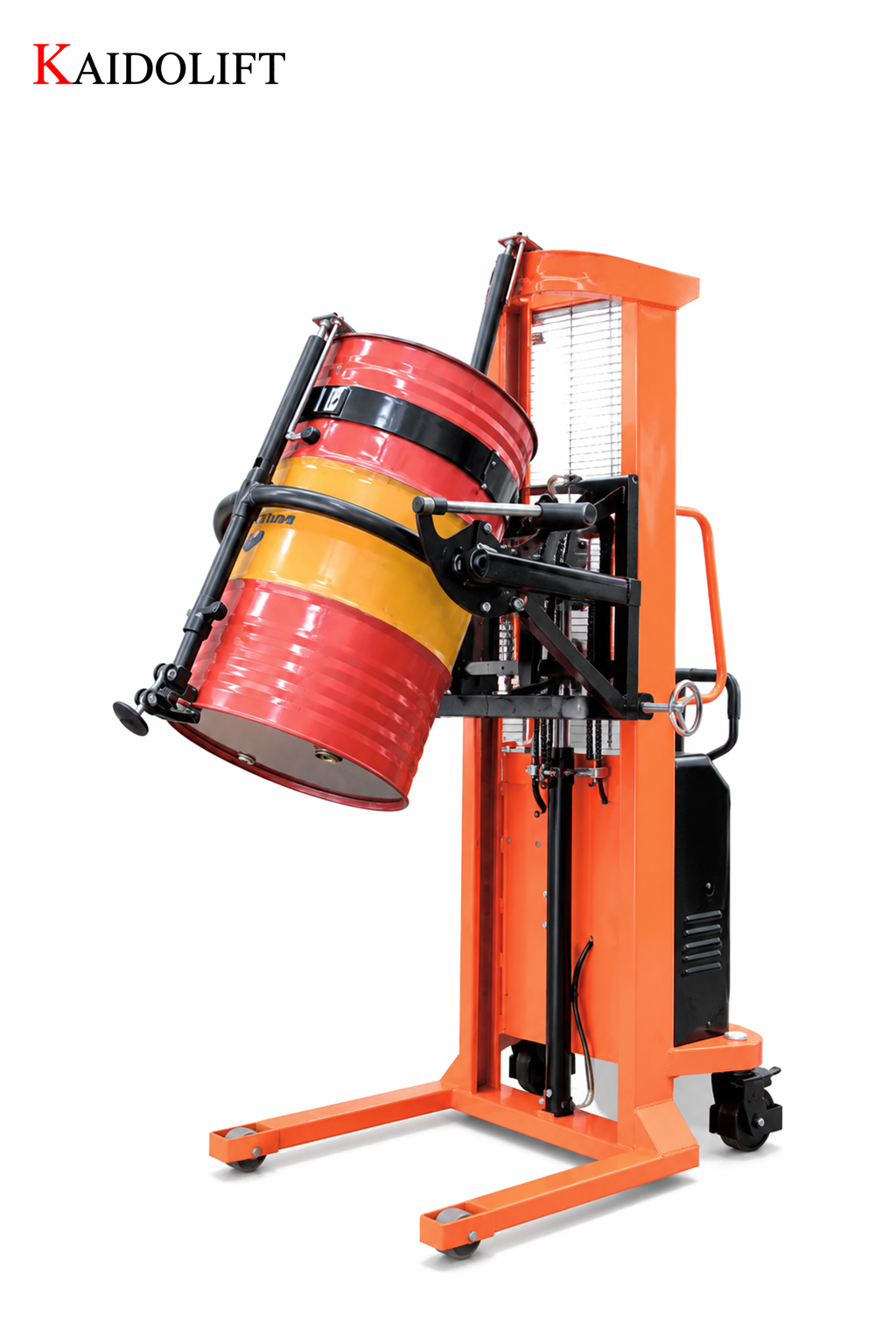

YL550	550 kg	280 kg	$\text{Ø}80 \times 55 / \text{Ø}150 \times 50\text{ mm}$	1620 mm	1.6 kW/h	100 Ah / 12 V	120 mm/s

B2B Procurement Note: Units feature a compact 1620 mm turning radius and double-wheel base design ( $\text{Ø}80\text{ mm}$ front load rollers and $\text{Ø}150\text{ mm}$ rear steer casters), making them suitable for narrow aisle operation inside chemical storage vaults.

Critical Capacity Management & Drive Dynamics

Plant operators utilizing the drum lifter tilter with digital scale units must select the drive and metering configuration based on operational flow:

Fully Electric vs. Semi-Manual Operation:
- Electric Lift & Electric Rotate (YL520 / YL520-1 / YL550): Ideal for high-frequency drum tipping into tall hoppers or vats where automated tilt positioning reduces cycle times.
- Electric Lift & Manual Rotate (YL520A / YL520A-1): Ideal for fine-metered liquid dispensing where manual hand-crank feedback gives operators direct feel over pour speeds.
Integrated Scale Calibration: Models YL520-1 and YL520A-1 consolidate material transport and inventory weight verification into a single step, eliminating the need for floor platform scales.

Industrial Applications

Chemical Processing & Mixing Facilities: Operators use the Volteador de tambores semielectrico to elevate 55-gallon chemical drums and pour raw materials directly into high-rim reaction vats.
Petroleum Lubricant Warehouses: Warehouse staff deploy the Electric Drum Handler Pourer Stacker to move, stack, and dispense engine oil, grease, and hydraulic fluid from steel drums.
Food & Beverage Production Plants: Processing teams utilize the c-frame electric hydraulic drum stacker with digital scales to meter liquid ingredients, syrups, and flavorings during batch preparation.
Pharmaceutical Manufacturing: Production crews deploy the Semi Electric Drum Lifter Tilter for safe, low-fatigue transport and dumping of raw powder and liquid containers in cleanroom staging areas.
