Product Overview
The Hydraulic Heavy Duty Drum Carrier Scale Model (commonly referred to across processing plants and logistics centers as the Foot Pump Drum Trolley with Digital Scale, and specified across Latin American industrial sites as Transportador hidraulico pesado de tambores con báscula) is an ergonomic, heavy-duty material handling truck designed for lifting, transporting, pallet loading, and weighing 55-gallon steel drums and 200L rimmed plastic drums.
Engineered with a high-capacity foot-operated hydraulic pump, specialized eagle-grip clamping mechanisms, and straddle leg frame designs, this carrier allows a single worker to maneuver heavy drums through narrow warehouse aisles or load them directly on and off standard shipping pallets. Available with integrated high-accuracy weighing scales (accuracy up to $\pm 3\%$), the DTF450 series simplifies inventory checks and batching workflows across industrial facilities.
Advanced Mechanical Engineering & Innovations
Handling heavy steel and plastic barrels demands rigid frame geometry, effortless foot pedal pumping, and versatile leg layouts:

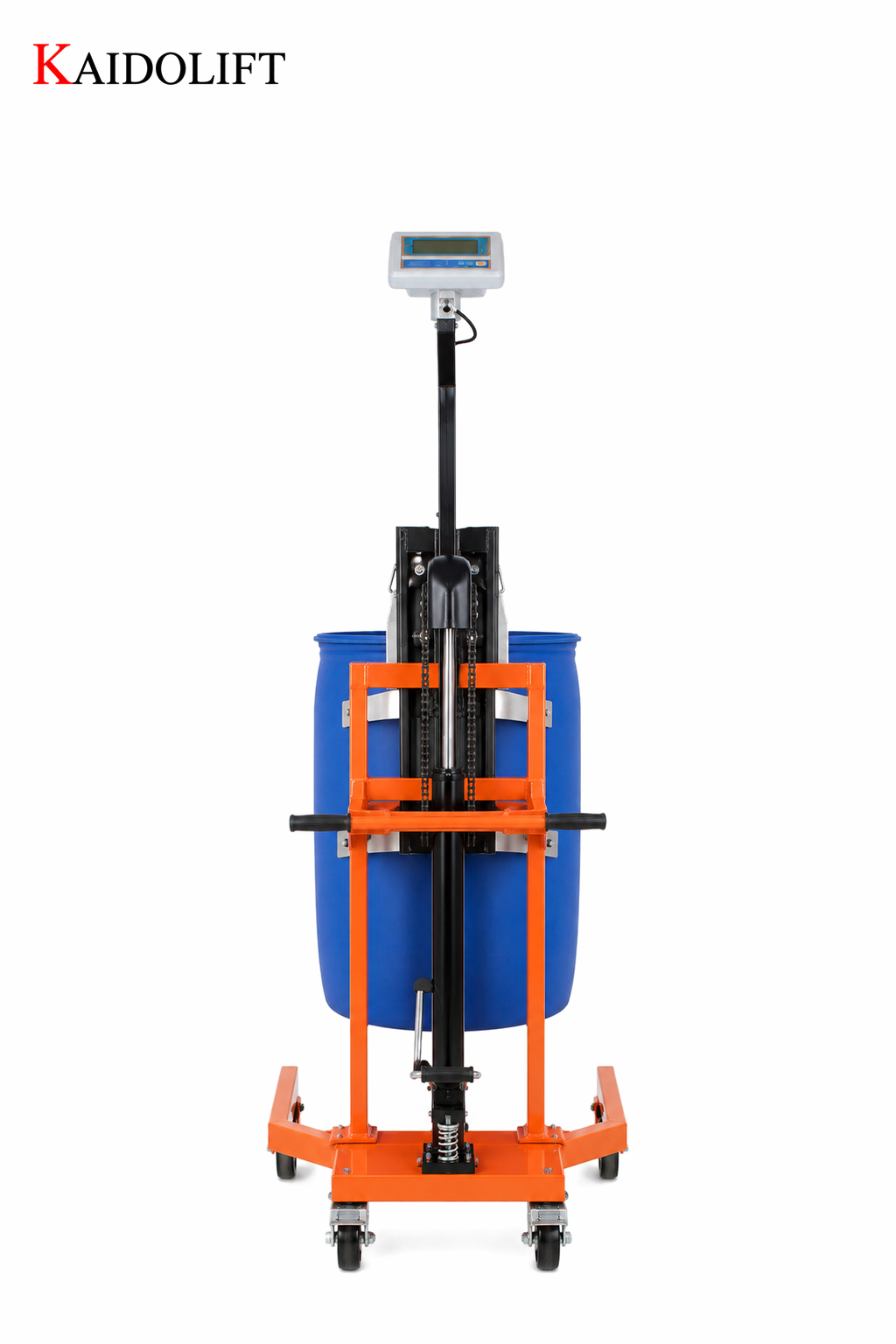

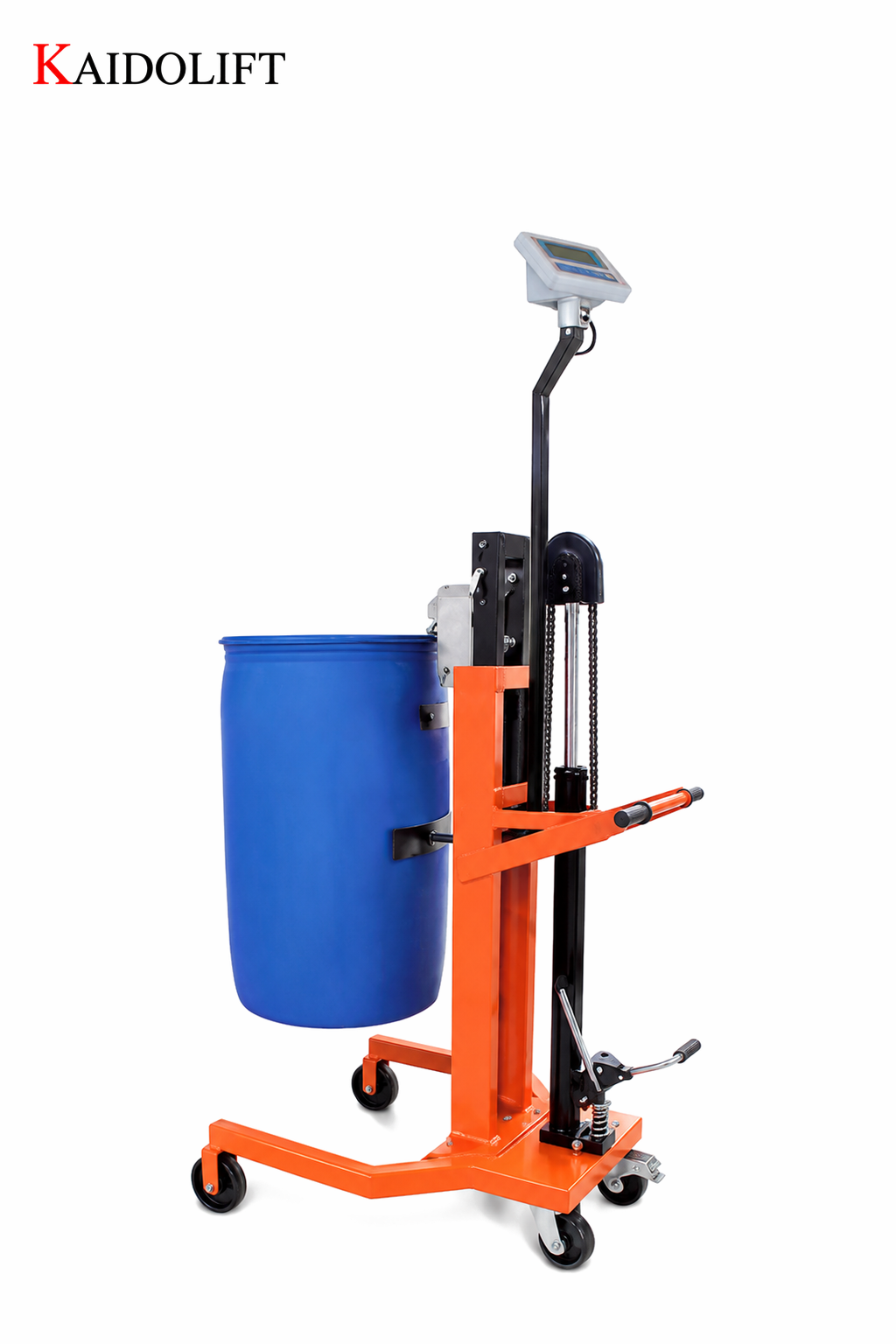

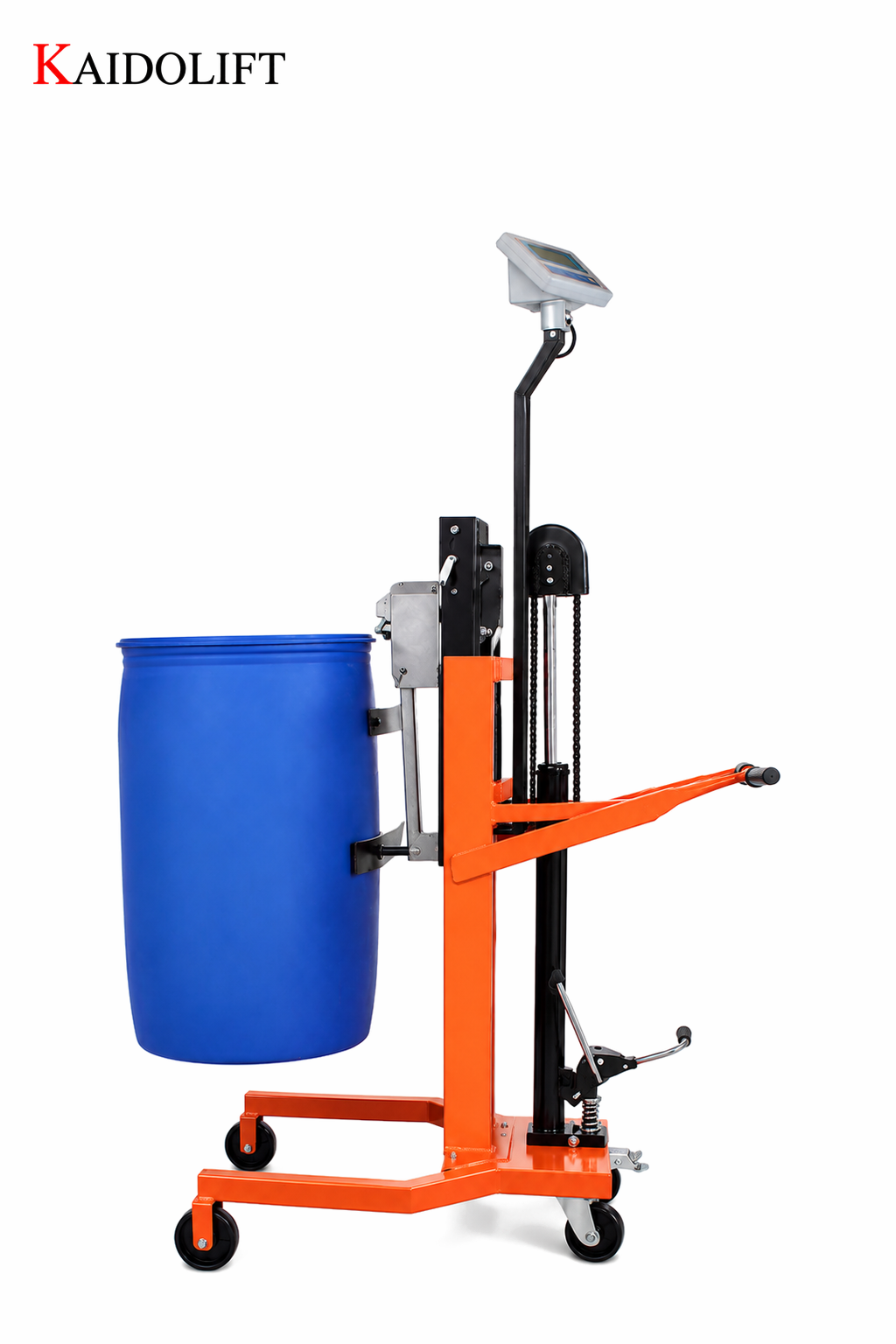

Integrated Digital Weighing Scale Option (Models DTF450A-1, DTF450B-1, DTF450C-1): Outfitted with an integrated digital scale terminal featuring an accuracy up to $\pm 3\%$, consolidating barrel transport, batch mixing verification, and inventory weighing into a single task.
Versatile Straddle Leg Frame Configurations:

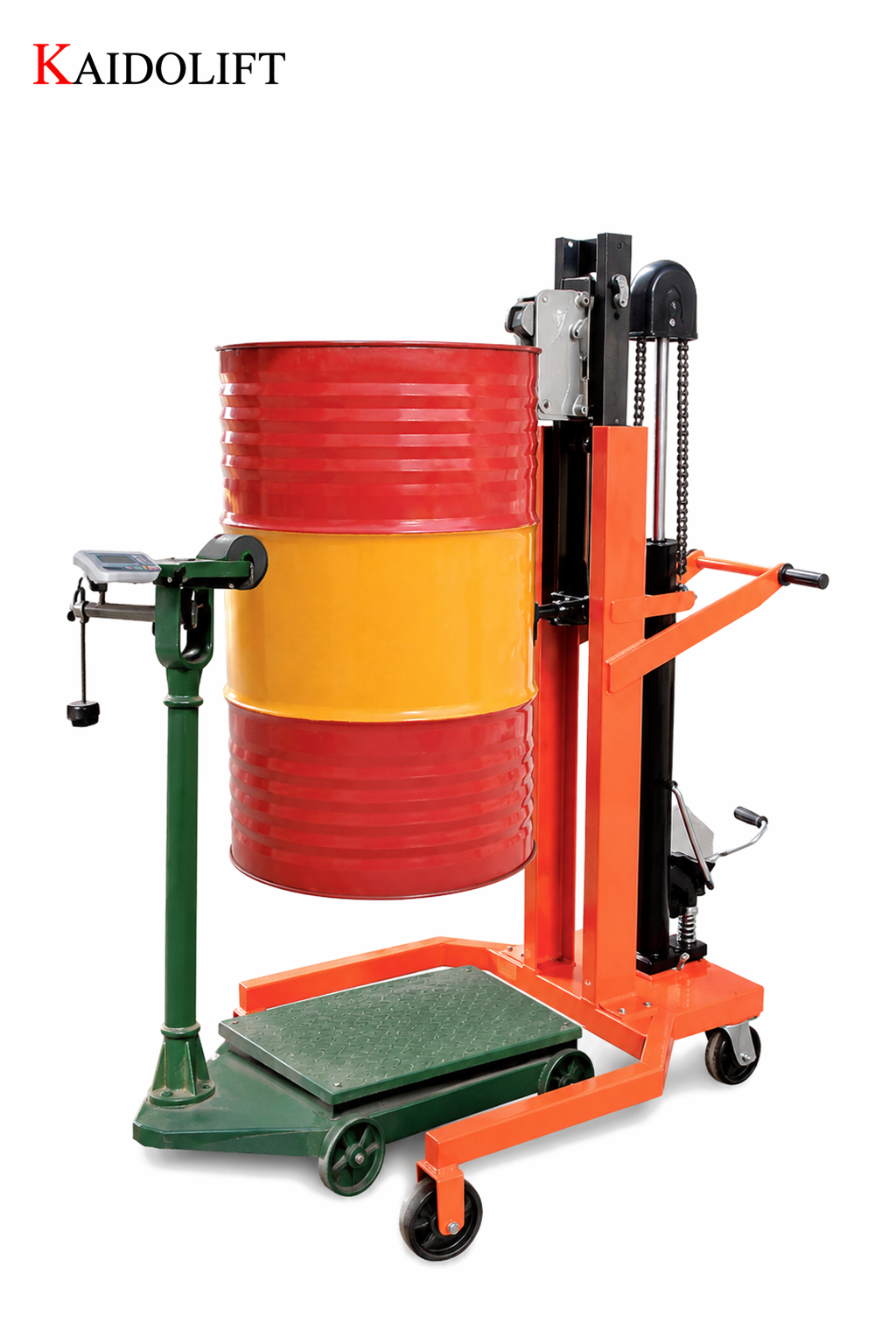

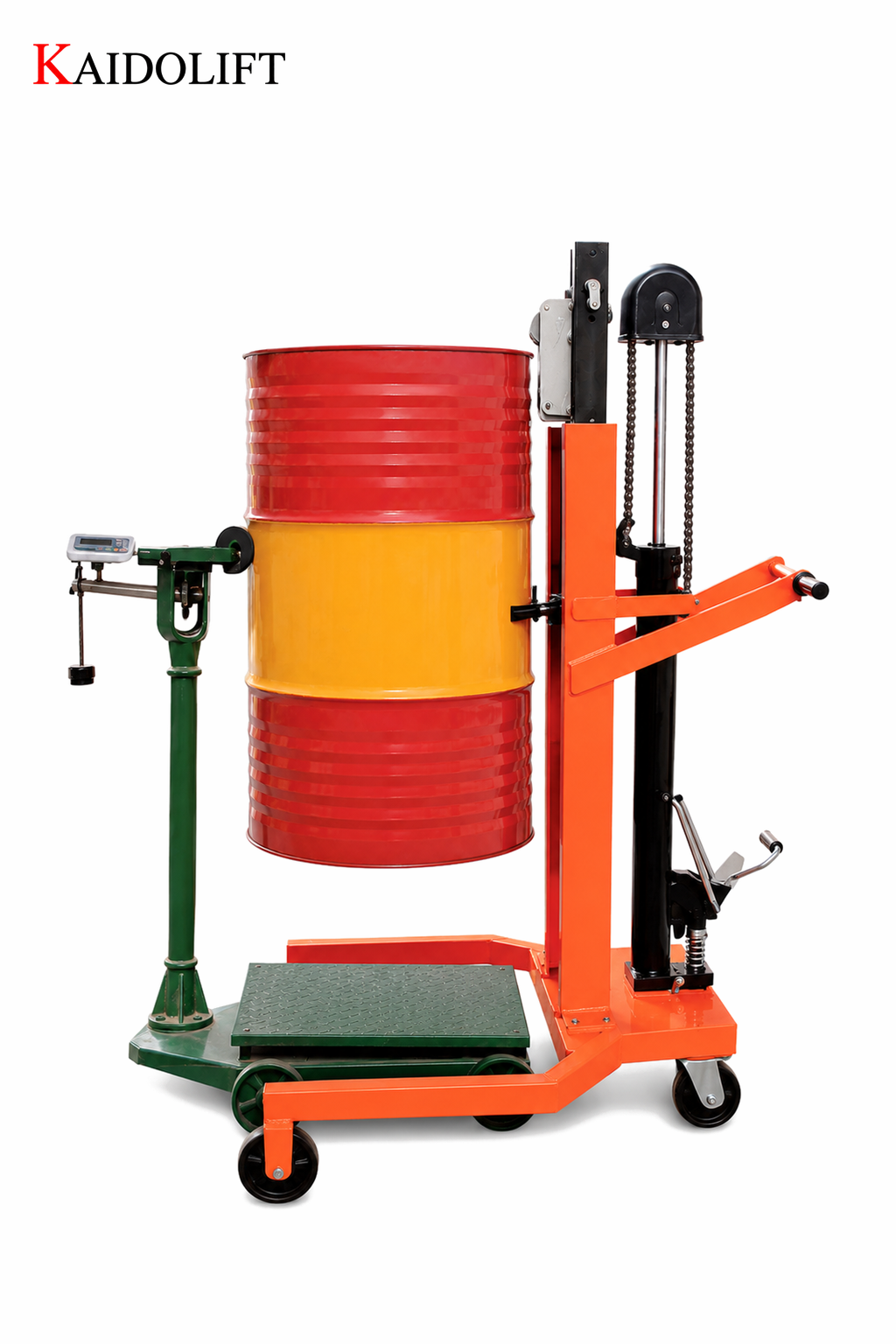

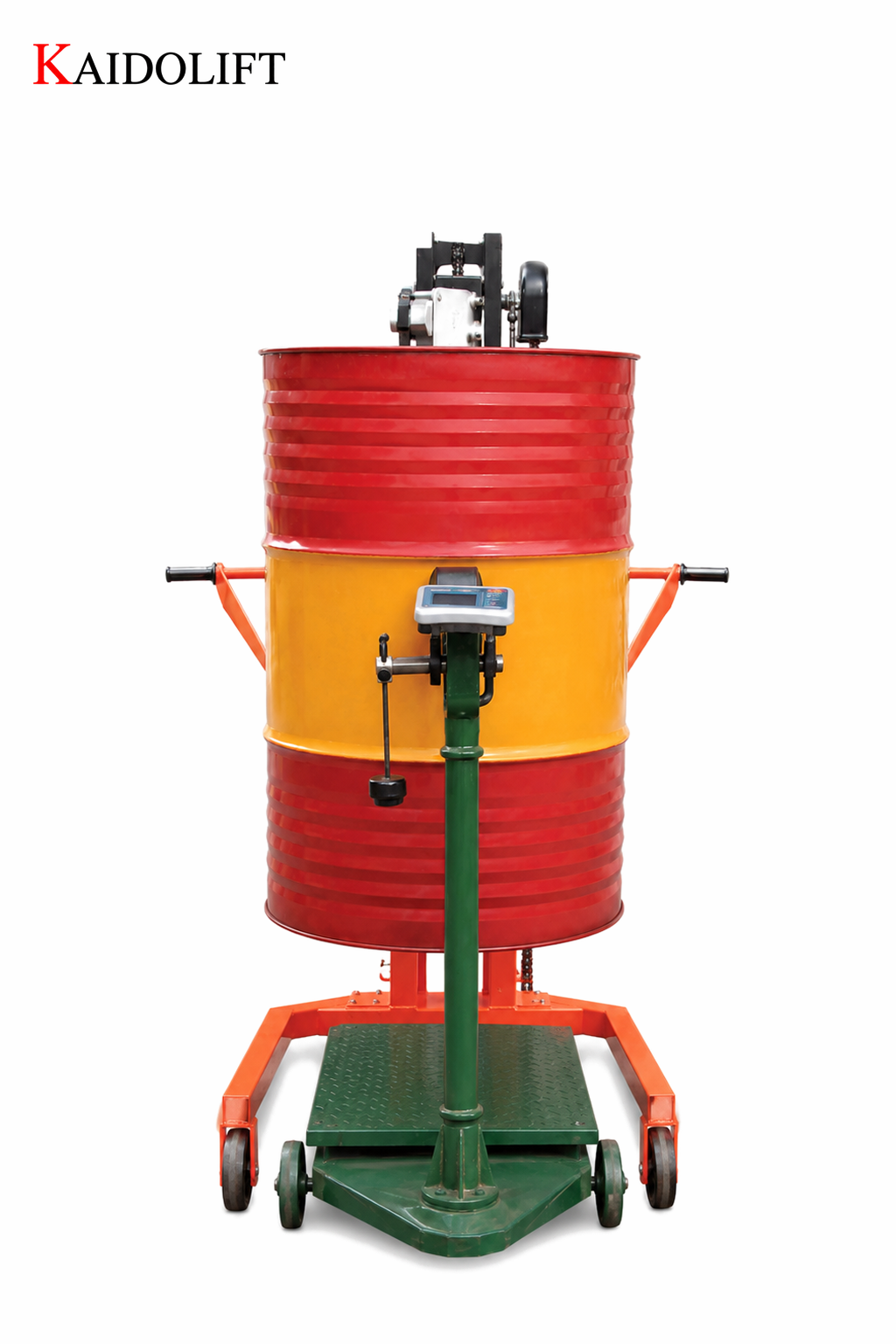

DTF450A / DTF450A-1: Designed with a compact leg width for high maneuverability in tight, narrow spaces.

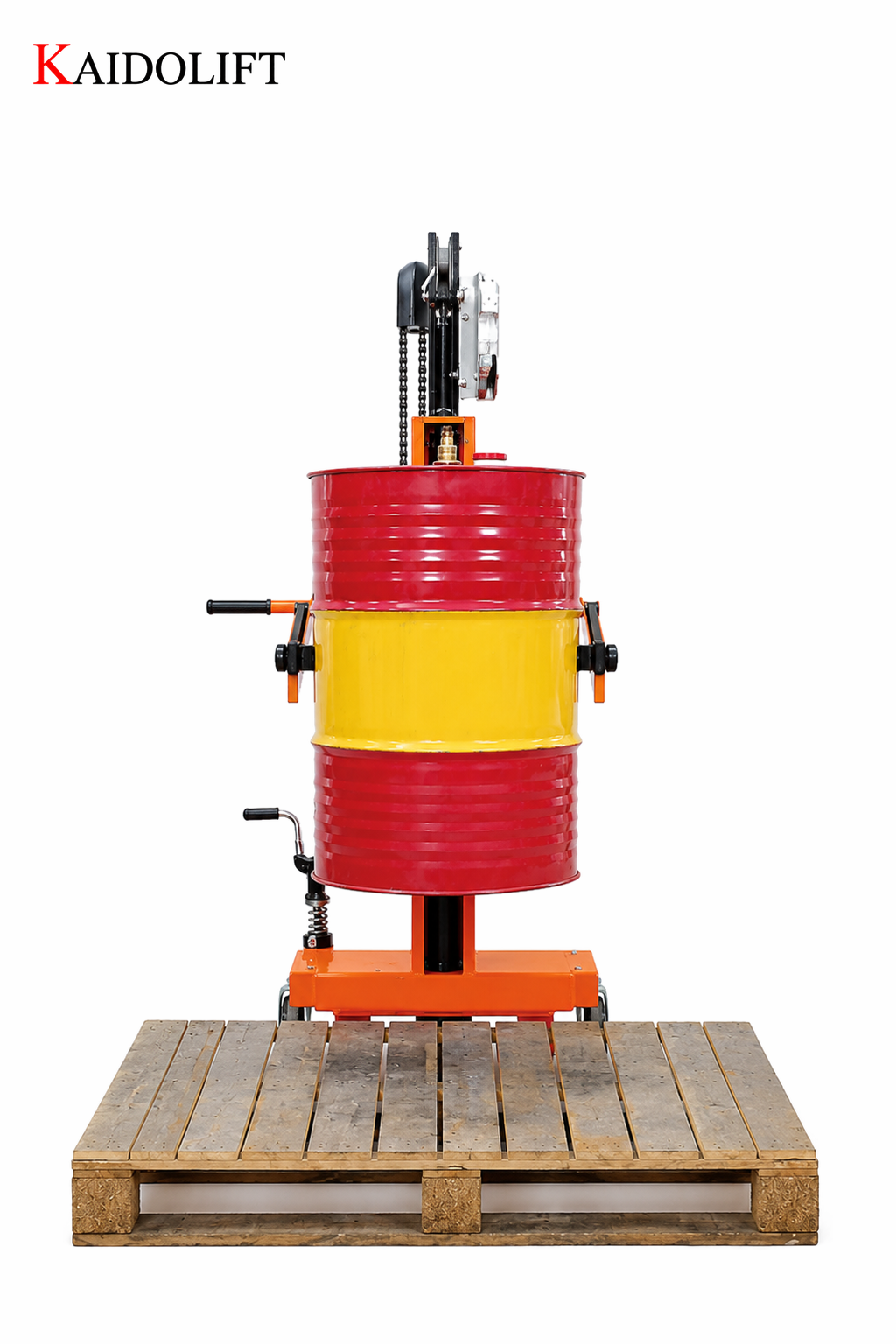

DTF450A-D: Outfitted with super-low support legs to roll under ultra-low clearance machinery, racks, and pallets.

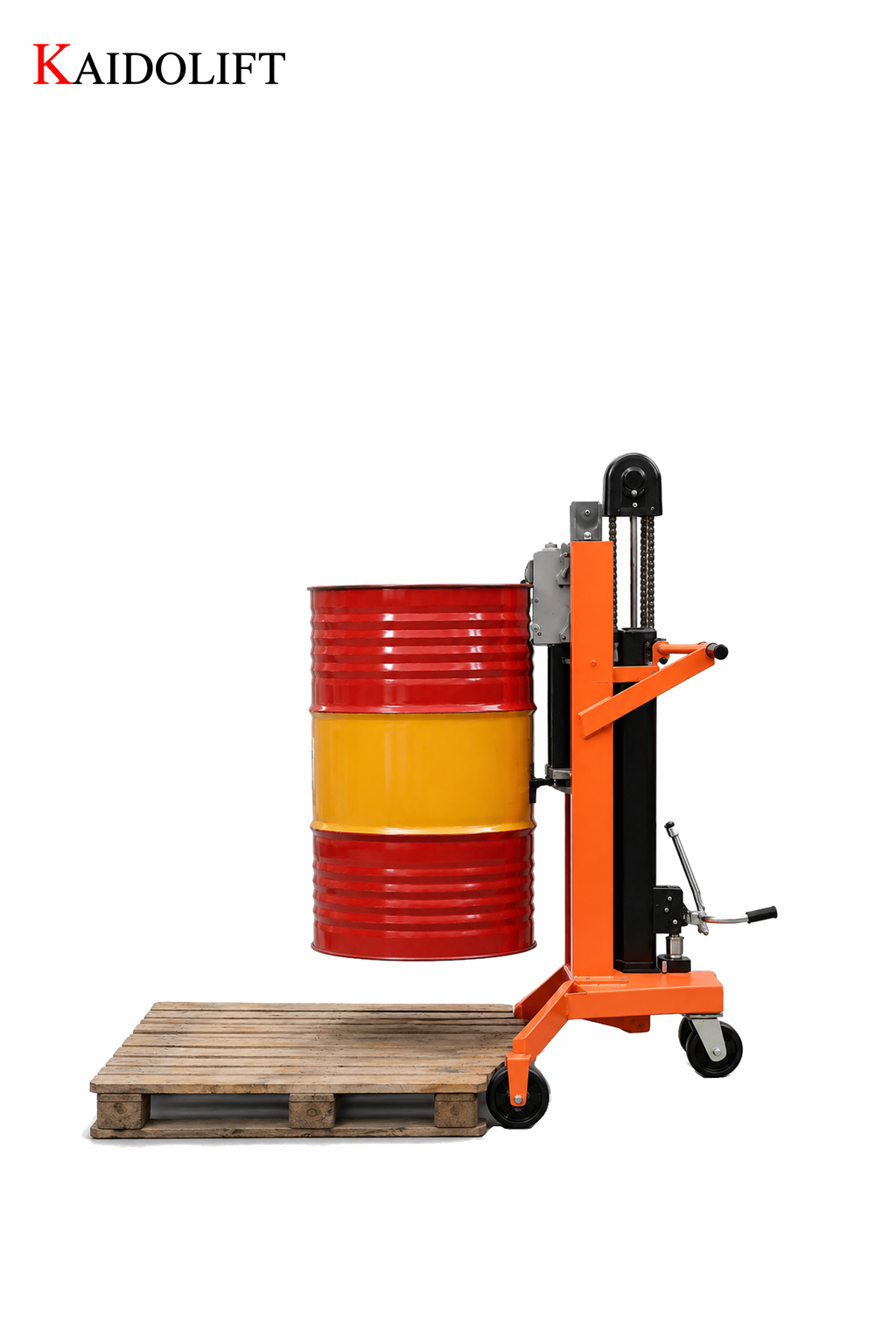

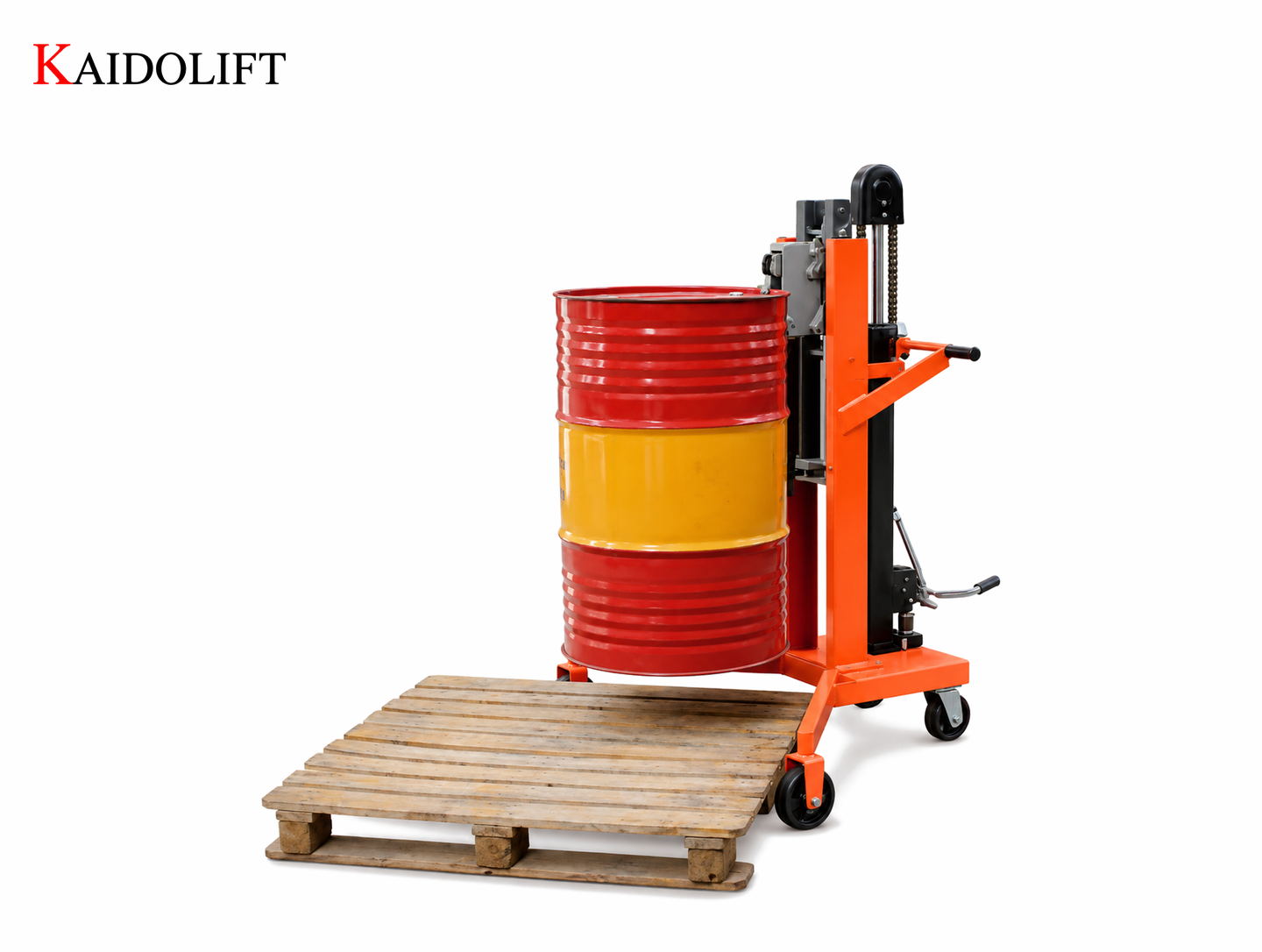

DTF450B / DTF450B-1 / DTF450B-S: Features wide straddle legs specifically designed for placing drums on and off standard pallets.

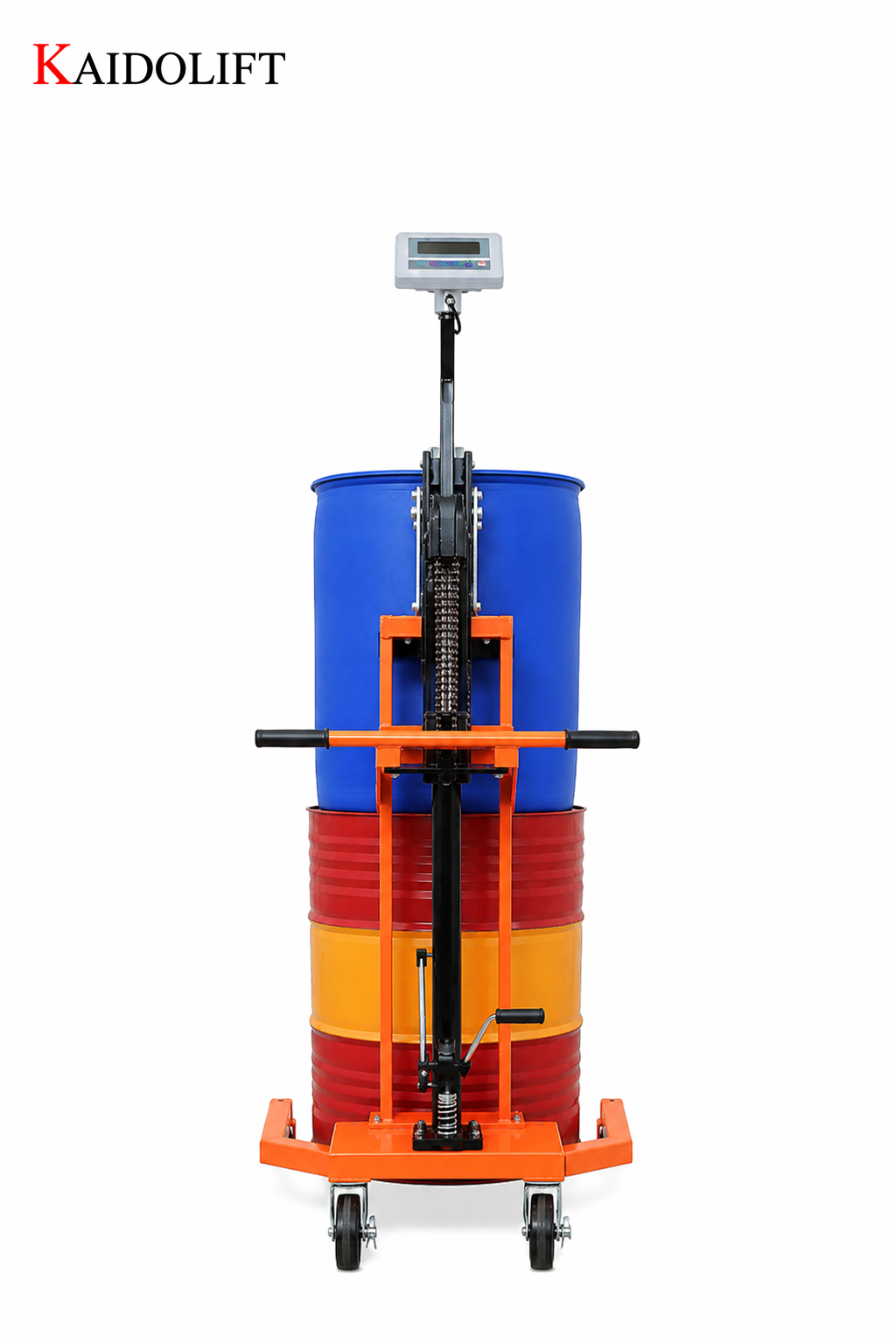

DTF450C / DTF450C-1: Features an extended vertical mast frame optimized for high-reach placement and double-tier drum stacking operations.
Automatic Eagle-Grip Rim Clamping: Universal self-locking steel jaws automatically grip the top chime of steel or plastic drums securely during elevation and transit.
Heavy-Duty Wheel Assembly: Outfitted with smooth-rolling $\text{Ø}150 \times 50\text{ mm}$ front load rollers and $\text{Ø}125 \times 50\text{ mm}$ rear swivel casters with foot brakes for secure positioning.
Technical Specifications & Parameter Matrix
Certified engineering specifications, wheel configurations, unit net weights, and model variants for the complete eagle grip heavy duty drum weigh lifter lineup:
| Model | Load Capacity | Net Weight | Wheel Dimension | Application Focus |
| DTF450A | 450 kg | 114 kg | $\text{Ø}150 \times 50 / \text{Ø}125 \times 50\text{ mm}$ | Narrow space transport |
| DTF450A-1 (with scale) | 450 kg | 132 kg | $\text{Ø}150 \times 50 / \text{Ø}125 \times 50\text{ mm}$ | Narrow space transport + weighing |
| DTF450A-D | 450 kg | 100 kg | $\text{Ø}150 \times 50 / \text{Ø}125 \times 50\text{ mm}$ | Super low profile leg access |
| DTF450B | 450 kg | 114 kg | $\text{Ø}150 \times 50 / \text{Ø}125 \times 50\text{ mm}$ | Pallet loading / offloading |
| DTF450B-1 (with scale) | 450 kg | 136 kg | $\text{Ø}150 \times 50 / \text{Ø}125 \times 50\text{ mm}$ | Pallet loading / offloading + weighing |
| DTF450B-S | 450 kg | 109 kg | $\text{Ø}150 \times 50 / \text{Ø}125 \times 50\text{ mm}$ | Heavy duty stainless construction variant |
| DTF450C | 450 kg | 121 kg | $\text{Ø}150 \times 50 / \text{Ø}125 \times 50\text{ mm}$ | High-reach stacking & palletizing |
| DTF450C-1 (with scale) | 450 kg | 145 kg | $\text{Ø}150 \times 50 / \text{Ø}125 \times 50\text{ mm}$ | High-reach stacking + weighing |
B2B Procurement Note: All DTF450 series models share a standardized 450 kg load capacity. Selection should be guided by space constraints (Series A), pallet access requirements (Series B), or high vertical reach needs (Series C).
Critical Capacity Management & Safe Rigging Dynamics
Plant operators deploying the low profile support leg drum mover series must align structural geometry with ground clearances and task requirements:
Pallet & Equipment Clearance Matching:

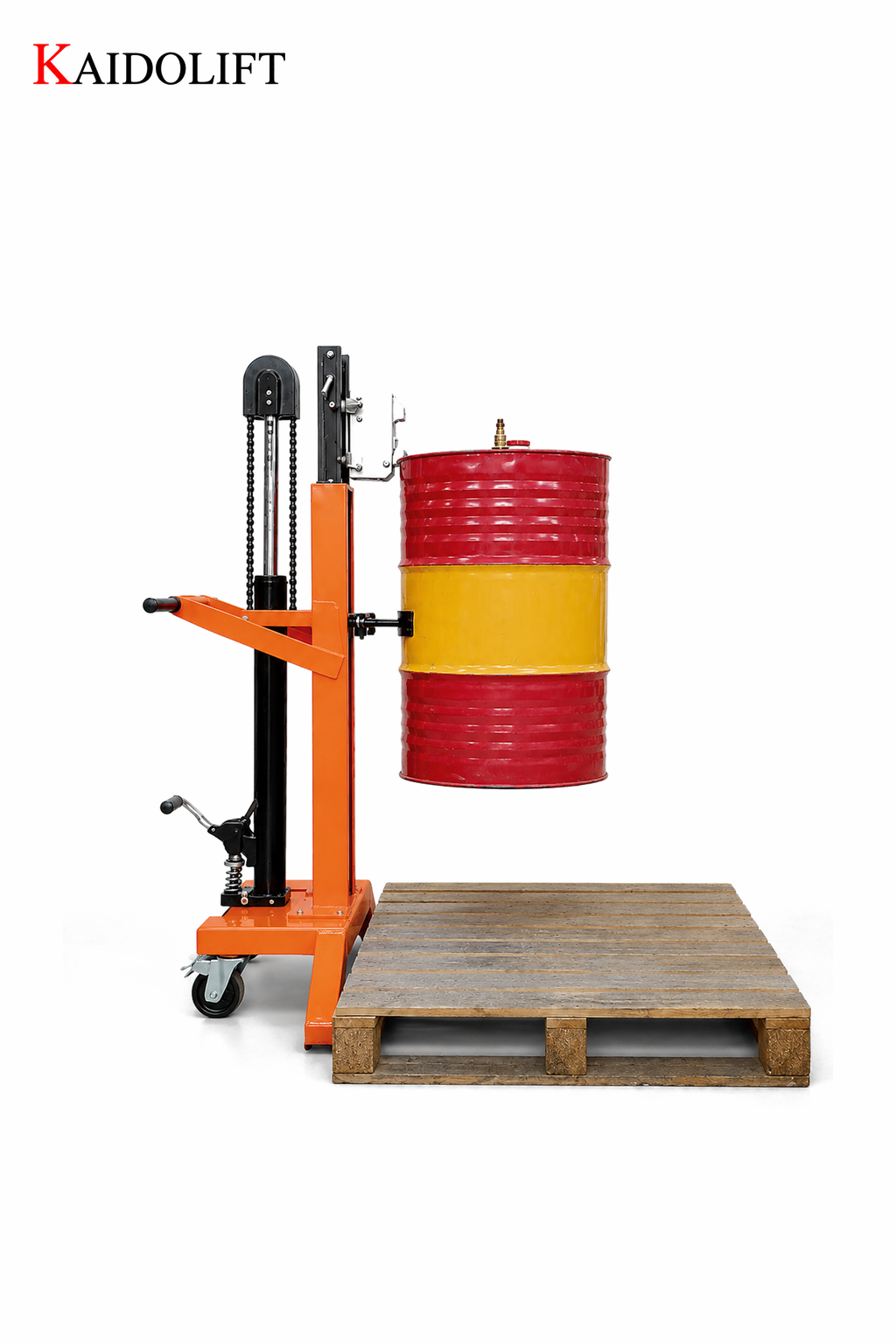

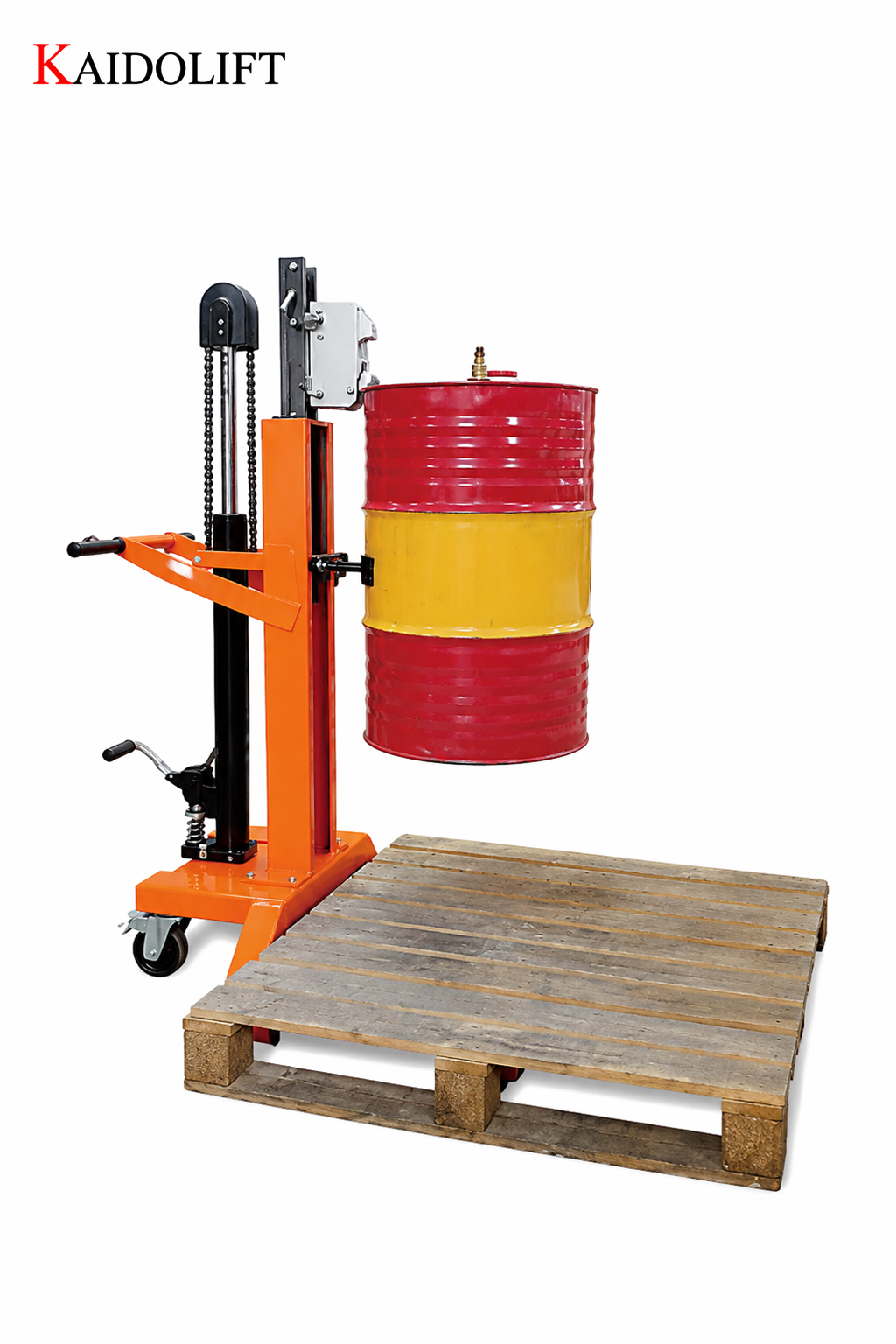

Low-Clearance Applications: Use DTF450A-D where equipment undersides present strict height limits.

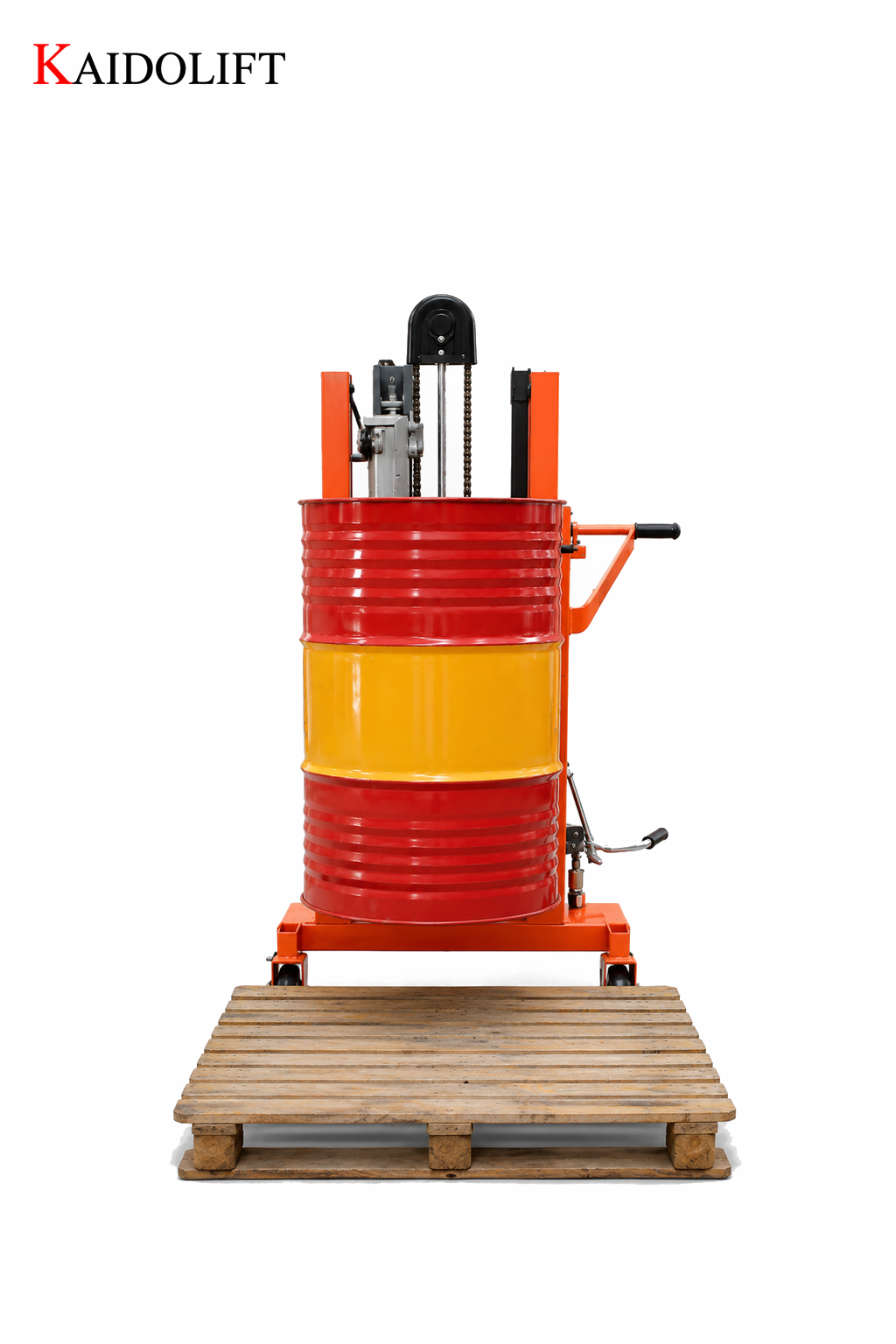

On/Off Pallet Operations: Specify DTF450B or DTF450B-1 to straddle pallet corners for direct drum placement.

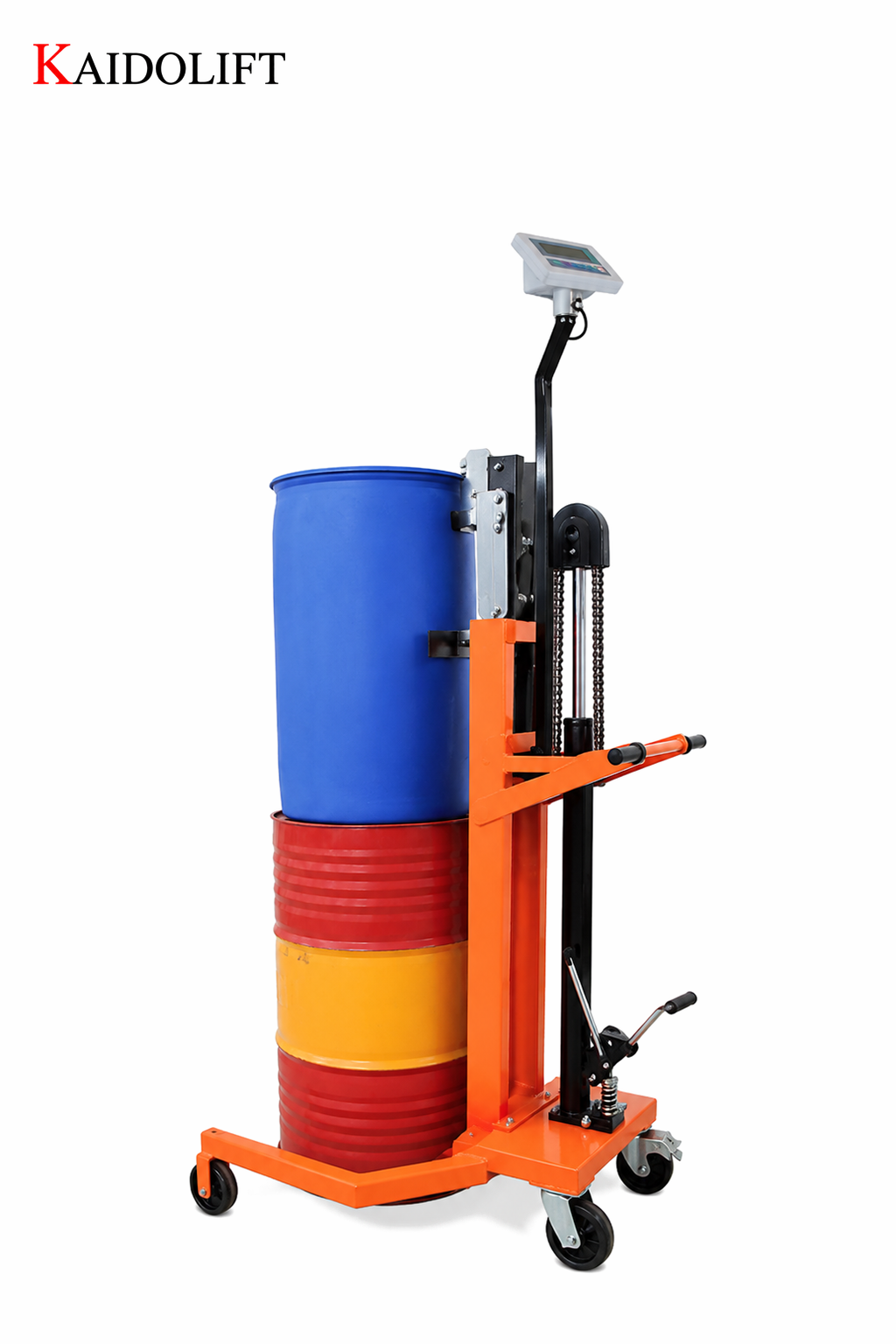

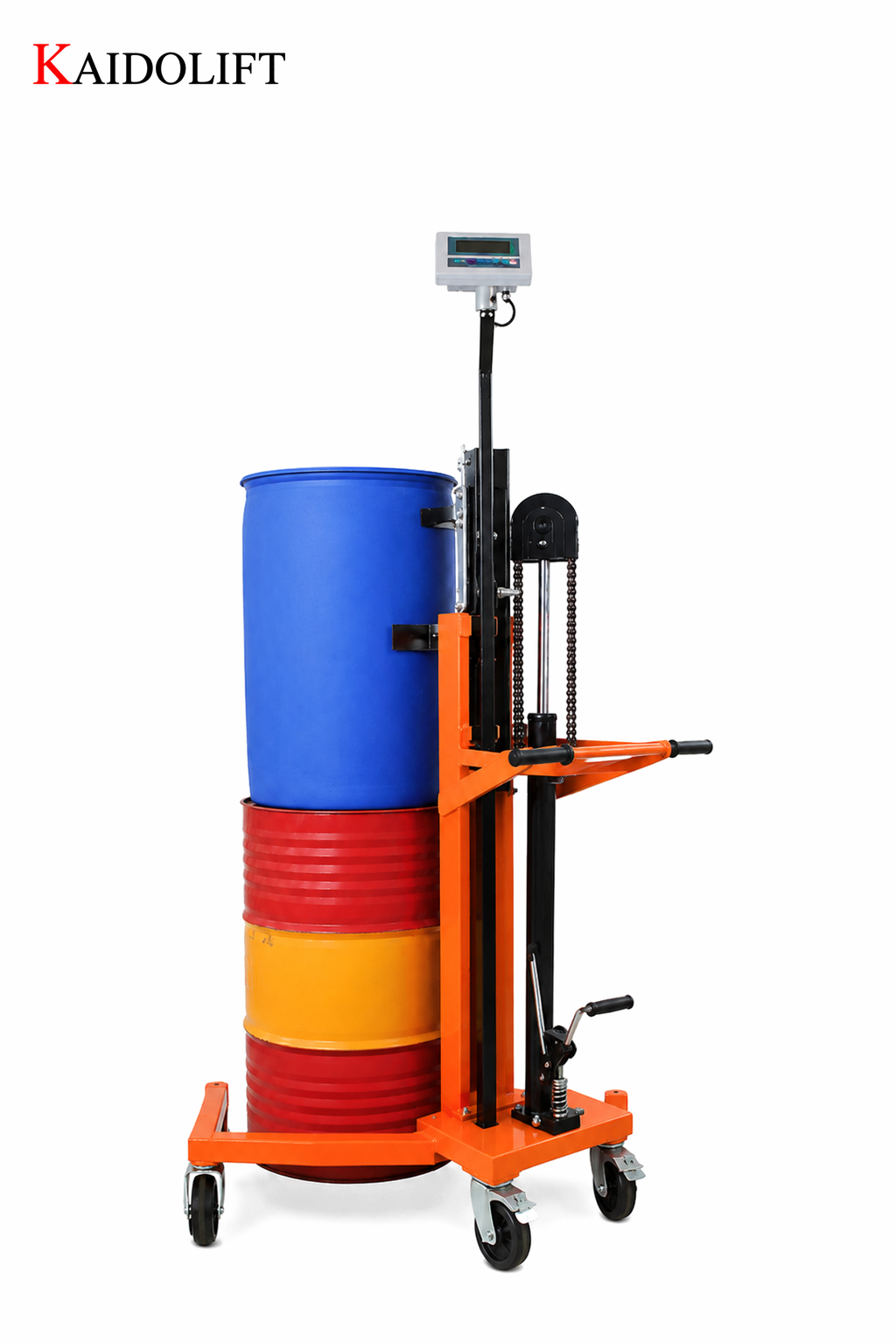

Tiered Stacking Operations: Deploy DTF450C or DTF450C-1 for elevated mast height when double-stacking drums or placing them onto higher platforms.
Integrated Process Weighing: Models equipped with scales (-1 suffix) eliminate dedicated floor scale stops, speeding up chemical compounding, receiving, and shipping processes.
Industrial Applications
Chemical Compounding & Mixing Facilities: Operators utilize the Transportador hidraulico pesado de tambores con báscula to transport, weigh, and feed liquid raw materials into production lines.
Petroleum & Lubricant Distribution Warehouses: Facility personnel deploy the Foot Pump Drum Trolley with Digital Scale to offload heavy oil barrels from pallets and record incoming stock weights.
Paint, Resin, and Coating Plants: Warehouse staff use the pallet loading hydraulic drum caddy to move 55-gallon drums directly onto staging pallets.

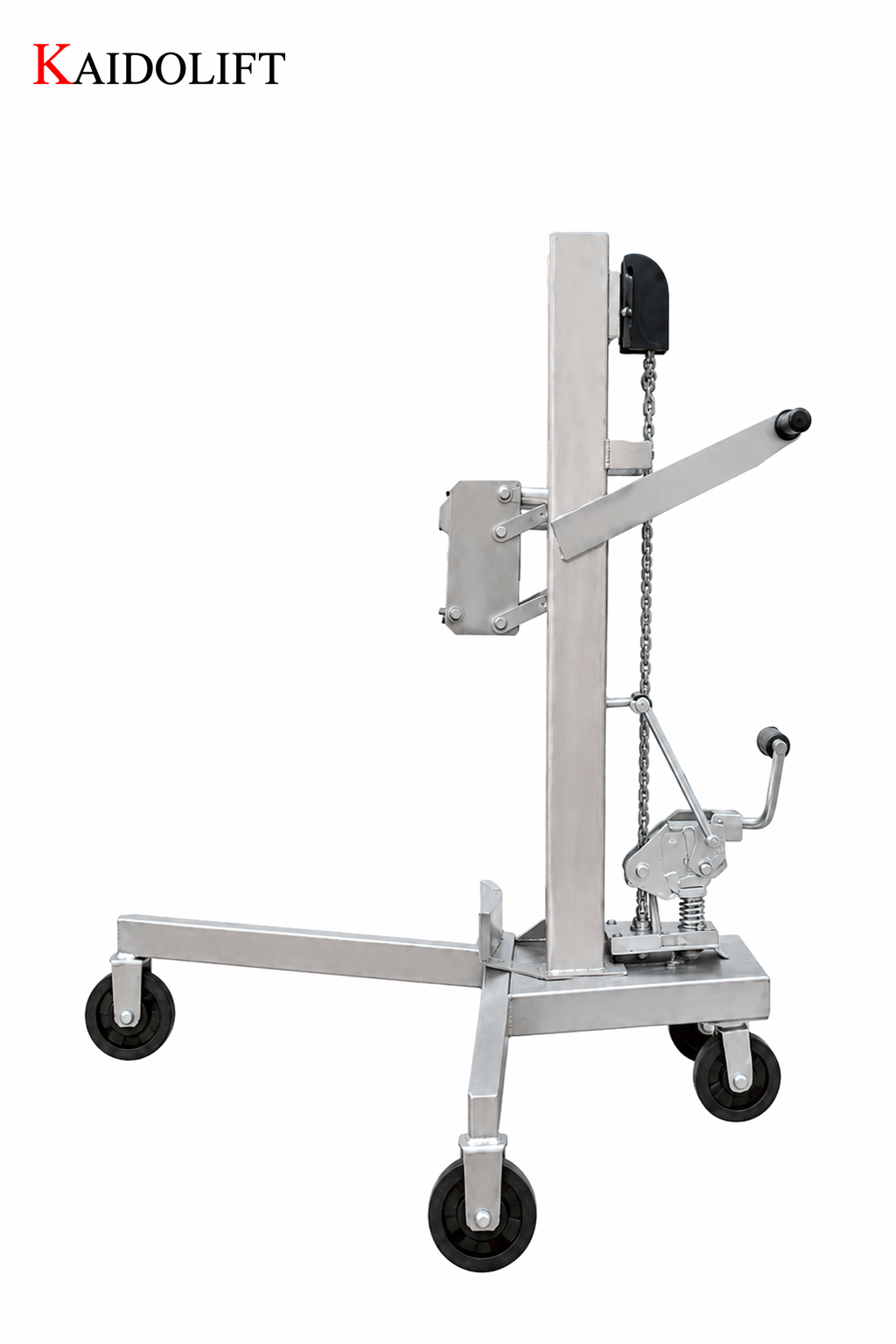

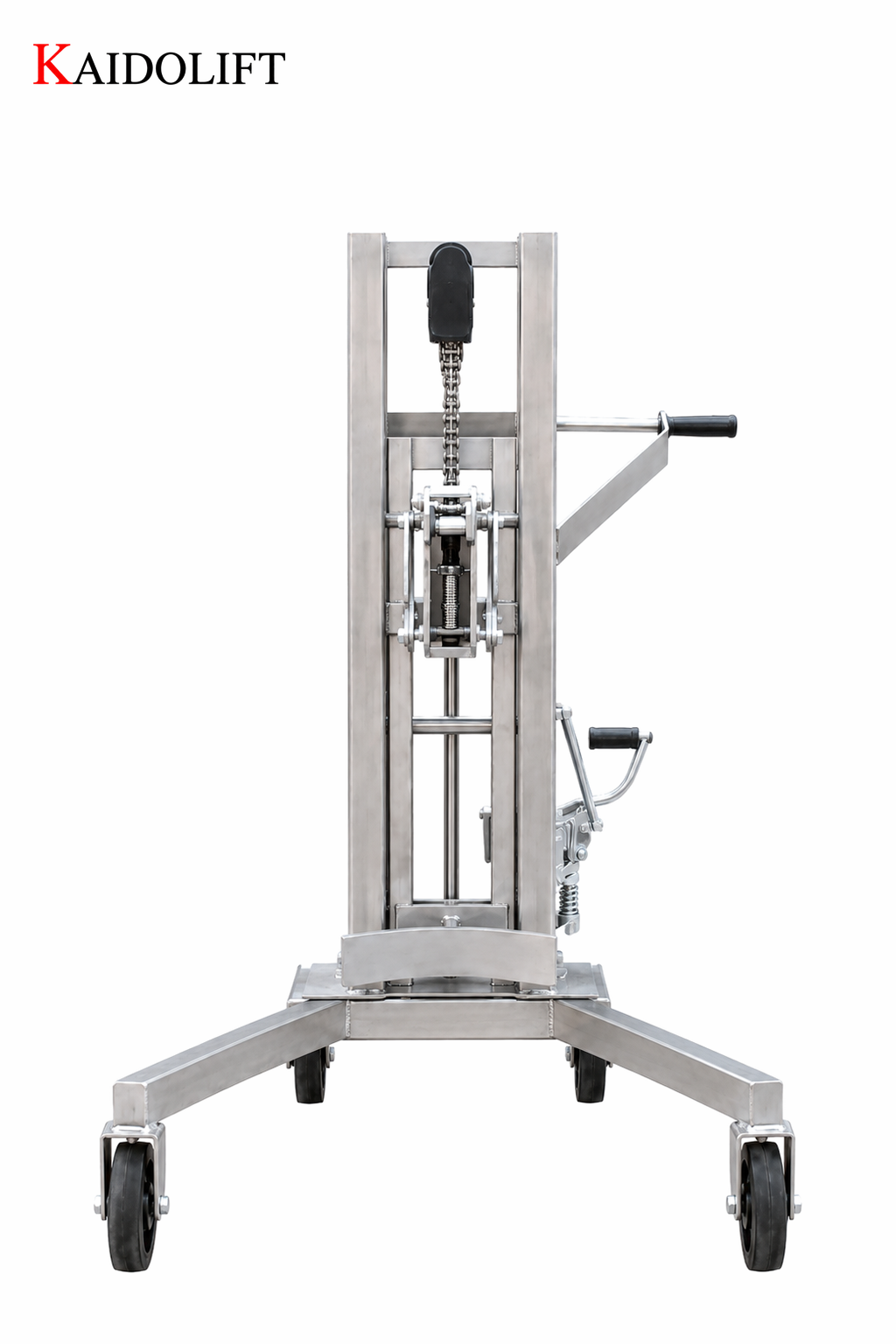

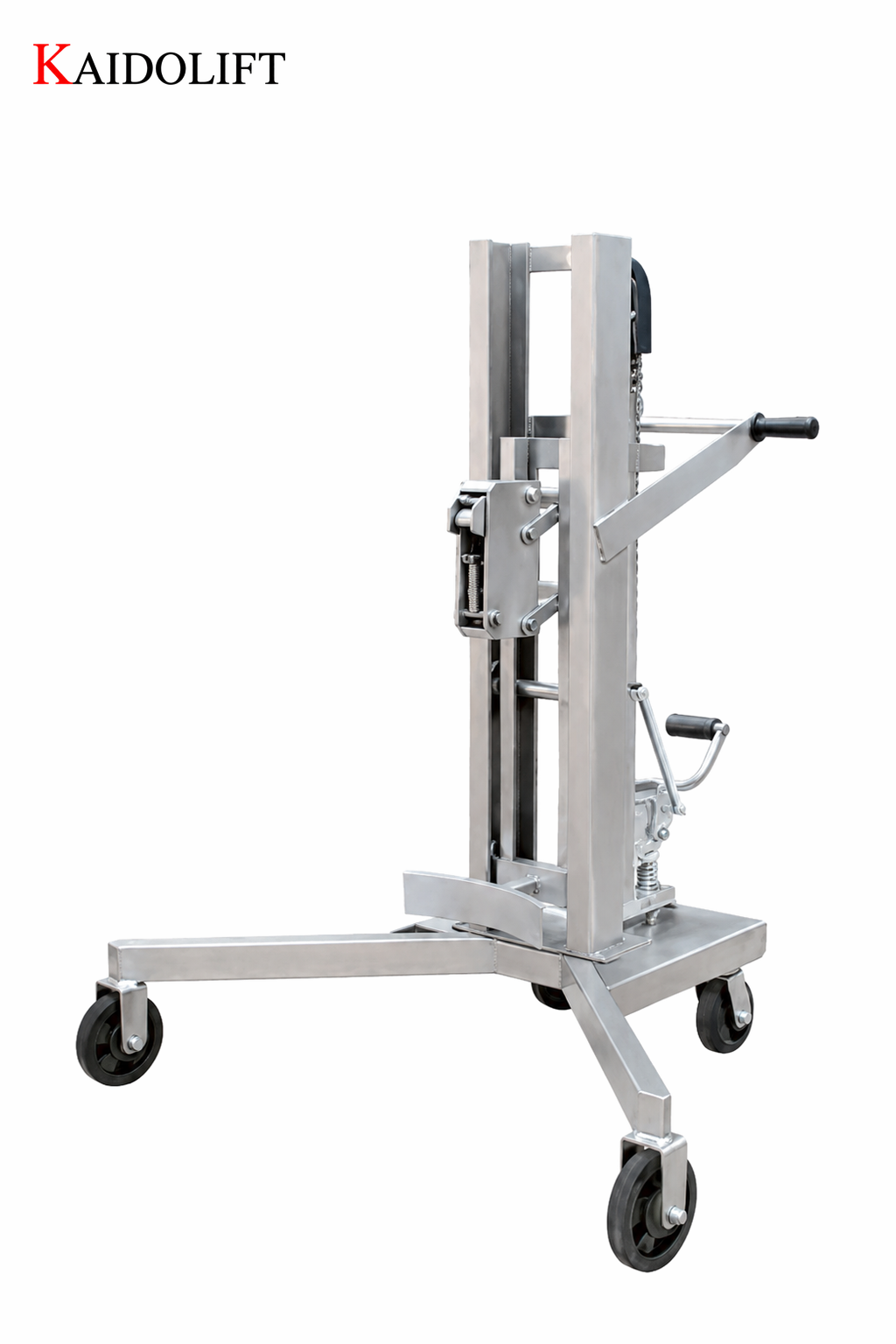

Pharmaceutical & Cleanroom Operations: Plant crews deploy stainless variant DTF450B-S for hygienic transport and loading of liquid containers in wash-down environments.
