Description
Product Overview

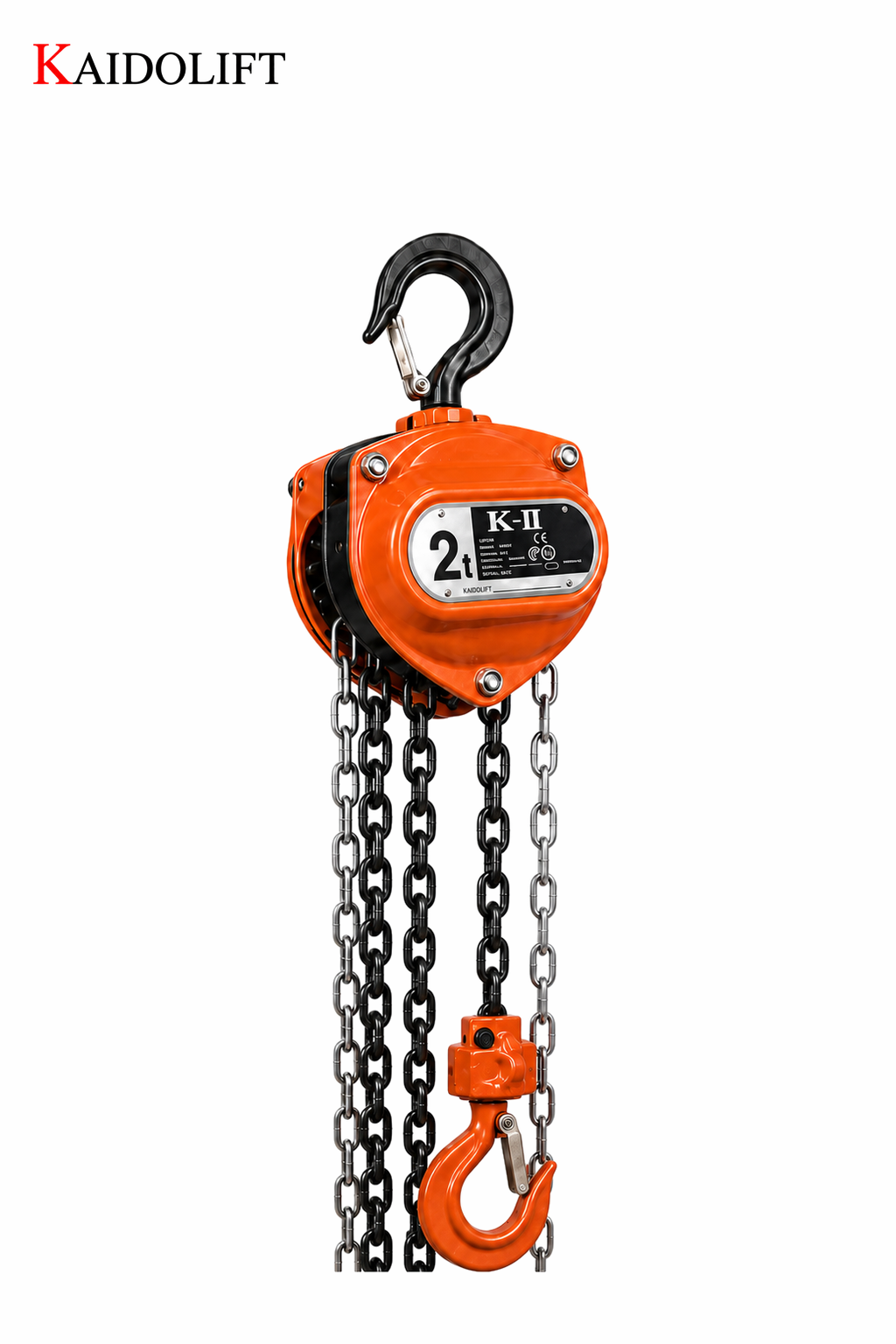

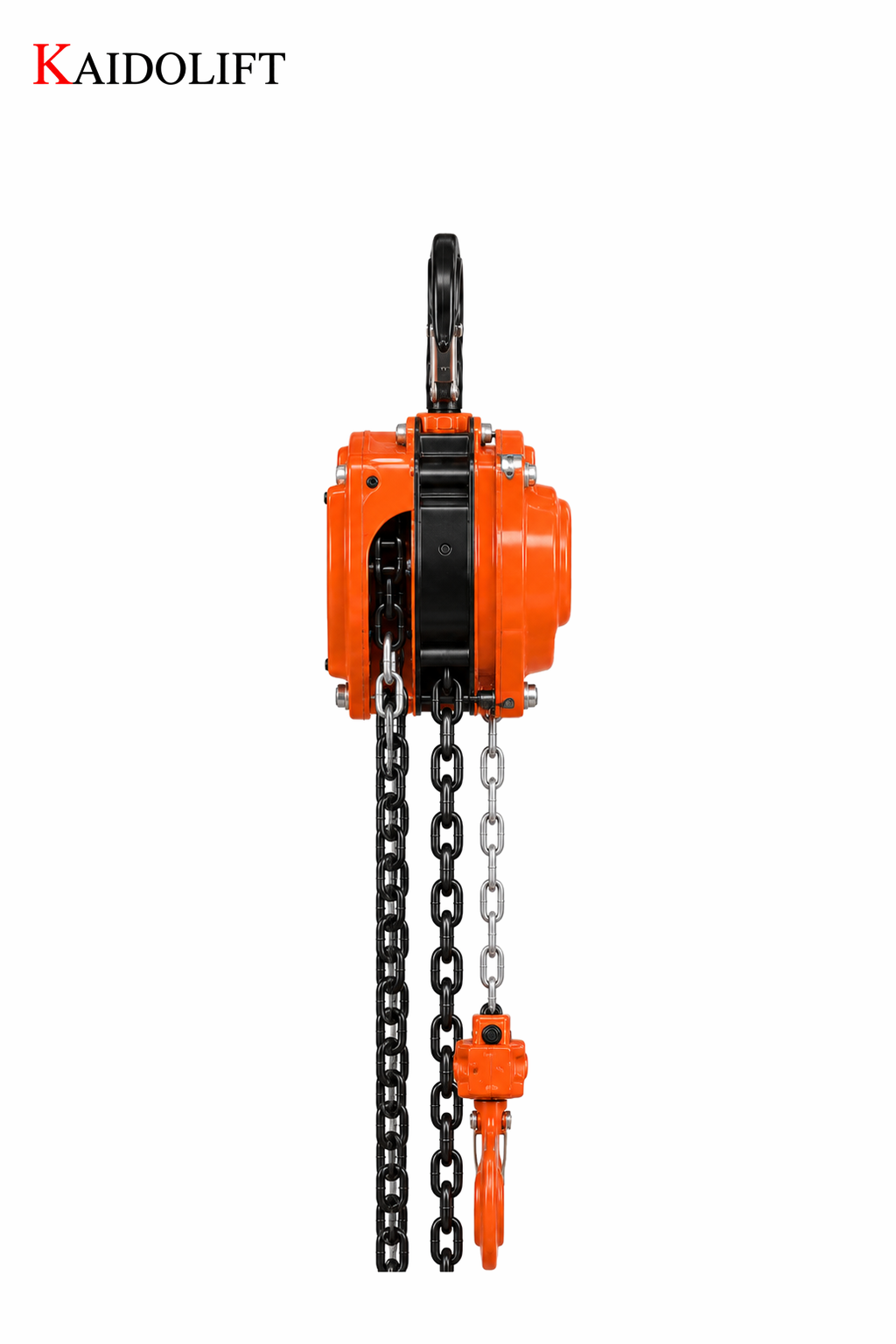

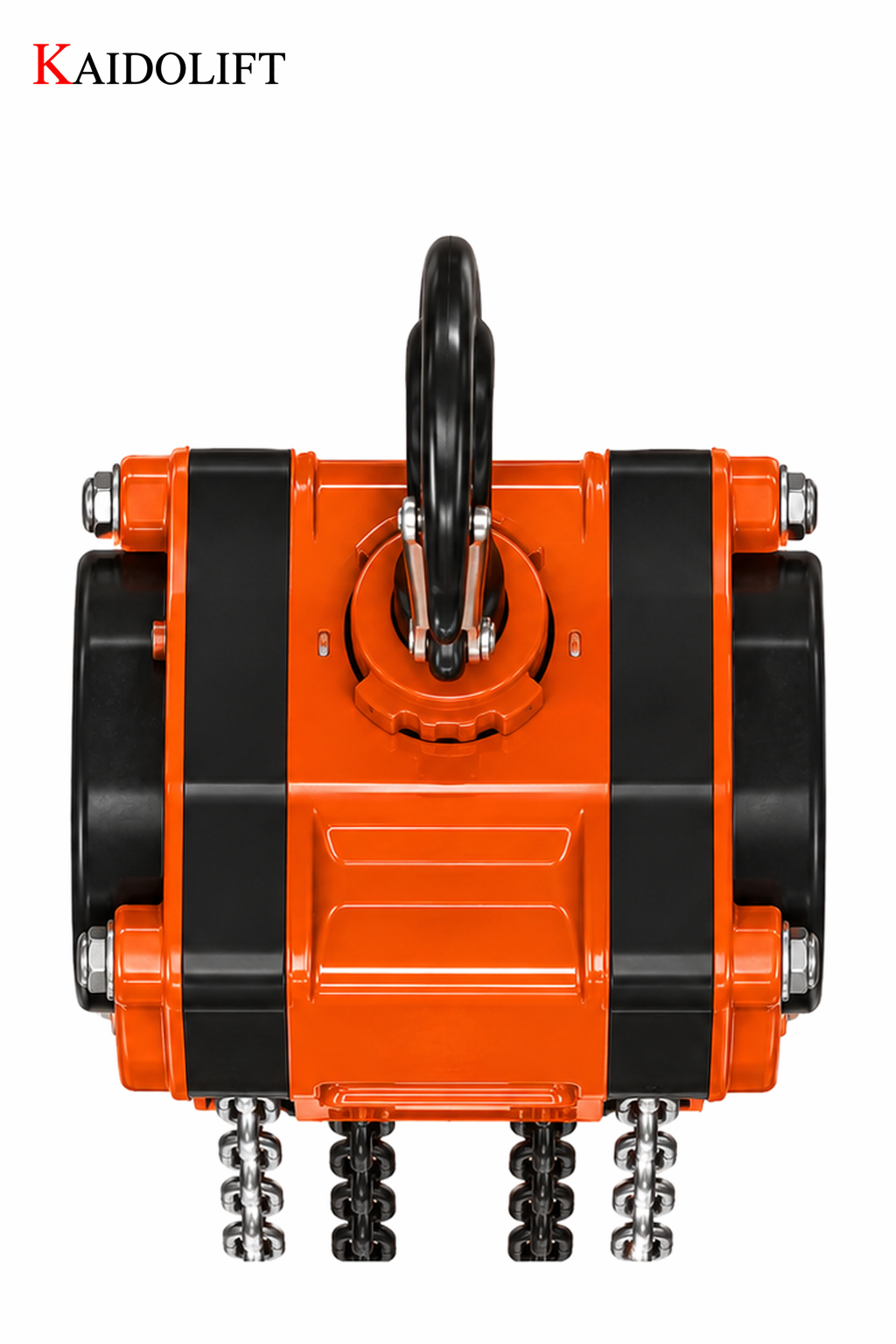

The HSZ-KII HSZ-KII Chain Block (widely specified across global industrial markets as the Japan Technology Manual Chain Hoist, and recognized in South American and Spanish-speaking industrial sectors as Polipasto de cadena tecnologia japonesa) is an advanced, ultra-low-effort manual lifting system designed for heavy industrial applications. Built upon proven Japanese mechanical transmission technology, the HSZ-KII series optimizes internal gear leverage ratios to dramatically reduce hand pull resistance during full-load operations.
Engineered to handle extreme loads ranging from standard 0.5-ton units up to massive heavy-duty 30-ton and 50-ton industrial configurations, this Japanese style heavy duty chain block features premium grade alloy steel load chains coupled with standard zinc-plated hand chains for smooth feed and corrosion resistance. Outfitted with drop-forged, expertly heat-treated load hooks and an optional mechanical overload protection mechanism, the HSZ-KII provides consistent reliability across shipyards, steel mills, and heavy construction projects.
Advanced Mechanical Engineering & Safety Innovations
High-capacity industrial lifts require high-torque transmission efficiency combined with strict overload safety controls:
Japan Technology Low-Effort Drive: Precision-engineered internal gear trains deliver extremely low hand pull requirements (ranging from only 25 N on the 0.5T model to 41 N on the 10T model), significantly reducing operator fatigue during repetitive lifts.
Premium Alloy Load Chain & Zinc-Plated Hand Chain: Equipped with high-grade alloy steel load-bearing chains and corrosion-resistant zinc-plated hand chains, ensuring smooth passage through internal guide sheaves without jamming.
Optional Mechanical Overload Limiter: Can be factory-fitted with an optional slip-clutch load limiter at an additional cost to prevent operational misuse and safeguard the structural drive train from extreme overloads.
Drop-Forged & Heat-Treated Safety Hooks: High-tensile safety hooks undergo specialized thermal treatment to ensure ductility. Under extreme overload scenarios, the hooks stretch gradually rather than snapping, providing visual overload warnings to site crews.
Technical Specifications & Parameter Matrix
Certified mechanical parameters, headroom clearances, and shipping specifications for the HSZ-KII industrial manual chain block 0.5t to 50t lineup:
| Model | Capacity | Standard Lift | Test Load | Min. Distance Between Hooks | Chainpull to Lift Full Load | No. of Load Chain Fall Lines | Diameter of Load Chain | Net Weight | Gross Weight | Packing Measurement |
| KII 1/2 | 0.5 t | 2.5 m | 0.75 t | 285 mm | 25 N | 1 | 6.3 mm | 8.4 kg | 9.4 kg | 26 * 16 * 20 cm |
| KII 1 | 1.0 t | 2.5 m | 1.50 t | 315 mm | 33 N | 1 | 6.3 mm | 11.0 kg | 12.0 kg | 26 * 16 * 20 cm |
| KII 1 1/2 | 1.5 t | 2.5 m | 2.25 t | 340 mm | 34 N | 1 | 7.1 mm | 13.5 kg | 14.5 kg | 27 * 18 * 24 cm |
| KII 2 | 2.0 t | 3.0 m | 3.00 t | 380 mm | 34 N | 1 | 8.0 mm | 21.0 kg | 22.0 kg | 27 * 18 * 24 cm |
| KII 3 | 3.0 t | 3.0 m | 4.50 t | 475 mm | 35 N | 2 | 7.1 mm | 22.0 kg | 23.0 kg | 28 * 19 * 26 cm |
| KII 5 | 5.0 t | 3.0 m | 7.50 t | 600 mm | 39 N | 2 | 9.0 mm | 40.0 kg | 41.5 kg | 39 * 22 * 30 cm |
| KII 10 | 10.0 t | 3.5 m | 15.00 t | 700 mm | 41 N | 4 | 9.0 mm | 77.0 kg | 85.0 kg | 48 * 46 * 26 cm |
B2B Procurement Note: The HSZ-KII gear architecture allows the KII 10 model to handle a full 10-ton capacity with a hand pull force of just 41 N, providing high mechanical advantage for manual rigging tasks. Heavy-duty 30-ton and 50-ton custom configurations are available upon request for specialized heavy engineering projects.
Critical Capacity Management & Safe Rigging Dynamics
Plant engineers selecting the low hand pull effort chain hoist series must evaluate mechanical advantage ratios and load chain configurations:
Ultra-Low Hand Pull Dynamics: Through optimized internal spur gear geometry, the hand force required to lift maximum rated loads remains exceptionally low across all capacities (ranging between 25 N and 41 N), enabling single-operator manual handling on heavy loads.
Chain Fall Scaling vs. Headroom: Single-fall variants (KII 1/2, KII 1, KII 1 1/2, and KII 2) maintain minimal hook-to-hook distances from 285 mm to 380 mm. Dual-fall variants (KII 3, KII 5) and the four-fall KII 10 expand headroom requirements up to 700 mm to accommodate heavy-duty load sheaves.
Industrial Applications
Steel Mills & Heavy Metal Fabrication: Operators utilize the Japan Technology Manual Chain Hoist to handle heavy steel billets, rolled plates, and casting molds in high-temperature plant environments.
Shipbuilding & Dockyard Maintenance: Shipwrights deploy the alloy load chain block with zinc hand chain in coastal dockyards, relying on the zinc-plated chain to withstand saline atmospheric conditions.
Petrochemical Plants & Refineries: Maintenance crews utilize the Japanese style heavy duty chain block to position heavy valves, flange assemblies, and heat exchangers during scheduled plant turnarounds.
Infrastructure Construction & Power Plants: Construction teams deploy the HSZ-KII Chain Block to position turbine components, transformers, and structural steel beams on heavy power generation construction sites.
