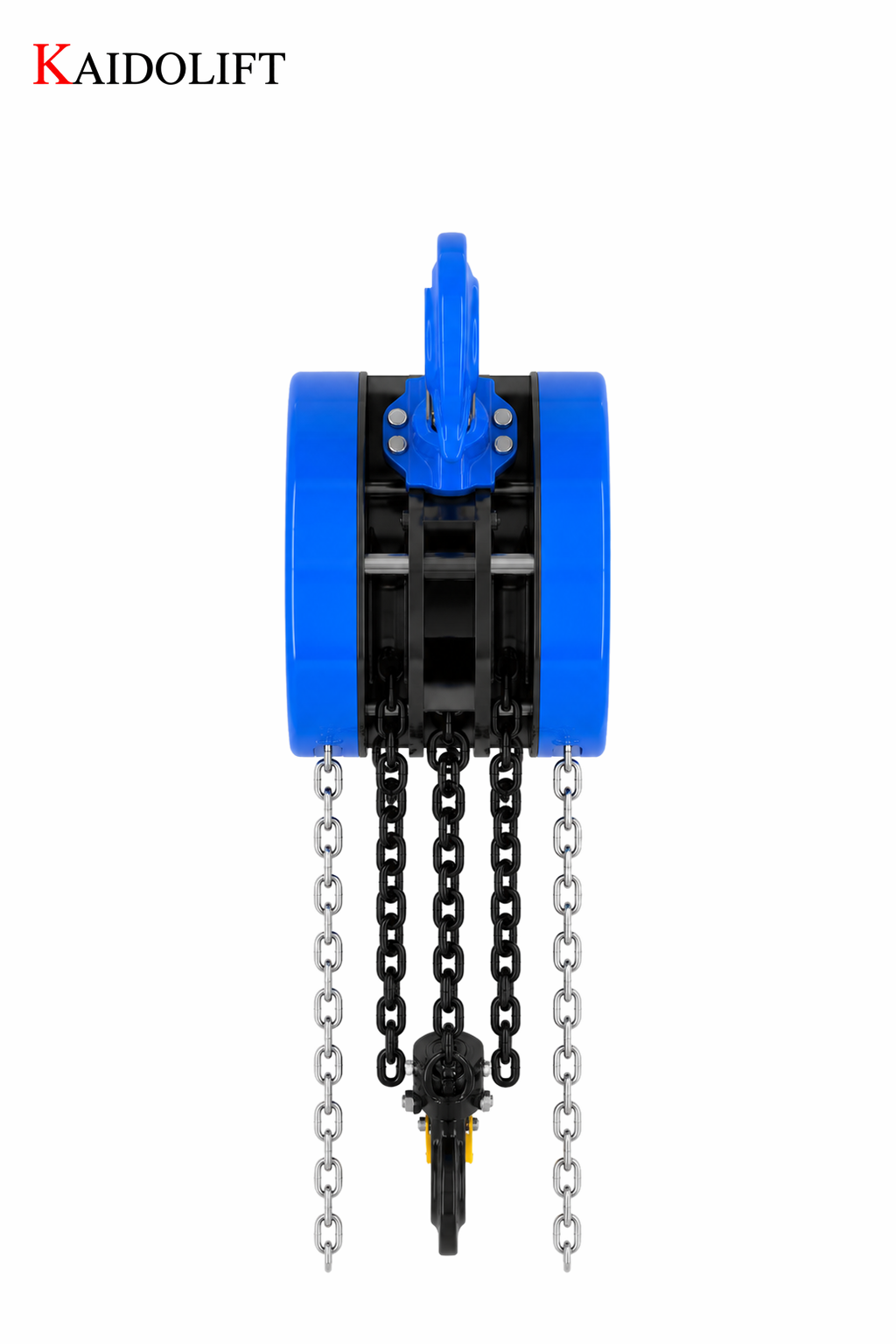

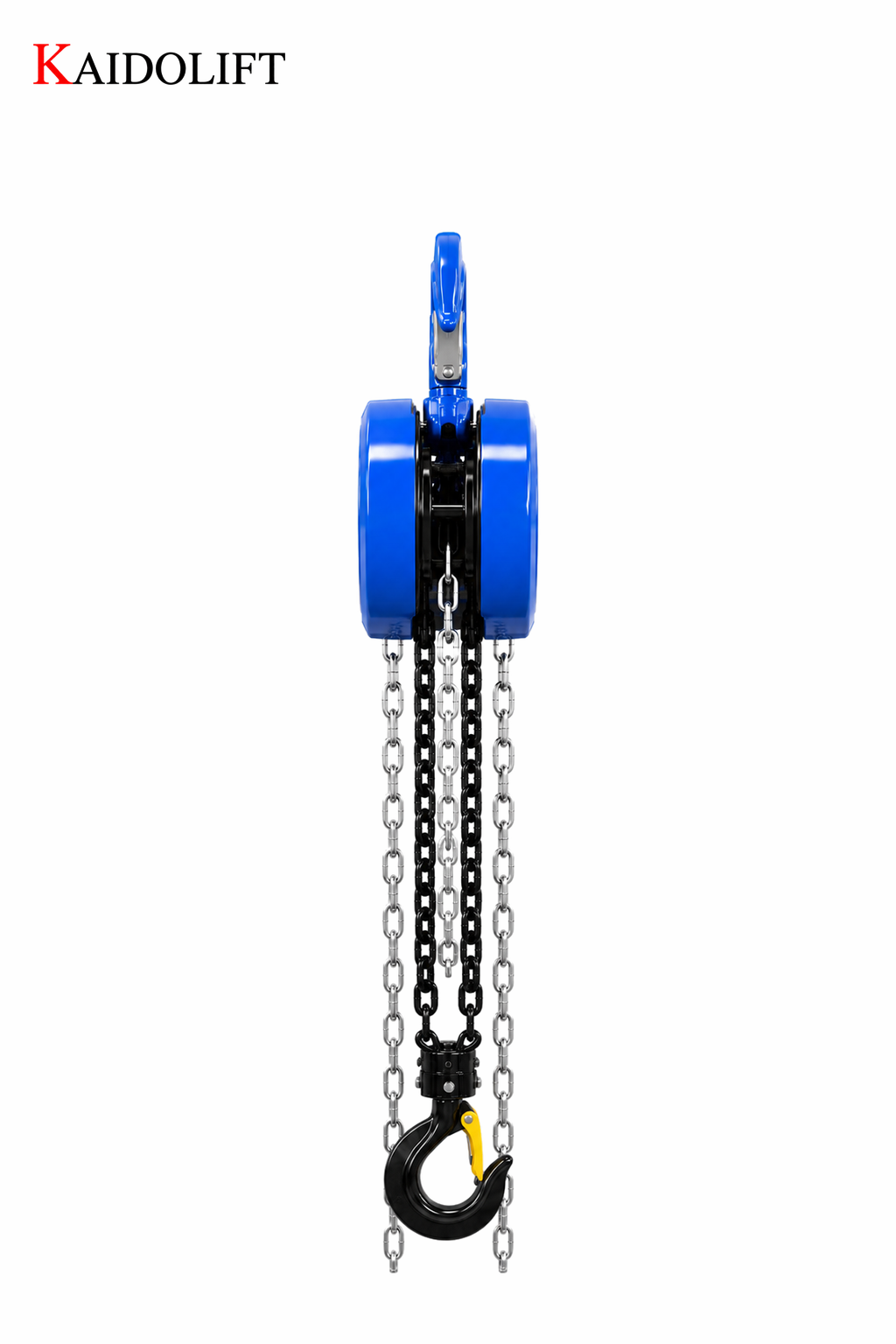

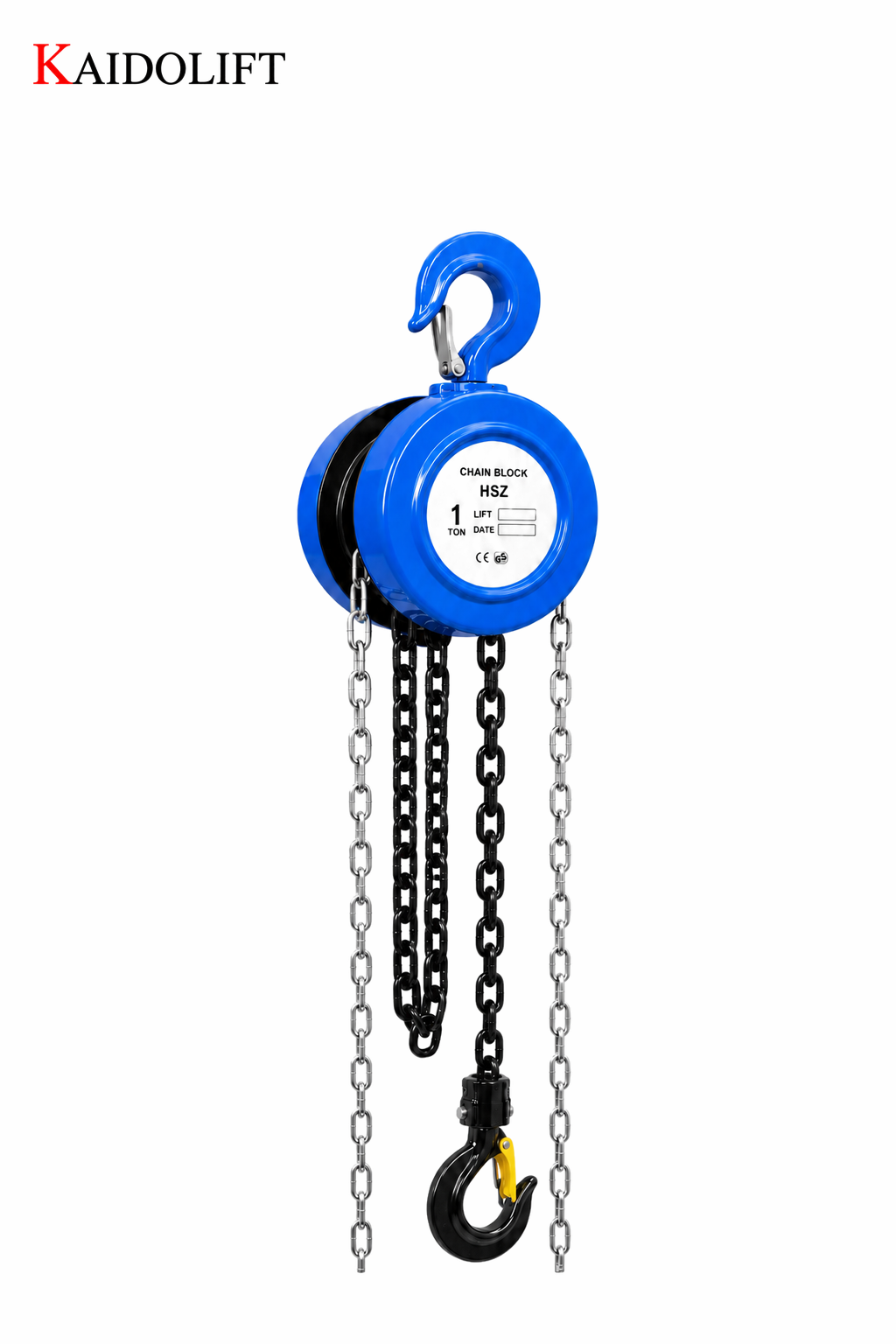

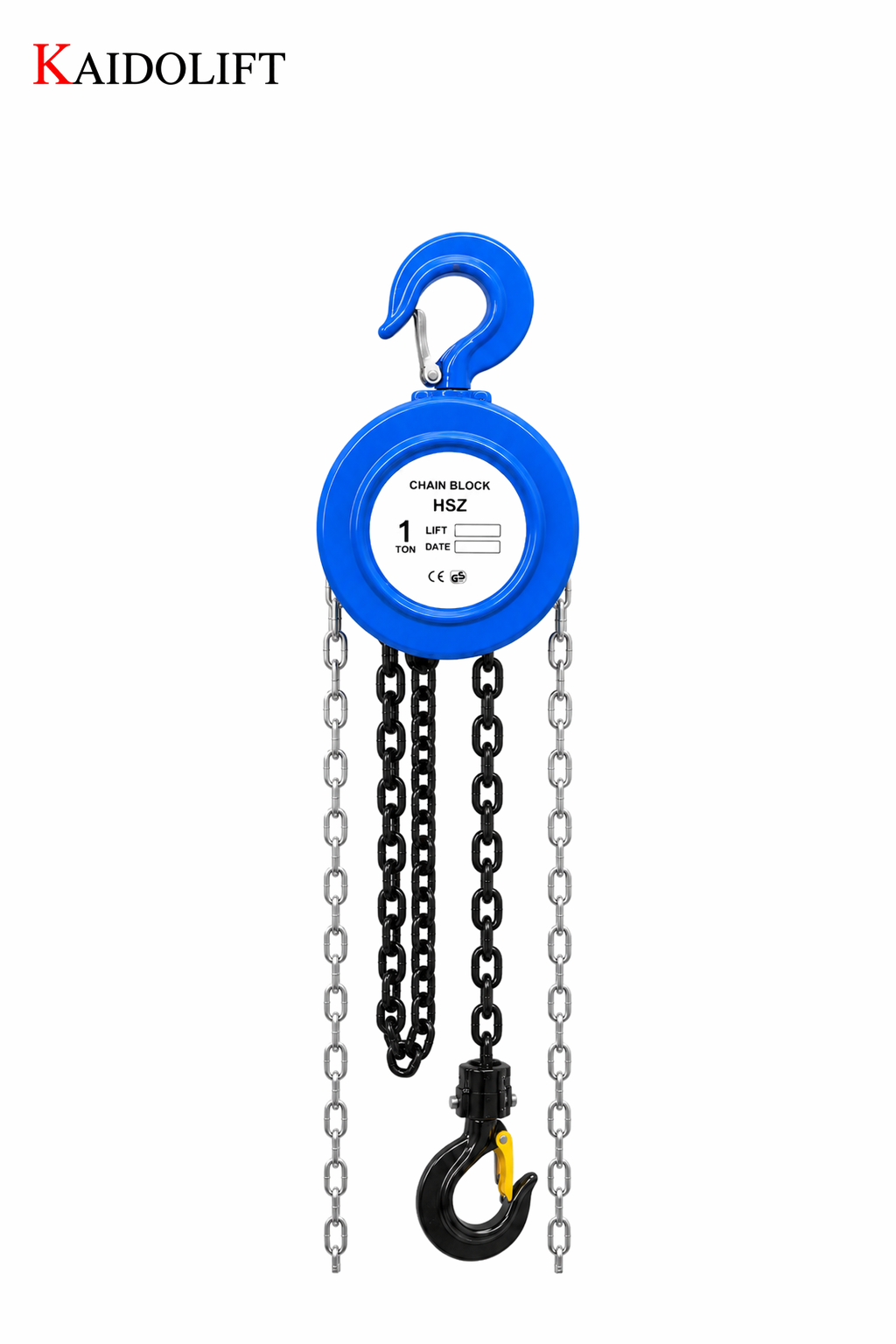

HSZ Chain Block Manual Chain Hoist

Description

Product Overview

The HSZ HSZ Chain Block (known throughout heavy industrial sectors as the Manual Chain Hoist, and widely cataloged in South American logistics and mining directories as Polipasto manual de cadena) is an industry-proven, round-type manual lifting device designed for maximum portability and mechanical efficiency. Operating without any electrical power requirements, this highly versatile hoist allows operators to execute heavy-duty lifting, tensioning, and positioning tasks in remote construction areas, confined maintenance spaces, and demanding manufacturing environments.

Featuring a classic round housing, this premium alloy steel load chain lifter is engineered to combine a compact structural envelope with high structural strength. It integrates a premium alloy steel load chain and a zinc-plated hand chain as standard to prevent friction locking and combat outdoor atmospheric corrosion. By utilizing high-efficiency internal gearing, this manual system lowers the required hand chain pulling force, enabling operators to handle massive loads with smooth, continuous control.

Advanced Mechanical Design & Safety Features

Executing manual lifting under heavy structural loads demands robust engineering, reliable braking, and durable connection points:

• Low-Effort Geared Drive Mechanism: Engineered with precision-matched spur gears that optimize mechanical advantage, delivering a low effort manual hoist tackle system that minimizes operator fatigue during high-frequency lifts.

• Expertly Heat-Treated Rigging Hooks: Drop-forged from high-grade carbon steel, both the top and bottom hooks undergo expert thermal heat treatment to provide outstanding yield strength and long-wearing durability. Under extreme overload, the expertly heat treated rigging hooks are designed to yield slowly rather than fracture instantly, providing a clear visual safety warning to on-site personnel.

• Durable Zinc-Plated Hand Chain: Equipped with a standard zinc-plated hand chain that resists aggressive surface oxidation and runs smoothly through the guide wheel without binding or catching.

• Heavy-Duty Protective Round Enclosure: The high-strength steel outer shell guards the internal load brake and gear assembly from flying debris, dirt, and direct impacts, ensuring reliable braking action under harsh field conditions.

Technical Specifications & Parameter Matrix

Certified dimensional boundaries and mechanical performance ratings for the complete HSZ heavy duty block and tackle 0.5t-10t product line:

B2B Procurement Note: While standard operational capacities span from 0.5t to 10t, heavy-duty configurations up to 20t, 30t, and 50t are available upon request for large-scale maritime construction or heavy industrial assembly layouts.

Critical Capacity Management & Safe Lifting Dynamics

Industrial operators implementing the heavy duty block and tackle 0.5t-10t series must closely monitor structural line configurations and overhead spatial clearances:

• Load Chain Fall Lines vs. Hook-to-Hook Distance: As lifting capacity increases from the light-duty HSZ-1/2 up to the high-capacity HSZ-10, the internal reeving structure adjusts to distribute forces. While the 0.5t, 1t, and 1.5t models use a quick single chain fall line, the 2t, 3t, and 5t models utilize dual chain fall lines, and the heavy-duty HSZ-10 uses four chain fall lines. This multiple-reeving design scales down the required pulling force, but it increases the minimum distance between hooks (headroom) up to 700 mm, which must be accounted for in low-headroom installations.

• Deadweight to Structural Load Ratio: When arranging overhead suspension rigs, the deadweight of the hoist body itself affects setup times and structural calculations. An entry-level HSZ-1/2 is highly portable with a net weight of only 8.4 kg, allowing a single technician to transport and hook it onto a jib crane. In contrast, the HSZ-10 has a net weight of 77.0 kg, requiring a stable mechanical rig or secondary hoisting support simply to position and lock the top hook in place before operation.

Industrial Applications

• Remote Construction & Structural Framing: Construction crews utilize the portable HSZ Chain Block to lift and position steel columns, pipes, and concrete forms in rural regions or utility installations where electricity is unavailable.

• Machine Shops & Overhead Maintenance: Industrial mechanics use the compact headroom of the Manual Chain Hoist to safely remove heavy gearboxes, electric motors, and compressor units from cramped manufacturing bays.

• Mining Operations & Underground Utilities: Underground mining operations across Chile, Peru, and Mexico deploy the rugged low effort manual hoist tackle series to transport heavy drills and secure structural roof supports, relying on the sealed gear enclosure to block abrasive rock dust.

• Shipyards & Heavy Cargo Rigging: Ship repair yards employ high-capacity HSZ-5 and HSZ-10 blocks to pull, align, and secure heavy steel hull plates and machinery foundations during ship-fitting and dry-dock maintenance tasks.
