Webbing Sling EB (Eslinga Plana) | 1T to 30T Flat Lifting Sling

Product Overview

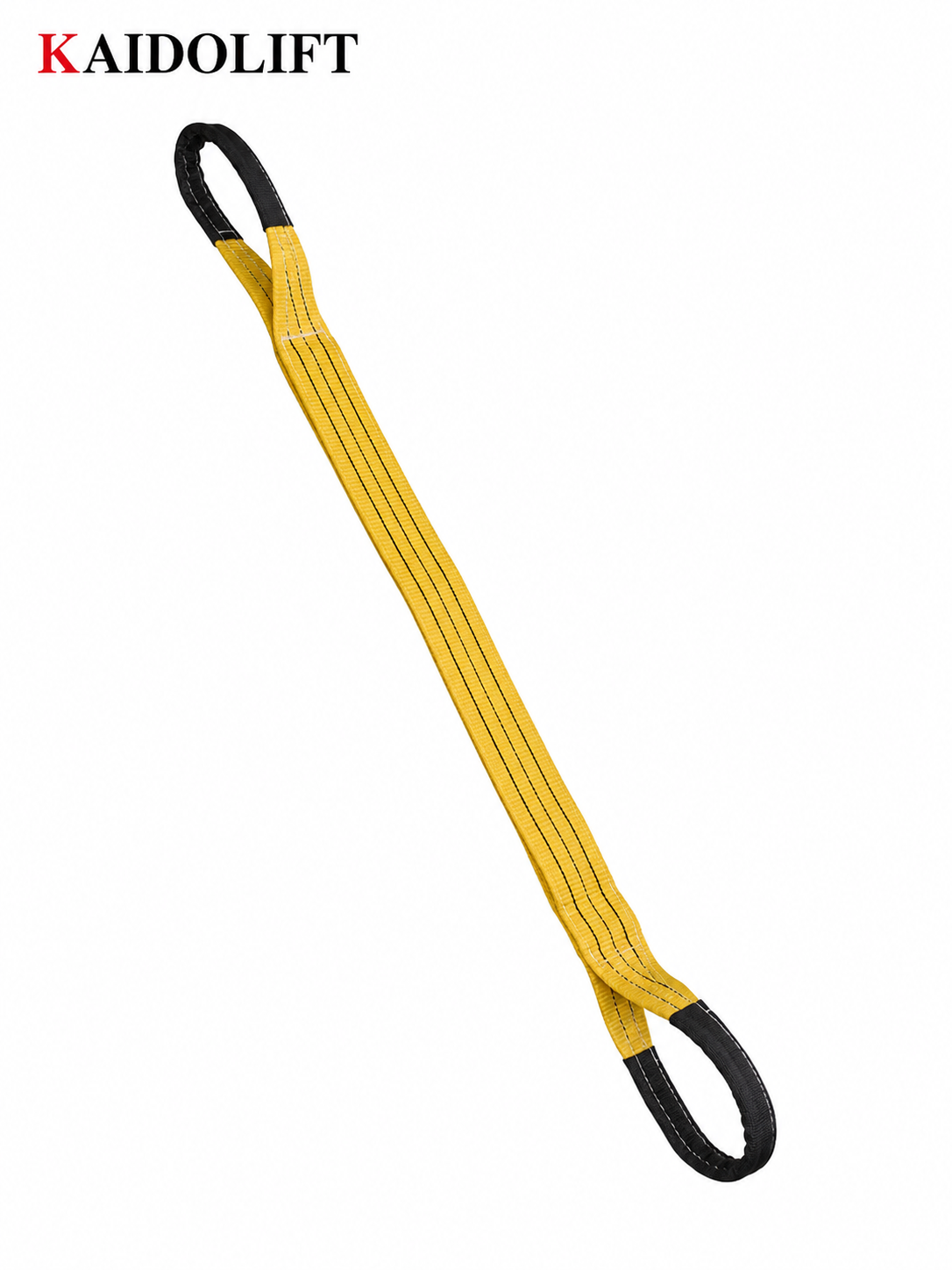

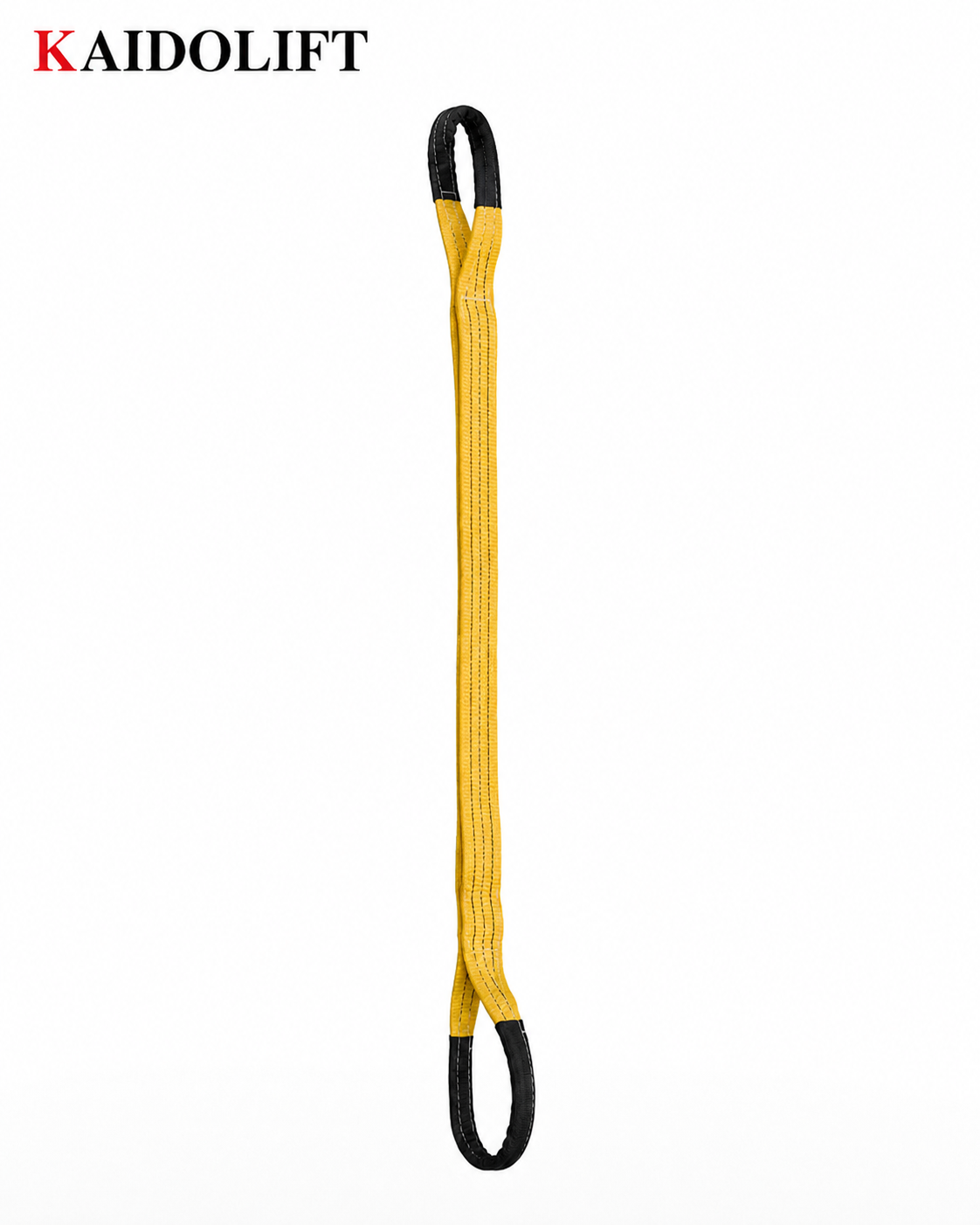

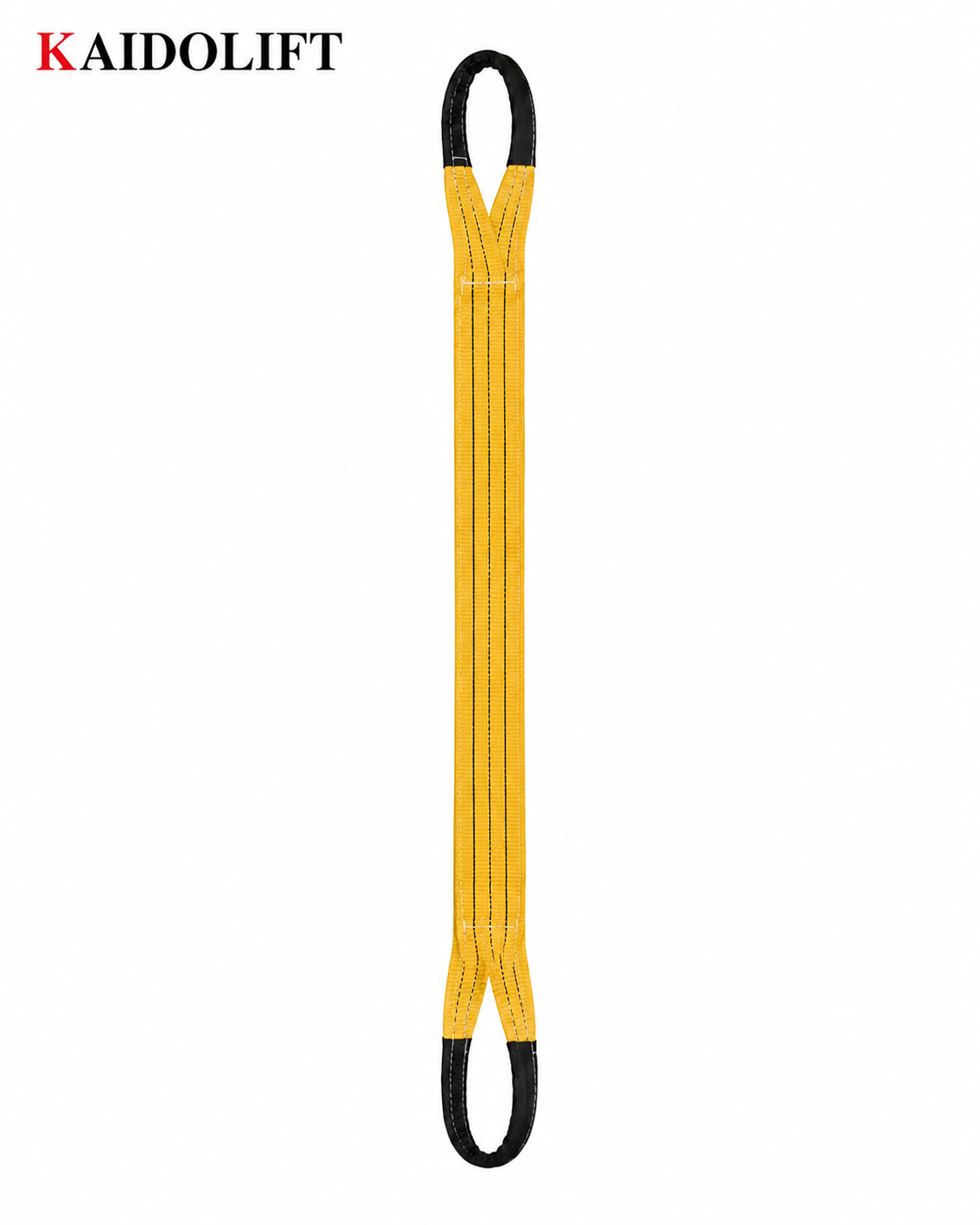

The EB Webbing Sling (known widely across global B2B supply chains as the Flat Lifting Sling, and regionally in Latin America as Eslinga plana) is a premium synthetic material handling solution engineered for high-tonnage industrial rigging operations. Manufactured strictly in compliance with the EC Directive 2006/42/EC, this high-performance EB flat webbing slings lineup features a broad and smooth structural surface that provides excellent load-bearing stability while eliminating point-pressure damage on fragile cargo.

Woven from 100% high-tensile polyester industrial filaments (PES), these heavy-duty lifting profiles can be ordered in either single-layer or double-layer configurations depending on the required flexibility and structural thickness. It serves as a highly efficient, lightweight, and non-sparking alternative to heavy steel wire ropes or metal chains across major commercial sectors throughout Latin America.

Technical Design & International Standards of EB Webbing Sling

The operational safety and reliability of the EB Flat Lifting Sling are driven by meticulous adherence to strict European and international manufacturing frameworks:

• DIN-EN 1492-1 Certification: Every single DIN-EN 1492-1 lifting sling is manufactured to match standard international color codes and webbing widths, allowing operators to instantly verify structural load thresholds at a glance on a busy jobsite.

• Visual Tonnage Coding Lines: Along with the standard base fabric color, each sling features woven black capacity stripes running along its length. Each individual black line strictly represents 1 Ton of working load limit (WLL), providing an explicit layout fail-safe during crane rigging.

• Superior Mechanical Protection: The broad, smooth surface of this flat hoisting sling ensures tight friction contact without slipping. When paired with customized protective sleeves, the webbing effectively resists edge friction and prevents slicing or structural damage from sharp components.

• Thermal Endurance Bandwidth: Engineered to execute lifting maneuvers under severe weather changes, maintaining 100% tensile capability within an operational temperature range of -40°C to 100°C.

Technical Specifications & Parameter Matrix

Certified engineering data for the EB Webbing Sling portfolio, compiled from the official factory production logs and multi-layer structural configurations:

B2B Procurement Note: Heavy-duty custom profiles such as big size 16t, 20t, and 30t flat slings are actively kept in factory stock to supply large-scale infrastructure projects across LATAM ports and mining centers.

Critical Rigging Geometry & Multi-Angle Load Scaling

Rigging and crane balancing crews deploying the polyester flat sling 1T-30T matrix must strictly calculate geometry load changes derived from the official DIN-EN 1492-1 angular derating standards:

• Single Sling Vector Dynamics: When using a single 6:1 safety factor flat sling rated at WLL 5T (Red), a vertical Straight lift maintains a 100% capacity threshold of 5,000 kg. Transitioning to a Choked lift layout alters stress concentrations, reducing the safe threshold to 4,000 kg (80%). Conversely, executing a tight parallel $0^{\circ}-7^{\circ}$ Basket lift safely doubles the capacity to 10,000 kg (200%).

• Angular Multi-Leg Multipliers: When using a pair of identical slings at a $45^{\circ}$ lifting angle, straight multi-leg rigging allows a safe combined workload threshold of 7,000 kg for the 5T series, while a choked dual setup scales safely to 5,600 kg under sudden tension.

Industrial Applications (Campos de Aplicación)

• Warehouse & Logistics Terminals: This lightweight Flat Lifting Sling is essential for high-turnover cargo docks. Floor personnel use the 2T (Green) and 3T (Yellow) variants to quickly weave under packed freight blocks, enabling smooth overhead crane loading without scratching or denting finished commercial machinery cases.

• Marine & Port Operations (Sector Marítimo y Portuario): Constructed from high-purity PES, this synthetic Webbing Sling is entirely immune to salt air degradation, oil contact, and rotting. Port crews deploy heavy-duty 10T to 30T orange models to balance shipping containers, secure ship deck cargo bindings, and lift commercial vessel parts during dry-dock servicing.

• Construction & Building Infrastructure (Construcción e Infraestructura): Highly favored on high-rise architectural projects for moving precast concrete segments, finished marble panels, and fragile glass frameworks. The wide surface area of this hoisting sling balances long architectural pieces smoothly, avoiding the dangerous shifts caused by narrow steel wires.

• Steel & Metallurgy Plants: Perfect for transporting delicate copper piping configurations, cold-rolled sheet steel coils, and polished metal bars. This non-conductive, non-sparking Flat Lifting Sling holds smooth cylinders tightly without slipping, keeping heavy materials safe without damaging outer surface treatments.
